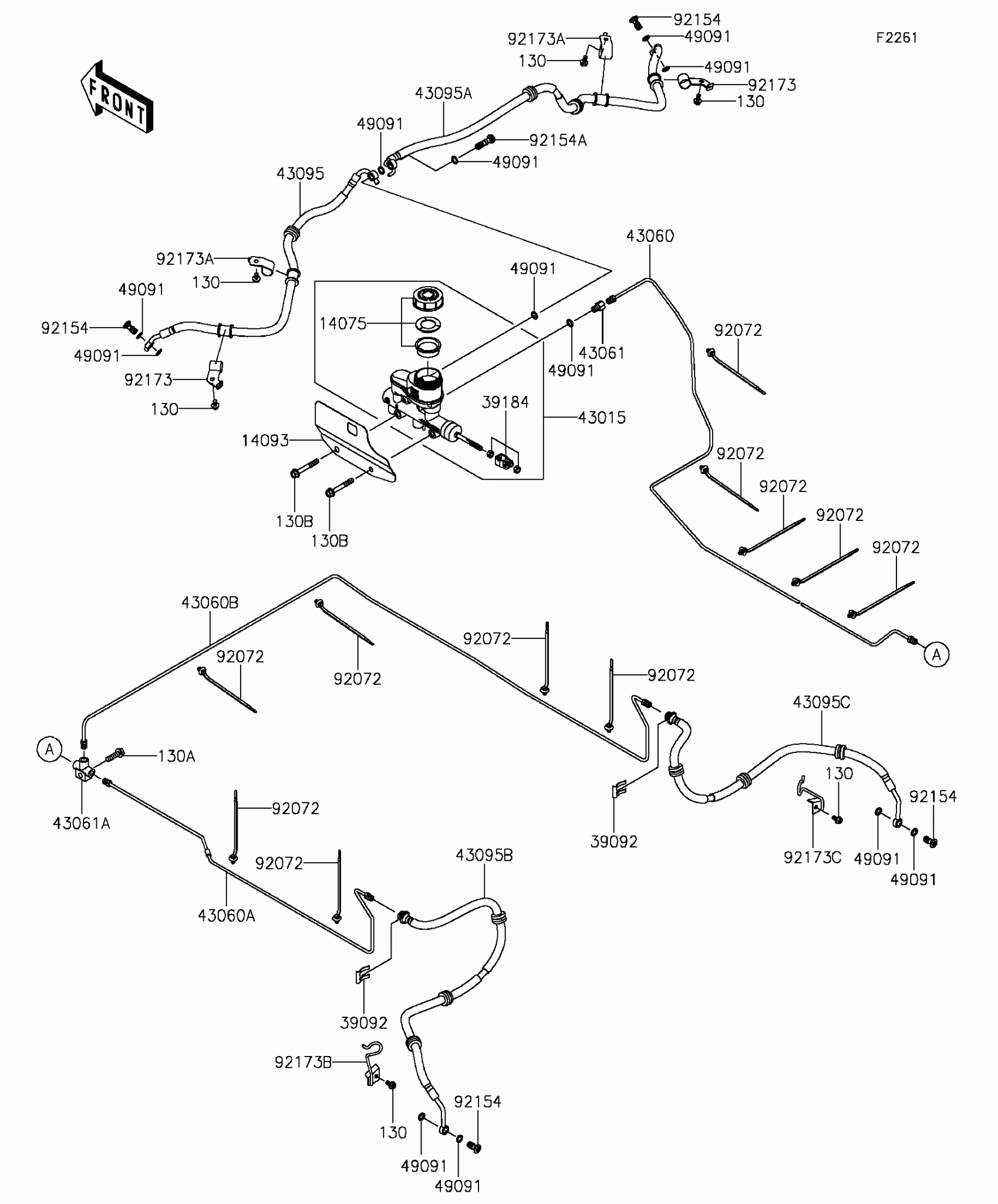

Kawasaki MULE PRO-DX™ EPS LE DIESEL Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X30

130BA0830

$1.98

130B

BOLT-FLANGED,8X55

130BA0855

$2.25

14075

CAP-ASSY

14075-0038

$47.48

14093

COVER,M/C BODY

14093-0044

$8.58

39092

PIN-HAIR

39092-1052

$7.95

39184

BRACKET-ASSY

39184-0031

$22.81

43015

CYLINDER-ASSY-MASTER

43015-0595

$205.03

43060

PIPE-BRAKE

43060-0317

$43.66

43060A

PIPE-BRAKE,LH

43060-0318

$28.36

43060B

PIPE-BRAKE,RH

43060-0319

$41.06

43061

JOINT-BRAKE,M/C

43061-0302

$33.24

43061A

JOINT-BRAKE

43061-1063

$47.61

43095

HOSE-BRAKE,661MM

43095-0807

$54.68

43095A

HOSE-BRAKE,1011MM

43095-0808

$60.60

43095B

HOSE-BRAKE,847MM

43095-0809

$48.11

43095C

HOSE-BRAKE,767MM

43095-0810

$46.79

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92154

BOLT,HEXALOBULAR,10X21

92154-1328

$8.08

92154A

BOLT,OIL,10X34.5

92154-1398

$7.60

92173

CLAMP

92173-1215

$3.85

92173A

CLAMP

92173-1216

$3.57

92173B

CLAMP

92173-1217

$8.71

92173C

CLAMP

92173-1218

$8.71
