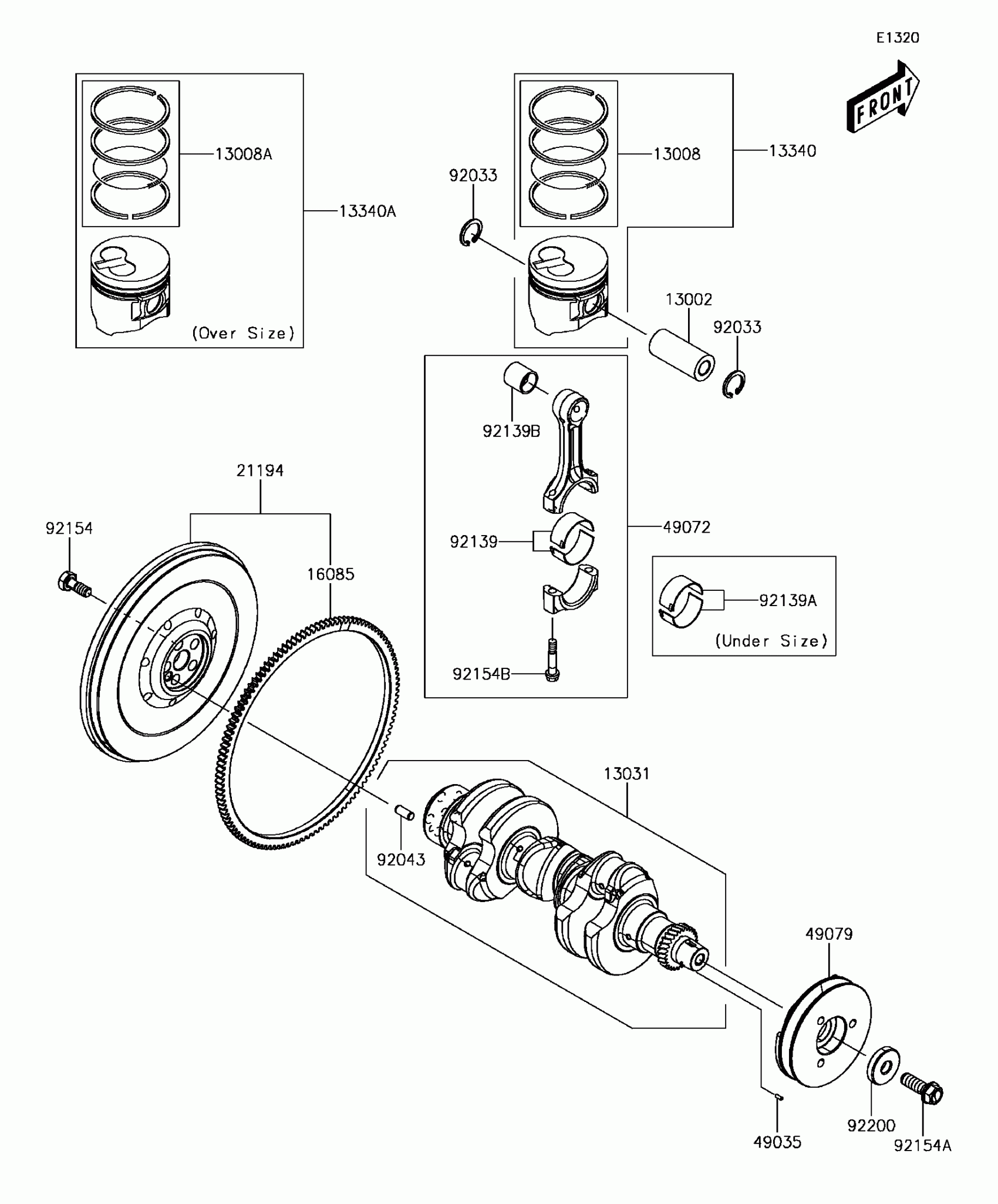

Kawasaki MULE PRO-DX™ EPS LE DIESEL Crankshaft/Piston(s) Diagram

Description

Price

13002

PIN-PISTON

13002-0047

$65.81

13008

RING-SET-PISTON,STD

13008-0563

$90.94

13008A

RING-SET-PISTON,O/S,0.25

13008-0566

Unavailable

13031

CRANKSHAFT-COMP

13031-0841

$2,102.01

13340

PISTON-ASSY-ENGINE,STD

13340-0004

$338.80

13340A

PISTON-ASSY-ENGINE,O/S,0.25

13340-0005

Unavailable

16085

GEAR,RING

16085-0655

$212.73

21194

FLYWHEEL-COMP

21194-0037

$870.89

49035

PIN-SPRING

49035-0017

$2.03

49072

ROD-COMP-CONNECTING

49072-0001

$379.91

49079

PULLEY-BELT

49079-0026

$273.08

92033

RING-SNAP

92033-0774

$2.47

92043

PIN,8X16

92043-0886

$3.35

92139

BUSHING,STD

92139-0860

$40.62

92139A

BUSHING,U/S,0.25

92139-0864

Unavailable

92139B

BUSHING,PISTON PIN

92139-0865

$13.65

92154

BOLT,FLYWHEEL

92154-1992

$5.00

92154A

BOLT,FLANGED

92154-1993

$11.30

92154B

BOLT,CONNECTING ROD

92154-1994

$11.39

92200

WASHER

92200-1807

$7.89
