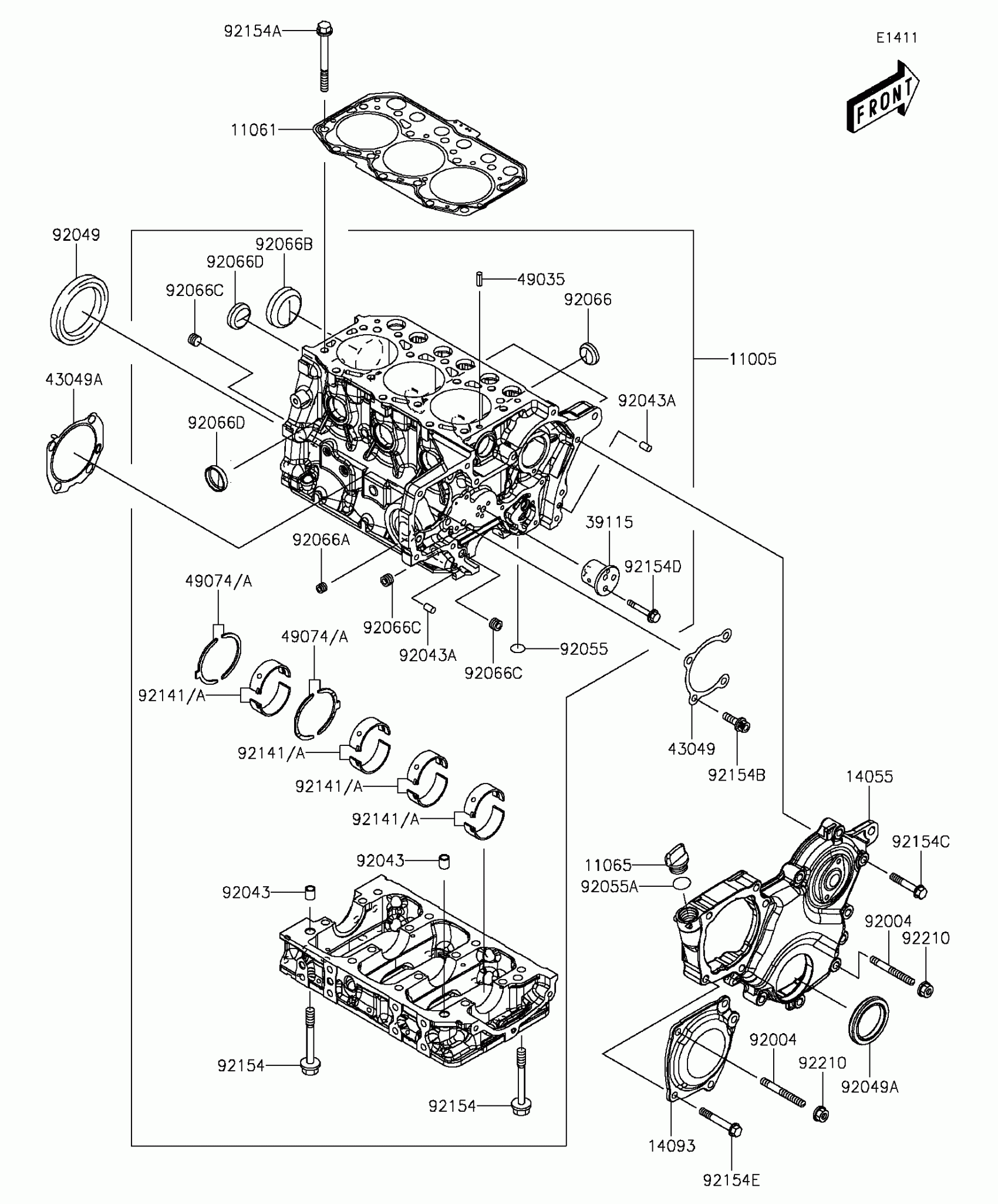

Kawasaki MULE PRO-DX™ EPS LE DIESEL Crankcase Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-0664

$3,258.21

11061

GASKET,HEAD

11061-1192

$97.38

11065

CAP

11065-0936

$3.32

14055

CASE-GEAR

14055-0622

$119.12

14093

COVER

14093-0439

$26.45

39115

SHAFT-IDLER

39115-0025

$47.24

43049

PACKING

43049-0035

$3.95

43049A

PACKING

43049-0036

$7.92

49035

PIN-SPRING

49035-0016

$2.49

49074

PLATE-THRUST

49074-0003

$74.82

49074A

PLATE-THRUST,O/S,0.25

49074-0005

Unavailable

92004

STUD,8X60

92004-0744

$6.41

92043

PIN,KNOCK

92043-0883

$13.55

92043A

PIN,6X10

92043-0884

$5.15

92049

SEAL-OIL

92049-0787

$39.46

92049A

SEAL-OIL

92049-0788

$32.34

92055

RING-O

92055-0854

$3.35

92055A

RING-O

92055-0855

$2.92

92066

PLUG

92066-0846

$2.47

92066A

PLUG

92066-0847

$7.54

92066B

PLUG

92066-0849

$39.10

92066C

PLUG

92066-0850

$5.10

92066D

PLUG

92066-0860

$17.25

92141

BEARING-PLANE,STD

92141-0004

$73.07

92141A

BEARING-PLANE,U/S,0.25

92141-0005

Unavailable

92154

BOLT,FLANGED

92154-1981

$4.41

92154A

BOLT,FLANGED

92154-1982

$6.75

92154B

BOLT,SOCKET

92154-1983

$2.49

92154C

BOLT,FLANGED,8X35

92154-1984

$2.92

92154D

BOLT,FLANGED,6X40

92154-1995

$2.49

92154E

BOLT,FLANGED,8X45

92154-2000

$2.92

92210

NUT,8MM

92210-1473

$1.71
