Converter Cover

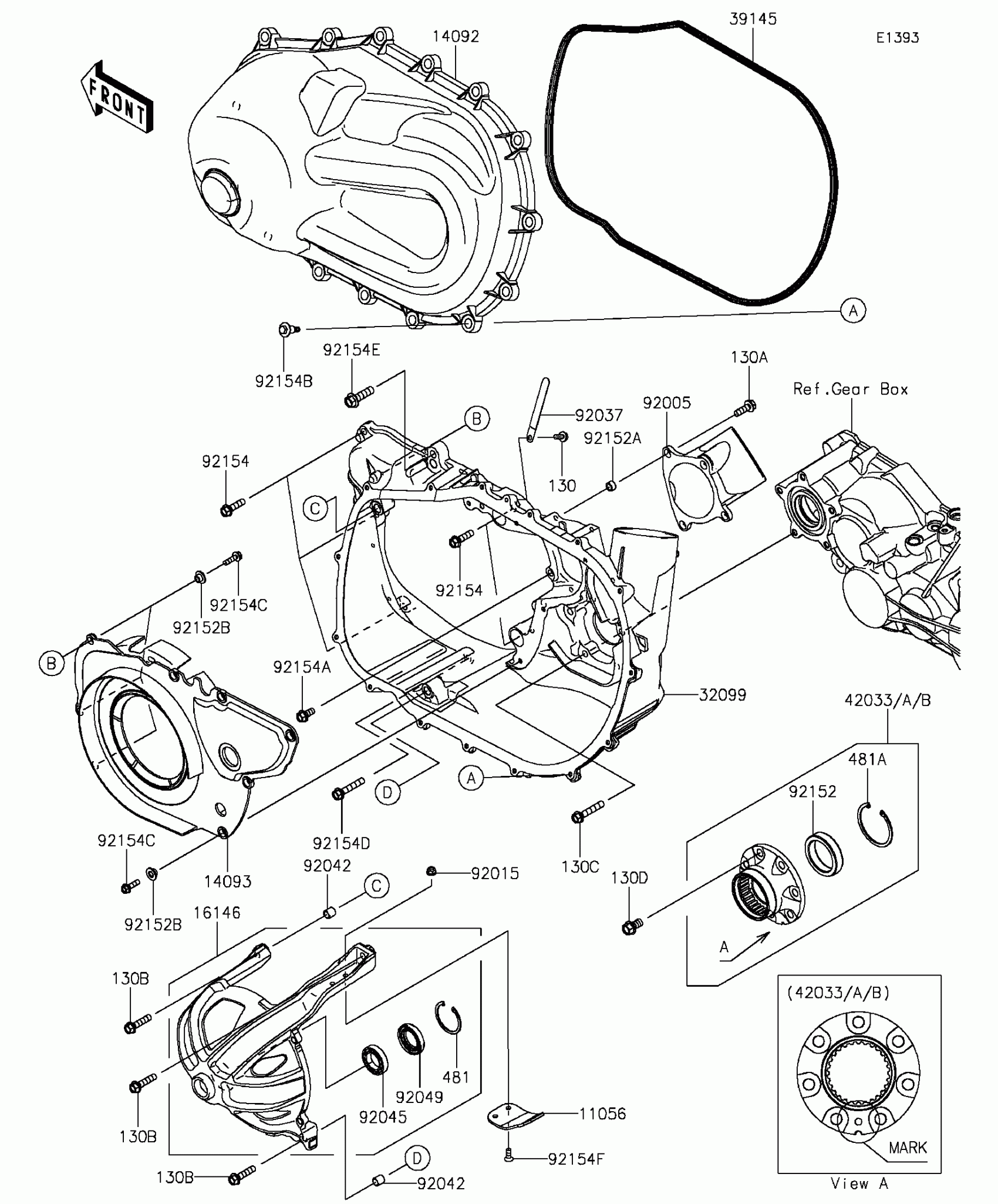

Kawasaki MULE PRO-DX™ EPS LE DIESEL Converter Cover Diagram
#
Description
Price
11056
BRACKET,CVT BELT GUIDE
11056-7883
$8.20
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,8X25
130BA0825
$2.95
130B
BOLT-FLANGED,8X35
130BA0835
$1.46
130C
BOLT-FLANGED,8X45
130BA0845
$1.61
130D
BOLT-FLANGED,10X18
130CA1018
$2.49
14092
COVER,CVT
14092-1202
$165.49
14093
COVER
14093-0302
$160.58
16146
COVER-ASSY
16146-0791
$111.97
32099
CASE,CVT
32099-0771
$522.01
39145
TRIM-SEAL
39145-0047
$40.17
42033
COUPLING-ASSY,B MARK,WHITE
42033-0582
$127.63
42033A
COUPLING-ASSY,A MARK,BLUE
42033-0583
$127.82
42033B
COUPLING-ASSY,C MARK,YELLOW
42033-0584
$127.82
481
CIRCLIP,45MM
481J4500
$2.06
481A
CIRCLIP
481J6200
$11.39
92005
FITTING,INTAKE
92005-0762
$8.35
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92037
CLAMP
92037-1993
$5.52
92042
PIN,DOWEL,12X14
92042-031
$6.57
92045
BEARING-BALL,#6905
92045-036
$27.88
92049
SEAL-OIL,HTC 28X45X8
92049-0767
$12.60
92152
COLLAR
92152-1822
$57.20
92152A
COLLAR,8.8X12.3X6.9
92152-1853
$3.63
92152B
COLLAR
92152-1931
$2.00
92154
BOLT,FLANGED,8X30
92154-0850
$2.67
92154A
BOLT,FLANGED,8X18
92154-1386
$1.71
92154B
BOLT,CVT COVER
92154-1522
$3.26
92154C
BOLT,FLANGED,6X22
92154-1525
$1.71
92154D
BOLT,FLANGED,8X45
92154-1526
$2.00
92154E
BOLT,FLANGED,10X35
92154-1744
$4.96
92154F
BOLT,6X16
92154-2147
$1.71
