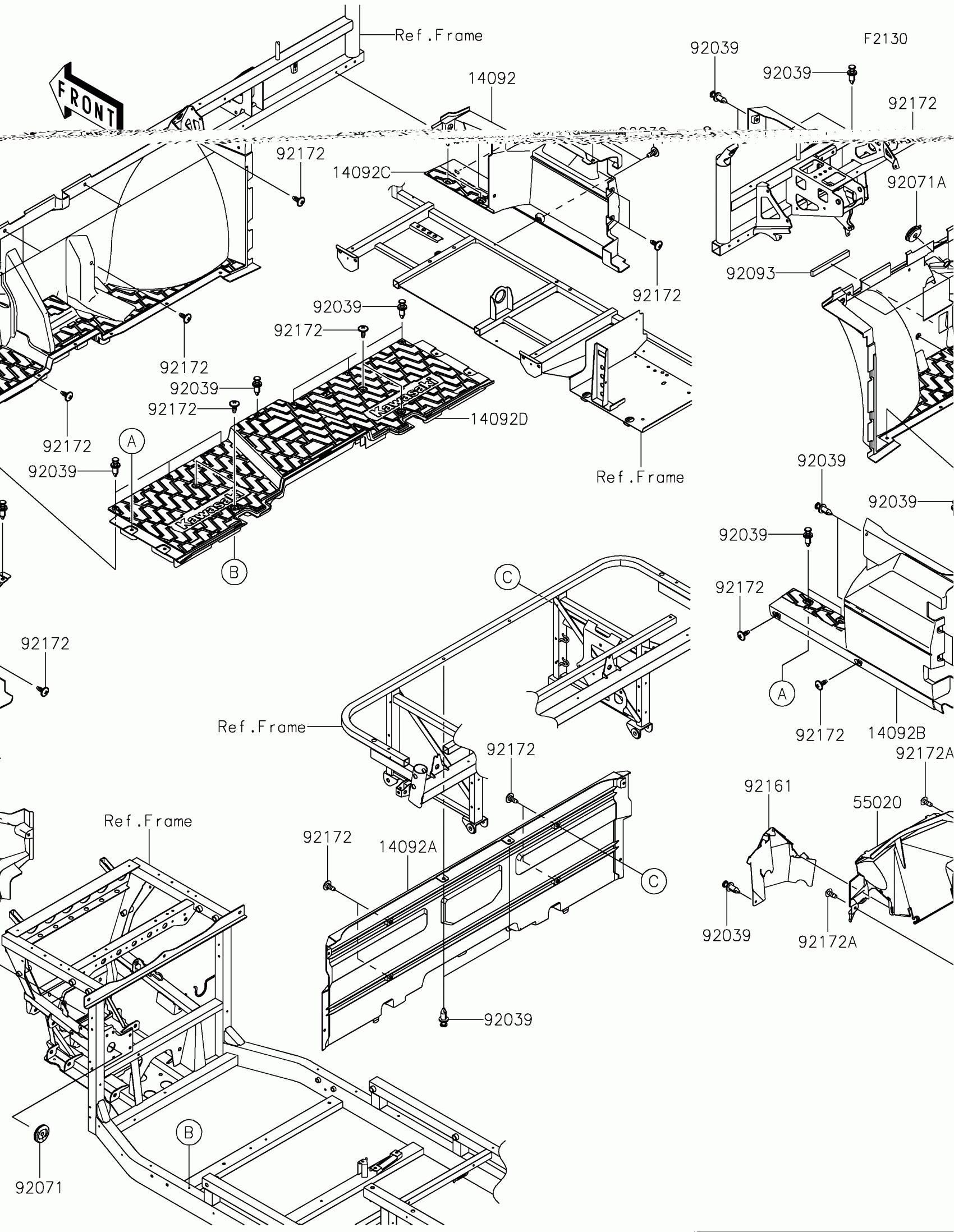

Kawasaki MULE PRO-DX™ EPS Frame Fittings(Front) Diagram

Description

Price

13272

PLATE,FR FLOOR,LH

13272-7270

$43.85

13272A

PLATE,FR FLOOR,MID,FR

13272-7271

$43.85

13272B

PLATE,FR FLOOR,RH

13272-7272

$43.85

13272C

PLATE,FR FLOOR,MID,RR

13272-7273

$18.09

13272D

PLATE,DASH,LWR,LH

13272-7275

$18.09

13272E

PLATE,DASH,LWR,MID

13272-7276

$18.09

13272F

PLATE,DASH,LWR,RH

13272-7277

$18.09

14092

COVER,FR FLOOR

14092-1184

$240.56

14092A

COVER,FR SEAT

14092-1185

$113.14

14092B

COVER,SIDE,LH,FR

14092-1188

$87.05

14092C

COVER,SIDE,RH,FR

14092-1189

$87.05

14092D

COVER,FLOOR,BOTTOM

14092-1196

$229.87

55020

GUARD

55020-0961

$41.38

92039

RIVET

92039-0776

$1.19

92071

GROMMET,9X45X9

92071-0728

$1.50

92071A

GROMMET,8X22X8

92071-0753

$5.45

92093

SEAL,10X20X165

92093-0617

$3.91

92161

DAMPER

92161-1649

$17.49

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85
