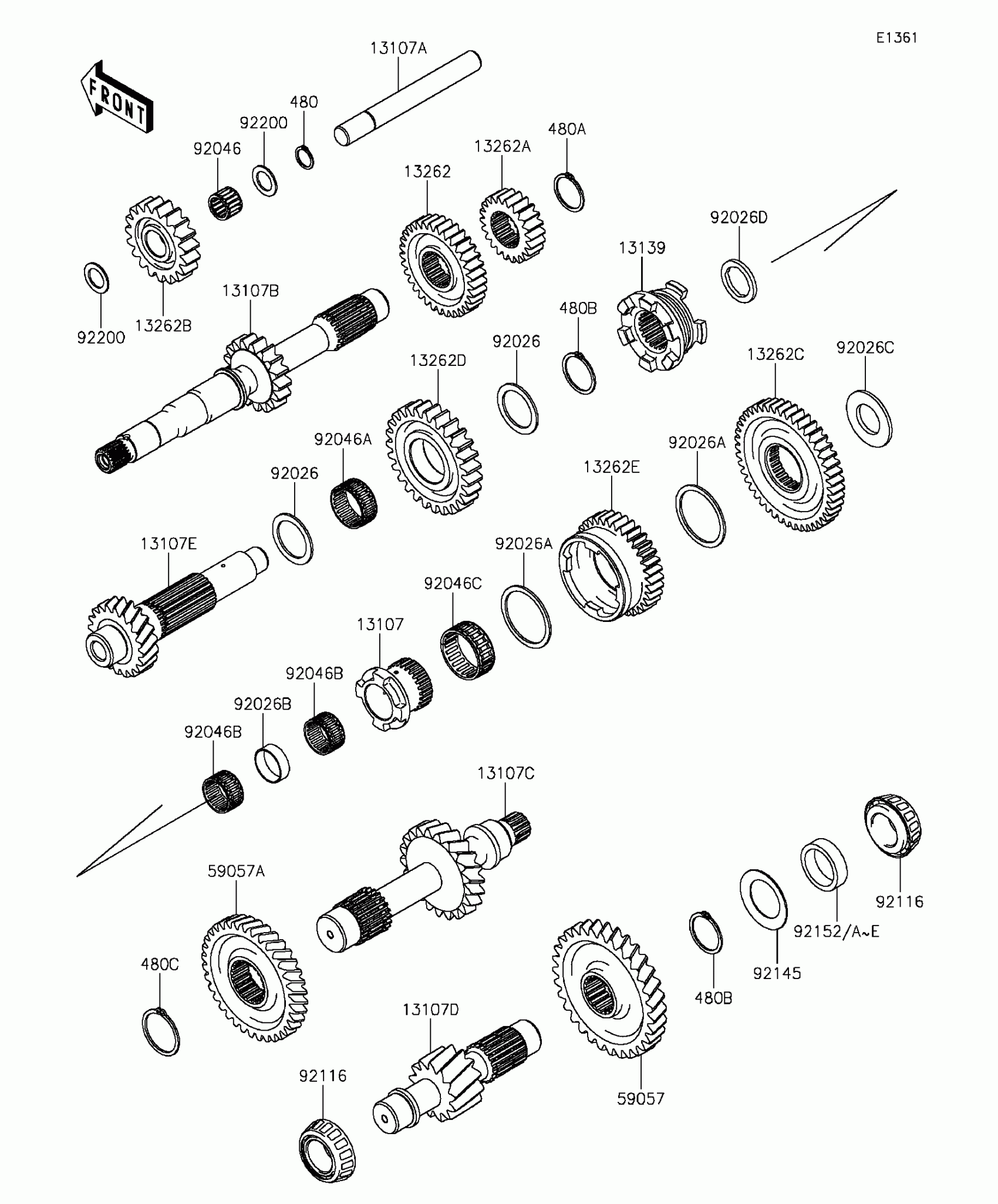

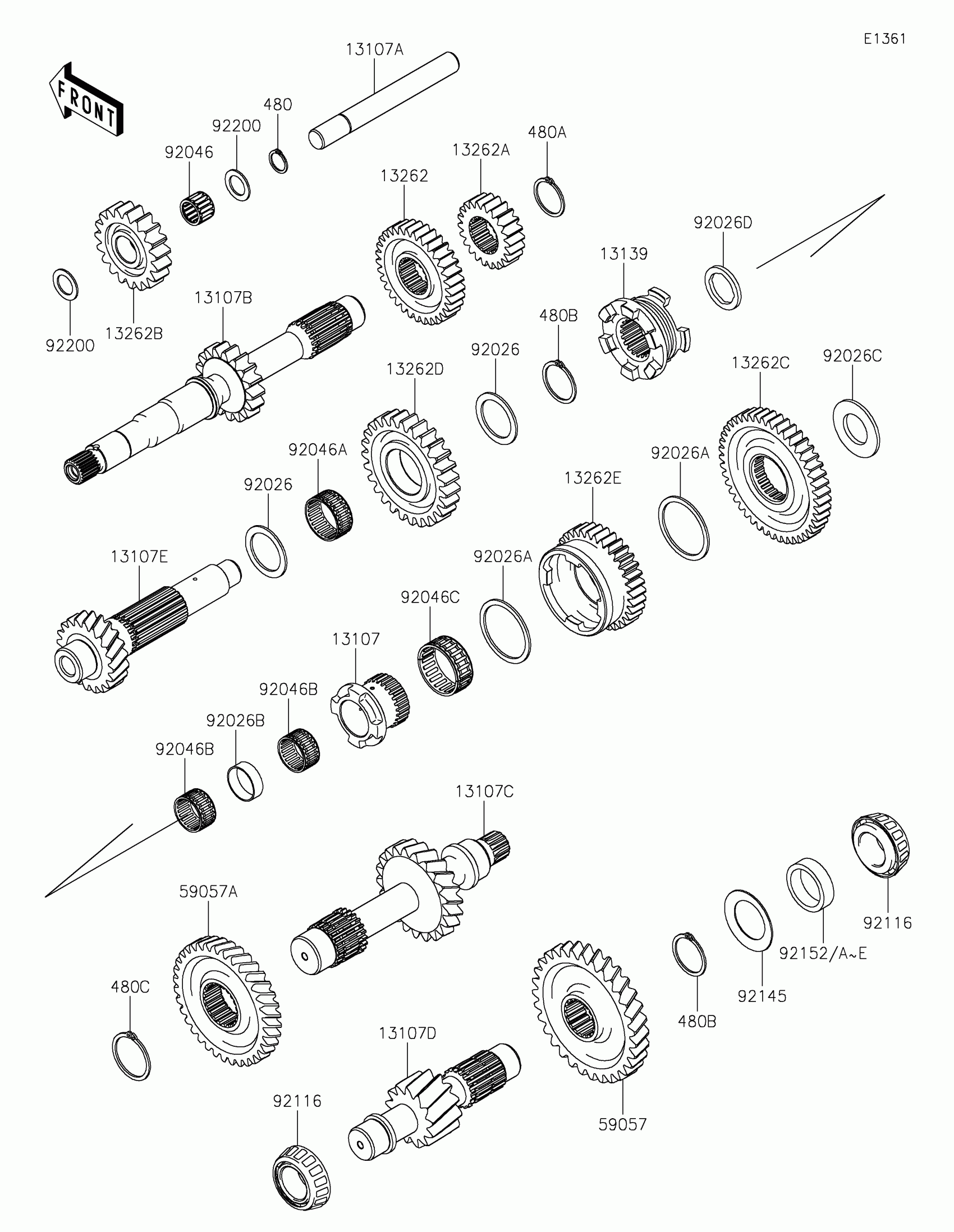

Kawasaki MULE PRO-DX™ EPS DIESEL Transmission Diagram

#

Description
Price

13107

SHAFT

13107-0779

$117.05

13107A

SHAFT,IDLE REV

13107-0780

$33.06

13107B

SHAFT,INPUT,17T

13107-0782

$358.87

13107C

SHAFT,3RD,21T

13107-0784

$269.77

13107D

SHAFT,4TH,13T

13107-0785

$261.00

13107E

SHAFT,COUNTER,19T

13107-0829

$235.77

13139

SHIFTER

13139-0022

$107.76

13262

GEAR,INPUT HI,33T

13262-1085

$92.35

13262A

GEAR,INPUT LOW,22T

13262-1086

$61.28

13262B

GEAR,IDLE REV,19T

13262-1087

$71.62

13262C

GEAR,COUNTER LOW,45T

13262-1088

$104.72

13262D

GEAR,COUNTER REV,27T

13262-1089

$107.90

13262E

GEAR,COUNTER HI,34T

13262-1090

$155.45

480

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

480B

CIRCLIP

480J3500

$2.75

480C

CIRCLIP

480J4000

$6.57

59057

GEAR-HELICAL,31T

59057-0013

$117.65

59057A

GEAR-HELICAL,3RD,36T

59057-0022

$116.82

92026

SPACER,35.2X47X2

92026-0765

$11.23

92026A

SPACER,49.2X58X2

92026-0766

$13.34

92026B

SPACER,29.4X31.8X10

92026-0767

$4.18

92026C

SPACER

92026-0768

$18.95

92026D

SPACER,28.2X39X3.6

92026-0795

$18.15

92046

BEARING-NEEDLE,FMJ-182417

92046-0040

$14.05

92046A

BEARING-NEEDLE,35X40X17

92046-0611

$17.11

92046B

BEARING-NEEDLE,KT283317C3

92046-0621

$14.62

92046C

BEARING-NEEDLE,HIGH GEAR

92046-1276

$36.04

92116

BEARING-ROLLER

92116-0007

$20.63

92145

SPRING

92145-1575

$6.68

92152

COLLAR,L=12.1

92152-1815

Unavailable

92152A

COLLAR,L=12.3

92152-1816

Unavailable

92152B

COLLAR,L=12.5

92152-1817

Unavailable

92152C

COLLAR,L=12.7

92152-1818

Unavailable

92152D

COLLAR,L=12.9

92152-1819

Unavailable

92152E

COLLAR,L=13.1

92152-1820

Unavailable

92200

WASHER,18.2X28X1.5

92200-0716

$3.02
