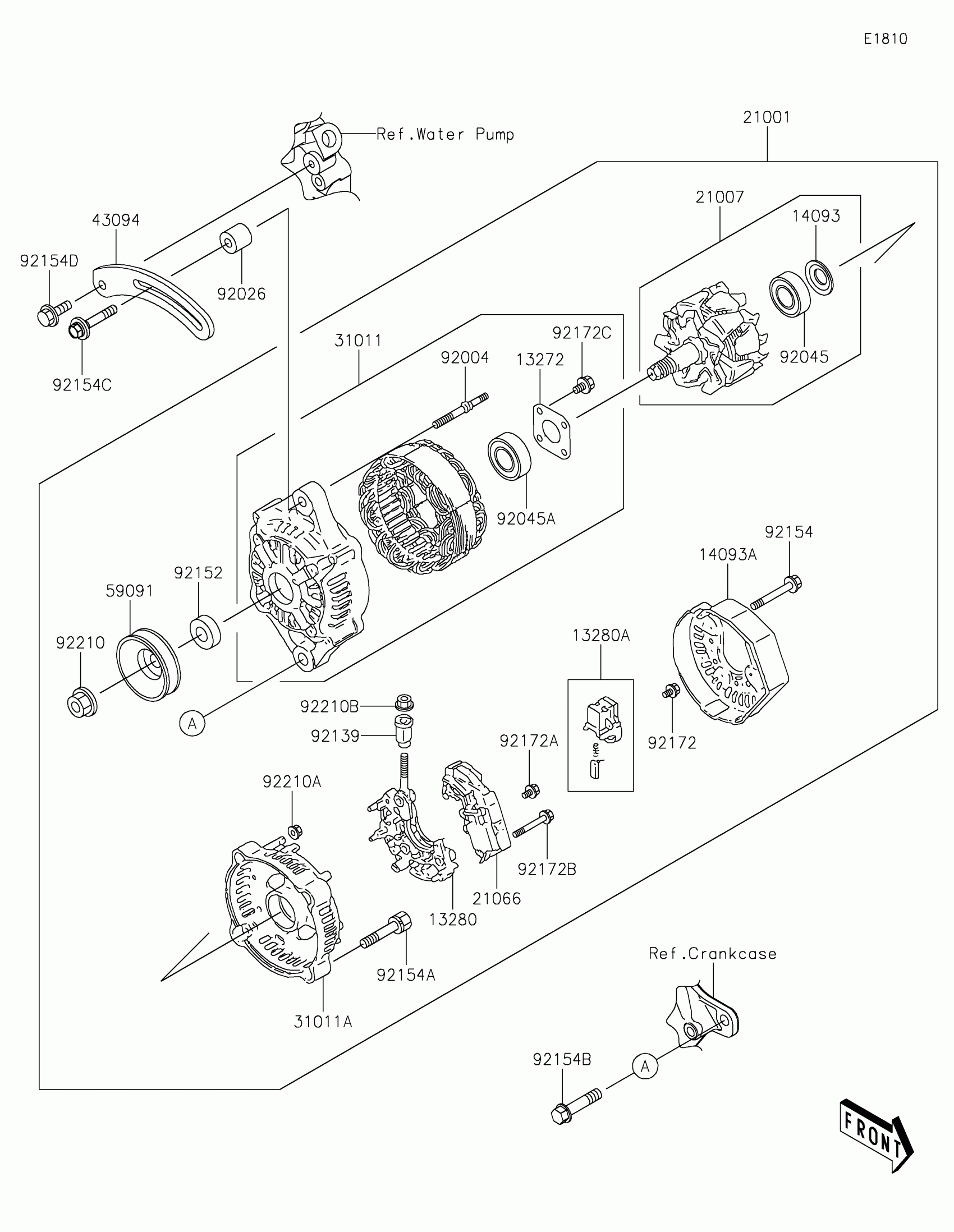

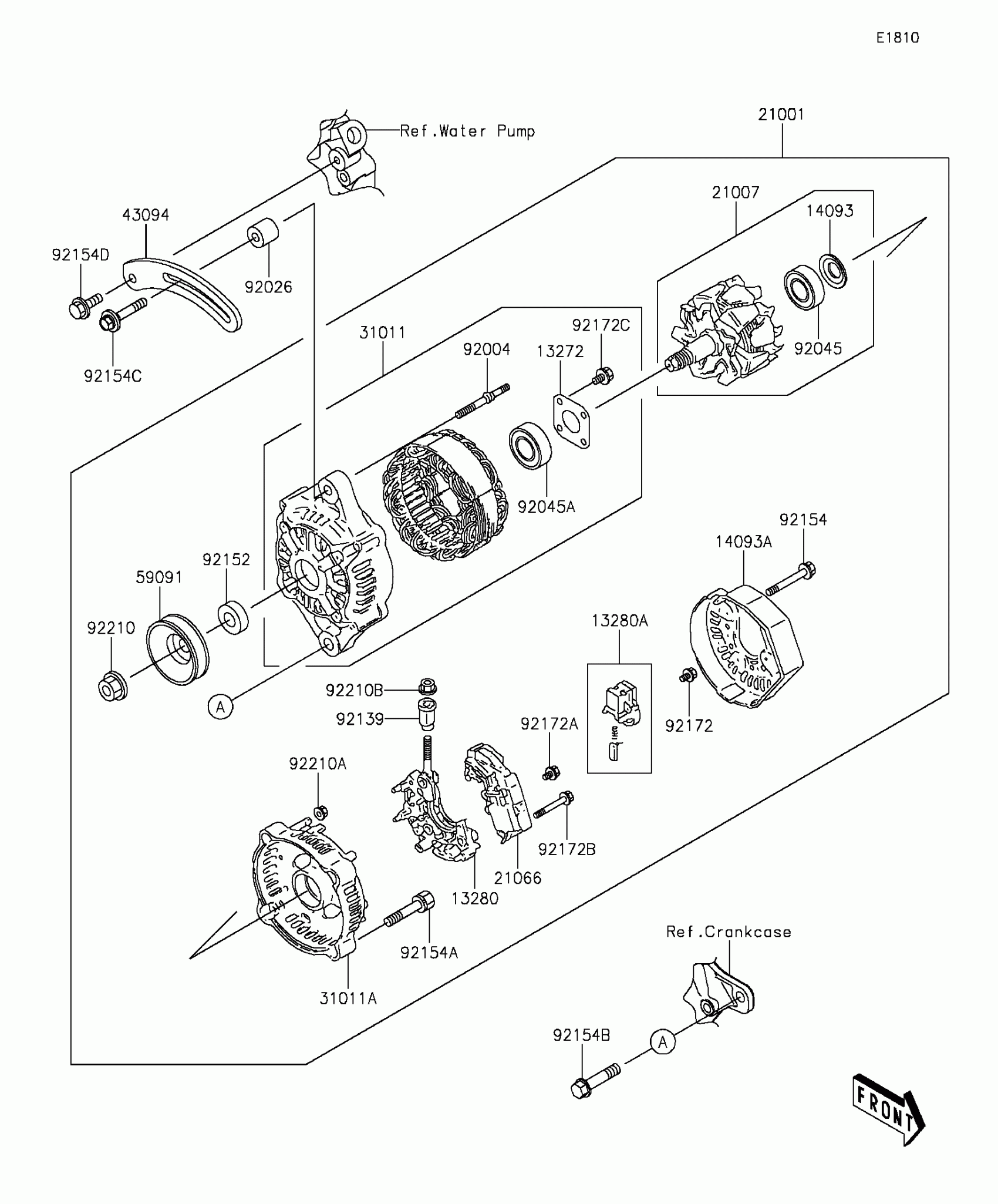

Kawasaki MULE PRO-DX™ EPS DIESEL Generator Diagram

Description

Price

13272

PLATE,RETAINER

13272-2135

$11.00

13280

HOLDER

13280-0864

$252.61

13280A

HOLDER,BRUSH

13280-0865

$55.96

14093

COVER

14093-0450

$5.56

14093A

COVER

14093-0451

$110.64

21001

GENERATOR

21001-0613

$1,392.12

21007

ROTOR

21007-0637

$368.27

21066

REGULATOR-VOLTAGE

21066-0749

$464.74

31011

FRAME

31011-0027

$418.19

31011A

FRAME

31011-0028

$104.79

43094

ADJUSTER

43094-0007

$24.25

59091

PULLEY

59091-0015

$75.51

92004

STUD

92004-0751

$11.59

92026

SPACER

92026-0821

$9.07

92045

BEARING-BALL

92045-0812

$23.79

92045A

BEARING-BALL

92045-0816

$29.60

92139

BUSHING

92139-0861

$15.26

92152

COLLAR

92152-2198

$17.78

92154

BOLT

92154-2074

$3.98

92154A

BOLT

92154-2075

$4.78

92154B

BOLT,FLANGED,10X45

92154-2076

$3.35

92154C

BOLT

92154-2077

$15.80

92154D

BOLT,FLANGED,8X20

92154-2078

$2.03

92172

SCREW

92172-0989

$3.94

92172A

SCREW

92172-0990

$3.94

92172B

SCREW

92172-0991

$3.35

92172C

SCREW

92172-1096

$3.98

92210

NUT

92210-1474

$5.61

92210A

NUT

92210-1475

$3.98

92210B

NUT

92210-1476

$3.94
