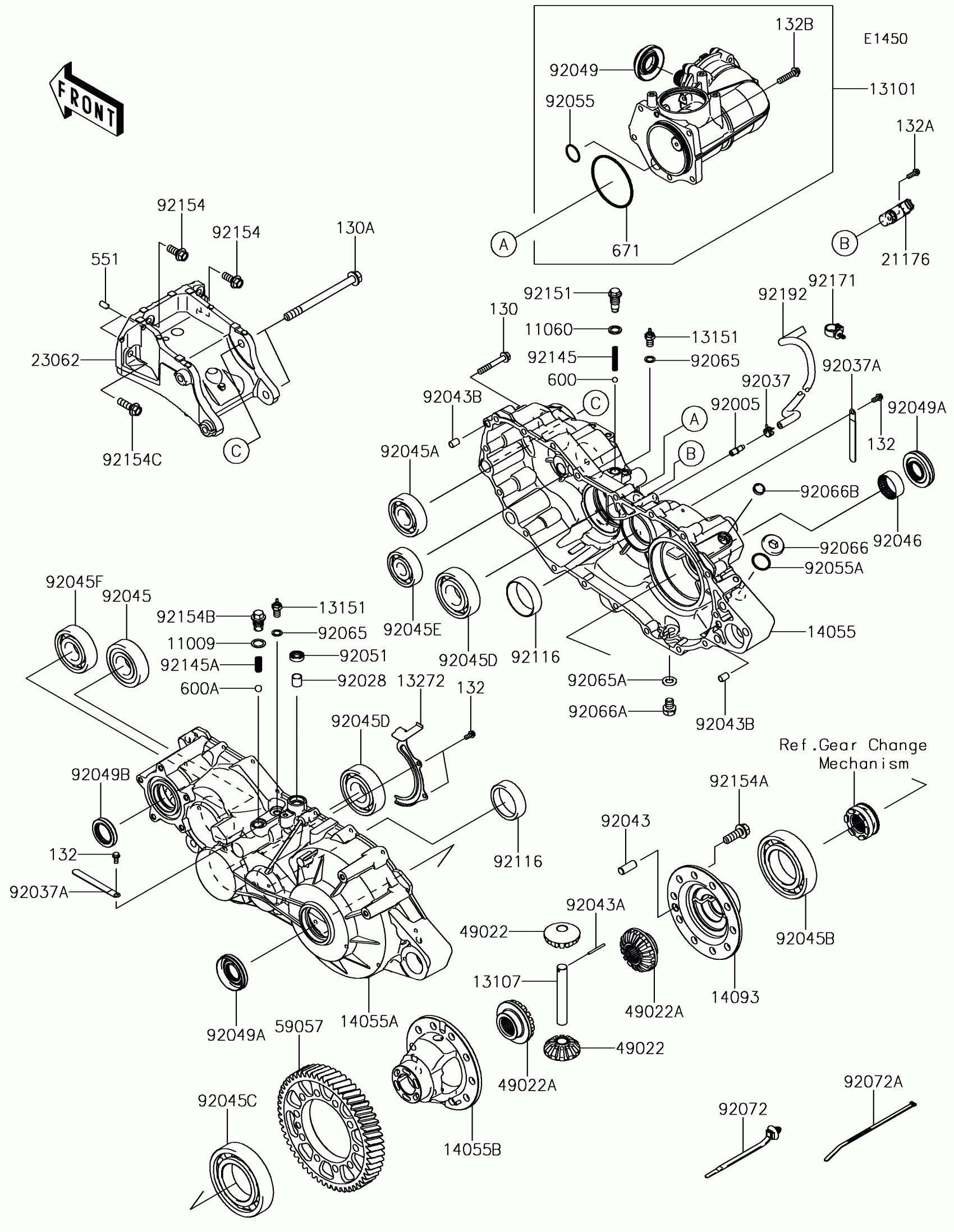

Kawasaki MULE PRO-DX™ EPS DIESEL Gear Box Diagram

#

Description
Price

11009

GASKET,15.5X22X1

11009-1008

$2.92

11060

GASKET,14X20X2

11060-1287

$2.73

13101

GEAR-ASSY,PARTICULAR

13101-0636

$1,321.27

13107

SHAFT

13107-0793

$29.31

13151

SWITCH-COMP,NEUTRAL

13151-1080

$8.20

13272

PLATE

13272-1624

$7.69

14055

CASE-GEAR,RH

14055-0607

$463.14

14055A

CASE-GEAR,LH

14055-0608

$387.50

14055B

CASE-GEAR,DIFF

14055-0614

$354.05

14093

COVER,DIFF

14093-0048

$114.21

21176

SENSOR,ROTATION

21176-0767

$66.76

23062

BRACKET-COMP

23062-0855

$197.54

49022

GEAR-BEVEL,PINION,12T

49022-0585

$77.33

49022A

GEAR-BEVEL,OUTPUT,16T

49022-0589

$156.81

59057

GEAR-HELICAL,55T

59057-0012

$276.35

92005

FITTING,BREATHER

92005-1127

$16.10

92028

BUSHING

92028-1347

$6.75

92037

CLAMP,TUBE

92037-1505

$3.78

92037A

CLAMP

92037-1993

$4.37

92043

PIN,DOWEL,12X30

92043-0789

$3.19

92043A

PIN,DOWEL

92043-0806

$1.02

92043B

PIN,DOWEL,10X14

92043-1037

$0.76

92045

BEARING-BALL,63/32

92045-0764

$43.54

92045A

BEARING-BALL,63/28

92045-0765

$25.90

92045B

BEARING-BALL,6212

92045-0766

$65.70

92045C

BEARING-BALL,6213

92045-0767

$78.52

92045D

BEARING-BALL,6307C3

92045-0768

$32.98

92045E

BEARING-BALL,B22-19C3 UR

92045-0769

$43.91

92045F

BEARING-BALL,63/32C3

92045-1364

$43.42

92046

BEARING-NEEDLE,BTM35.6

92046-0612

$14.63

92049

SEAL-OIL

92049-0160

$10.24

92049A

SEAL-OIL

92049-0749

$12.50

92049B

SEAL-OIL,TC32488

92049-1361

$5.40

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92055

RING-O,1.9X26.2

92055-0782

$1.51

92055A

RING-O,25.7X2.4

92055-1136

$3.97

92065

GASKET,10.5X16X1

92065-058

$3.16

92065A

GASKET,12X22X2

92065-097

$0.76

92066

PLUG,25X8

92066-0012

$9.28

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$4.88

130

BOLT-FLANGED,8X55

130BA0855

$1.90

130A

BOLT-FLANGED,12X150

130CA12150

$16.53

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21

132B

BOLT-FLANGED-SMALL,8X35

132BA0835

$3.78

551

PIN-DOWEL,8X14

551A0814

$1.08

600

BALL-STEEL,5/16

600A1000

$0.76

600A

BALL-STEEL,13/32"

600A1300

$0.90

671

O RING

671D2585

$6.34

92066B

PLUG

92066-7014

$1.49

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92072A

BAND,L=292.1

92072-3509

Unavailable

92116

BEARING-ROLLER,HR32206JA LC

92116-0008

$11.22

92145

SPRING

92145-1589

$3.53

92145A

SPRING

92145-1590

$2.92

92151

BOLT,CHANGE POSITION

92151-1687

$13.97

92154

BOLT,FLANGED,10X25

92154-1329

$1.69

92154A

BOLT,FLANGED,12X35

92154-1332

$3.56

92154B

BOLT,CHANGE POSITION

92154-1366

$15.36

92154C

BOLT,FLANGED,10X32

92154-1740

$2.25

92171

CLAMP

92171-0453

$3.12

92192

TUBE,BREATHER

92192-1340

$5.10
