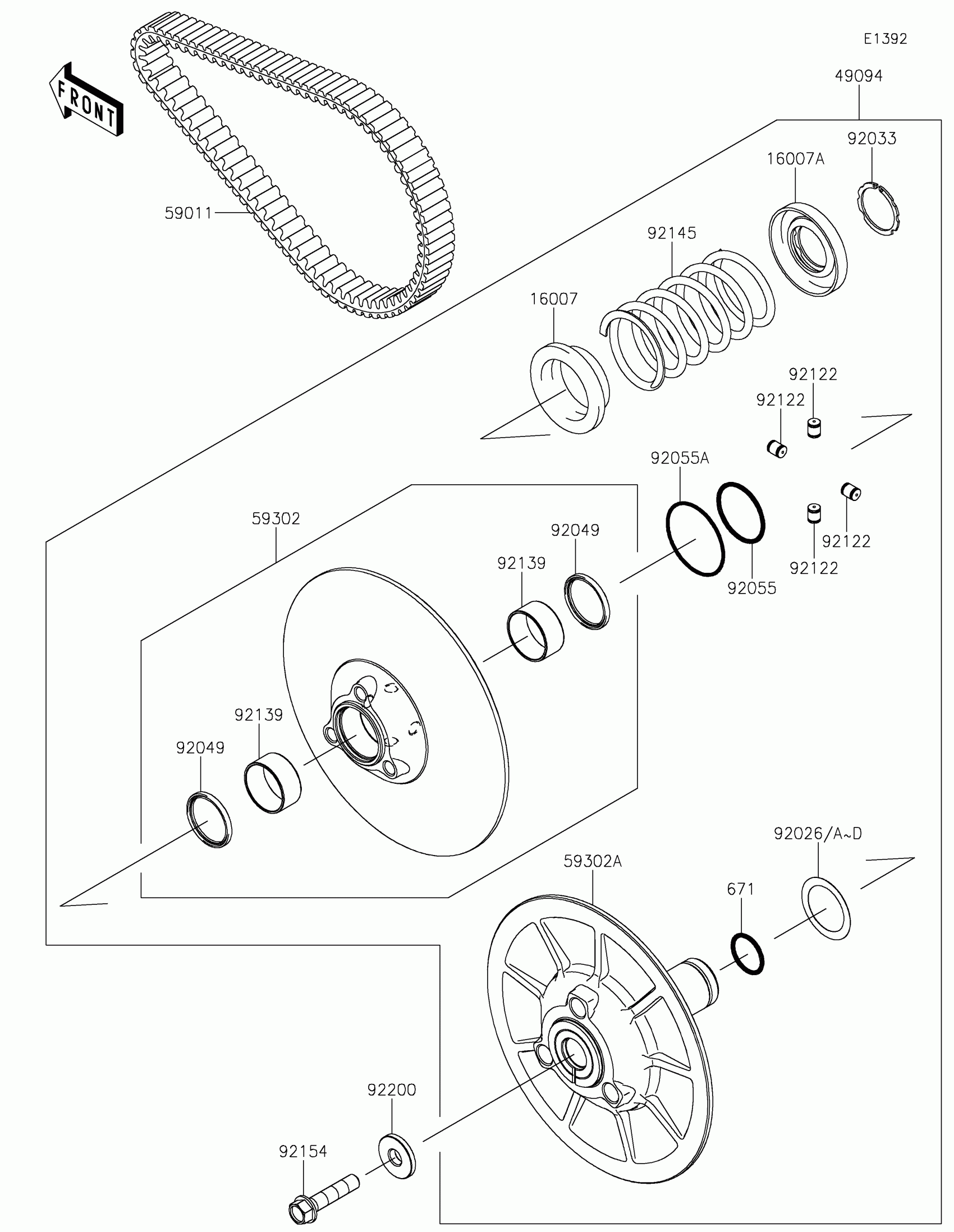

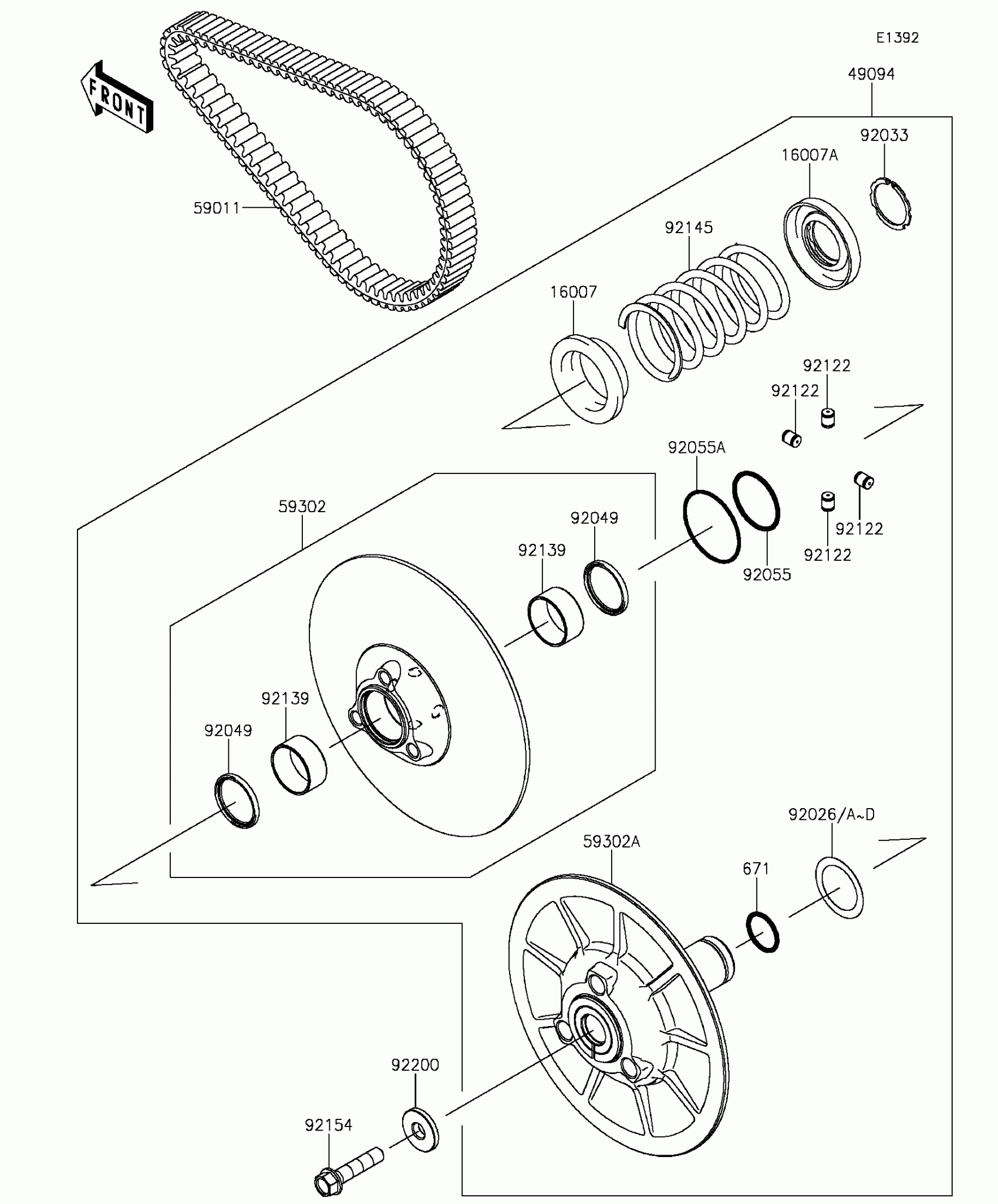

Kawasaki MULE PRO-DX™ EPS DIESEL Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0049

$13.46

16007A

SEAT-SPRING,FIXED

16007-0050

$14.00

49094

CONVERTER-ASSY-DRIVEN

49094-0095

$659.13

59011

BELT,CVT

59011-0037

$170.53

59302

SHEAVE-COMP,MOVABLE

59302-0049

$344.85

59302A

SHEAVE-COMP,FIXED

59302-0095

$344.85

671

O RING

671D2530

$4.59

92026

SPACER,T=0.30

92026-0034

$6.34

92026A

SPACER,T=1.00

92026-1565

$6.34

92026B

SPACER,T=0.60

92026-1569

$6.34

92026C

SPACER,T=1.40

92026-1570

$6.34

92026D

SPACER,T=0.80

92026-1617

$6.34

92033

RING-SNAP

92033-1317

$4.84

92049

SEAL-OIL

92049-1528

$12.97

92055

RING-O,46.4X3.1

92055-0752

$3.50

92055A

RING-O,59.5X2.4

92055-0753

$3.26

92122

ROLLER

92122-0043

$10.68

92139

BUSHING

92139-0313

$23.64

92145

SPRING

92145-1671

$52.99

92154

BOLT,FLANGED,12X55

92154-1336

$6.04

92200

WASHER

92200-0069

$11.10
