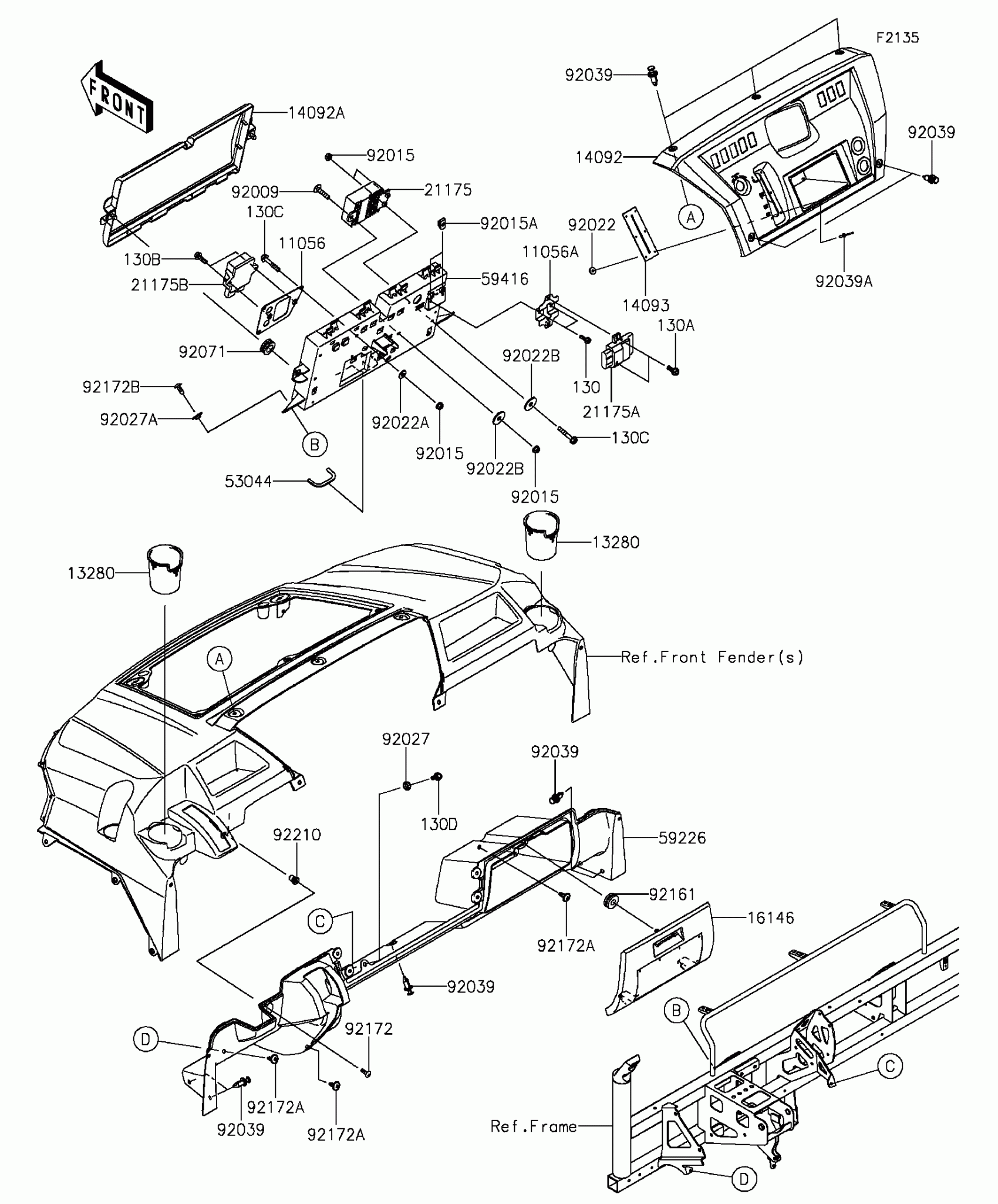

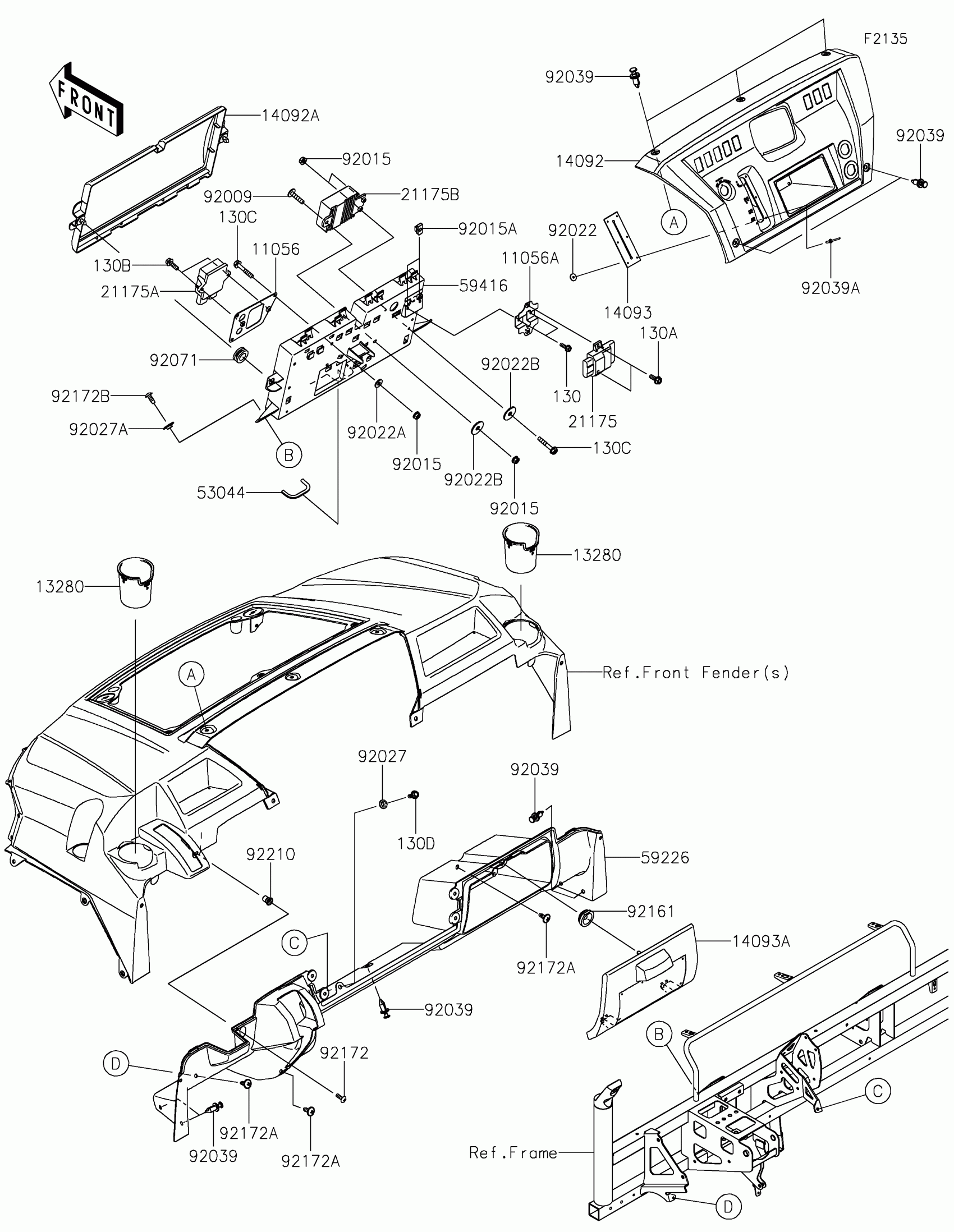

Kawasaki MULE PRO-DX™ EPS DIESEL Front Box Diagram

#

Description
Price

11056

BRACKET,SOLENOID

11056-7476

$7.59

11056A

BRACKET,CONTROLLER

11056-7477

$9.84

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

130C

BOLT-FLANGED,6X35

130BA0635

$0.94

130D

BOLT-FLANGED,6X16

130CA0616

$1.80

13280

HOLDER,CUP

13280-0774

$13.38

14092

COVER,DASHBOARD

14092-1192

$71.40

14092A

COVER,ELECTRIC BOX

14092-1197

$39.28

14093

COVER,SHIFT LEVER

14093-0146

$2.70

16146

COVER-ASSY,GLOVE BOX

16146-0786

$29.93

21175

ECU,ELECTRIC POWER STEERING

21175-1103

$861.42

21175A

ECU,VEHICLE CONTROLLER(DRIVE)

21175-1105

$627.33

21175B

ECU,AIR PRESSURE SENSOR(FUEL)

21175-1113

$536.31

53044

TRIM

53044-0572

$2.15

59226

PANEL-CONTROL

59226-0042

$114.81

59416

CASE-ELECTRIC

59416-0025

$38.44

92009

SCREW,6X28,BLACK

92009-1400

$5.52

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,5MM

92015-1627

$5.93

92022

WASHER,3.3X12X1.2

92022-1407

$3.65

92022A

WASHER

92022-2247

$0.62

92022B

WASHER,6.5X22X1.6

92022-237

$3.92

92027

COLLAR,L=4.6

92027-1168

$5.00

92027A

COLLAR,L=5.1

92027-1260

$6.22

92039

RIVET

92039-1229

$1.19

92039A

RIVET

92039-1231

$1.81

92071

GROMMET

92071-1131

$7.77

92161

DAMPER,7.8X26X10

92161-1786

$1.19

92172

SCREW,5MM

92172-0292

$3.39

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT,WELL,5MM

92210-0370

$5.65
