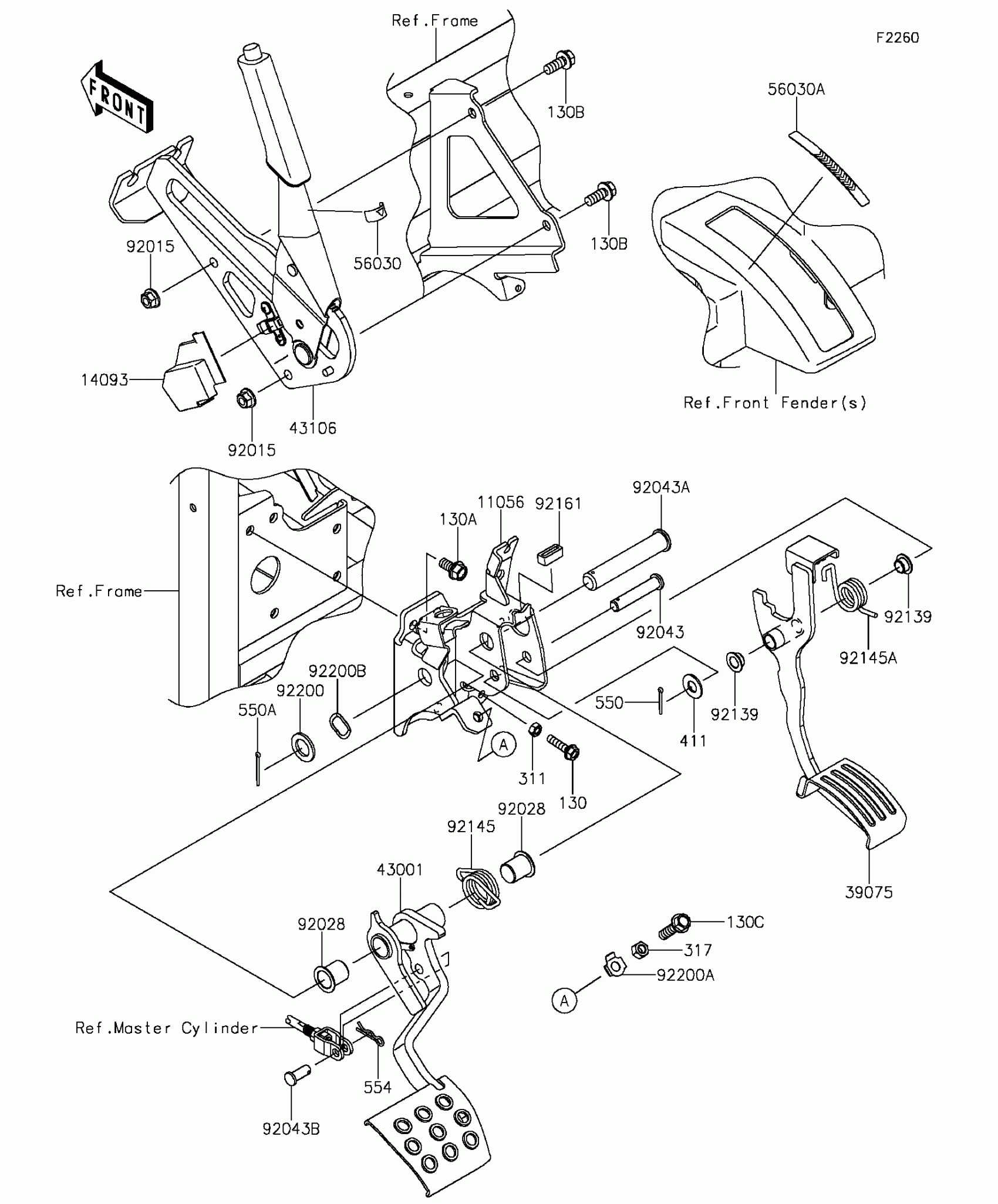

Kawasaki MULE PRO-DX™ EPS DIESEL Brake Pedal/Throttle Lever Diagram

Description

Price

11056

BRACKET,BRAKE

11056-2834

$81.92

130

BOLT-FLANGED,6X25

130BA0625

$1.01

130A

BOLT-FLANGED,8X18

130BA0818

$2.10

130B

BOLT-FLANGED,8X20

130BA0820

$3.27

130C

BOLT-FLANGED,8X30

130BA0830

$1.68

14093

COVER,PARKING BRAKE SW.

14093-0241

$2.44

311

NUT-HEX,6MM

311BA0600

$1.64

317

NUT-HEX-SMALL,8MM

317BA0800

$1.44

39075

LEVER-THROTTLE

39075-0020

$36.85

411

WASHER-PLAIN,10MM

411AA1000

$0.93

43001

LEVER-BRAKE,FOOT

43001-0728

$62.86

43106

LEVER-ASSY-PARKING BRAKE

43106-0006

Unavailable

550

PIN-COTTER,2.5X18

550AA2518

$0.61

550A

PIN-COTTER,2.5X25

550AA2525

$1.22

554

PIN-SNAP,10MM

554DA1000

$1.22

56030

LABEL,ARROW

56030-0905

$2.37

56030A

LABEL,STROKE RANGE

56030-0930

$2.37

92015

NUT,FLANGED,8MM

92015-1406

$3.53

92028

BUSHING

92028-1571

$10.27

92043

PIN,10X51.5

92043-0785

$4.39

92043A

PIN,16X88

92043-0786

$14.02

92043B

92043-1039

$7.86

92139

BUSHING

92139-0230

$4.10

92145

SPRING,BRAKE PEDAL RETURN

92145-1615

$7.56

92145A

SPRING,RETURN,3X22

92145-1697

$8.85

92161

DAMPER

92161-1695

$0.85

92200

WASHER,16X26X2.3

92200-0043

$6.09

92200A

WASHER,8.5X17X0.8

92200-0993

$3.90

92200B

WASHER,17X23X2.5

92200-1689

$3.59
