2025 Kawasaki Mule PRO-DX™ EPS Chassis Electrical Equipment Diagram

← All diagrams

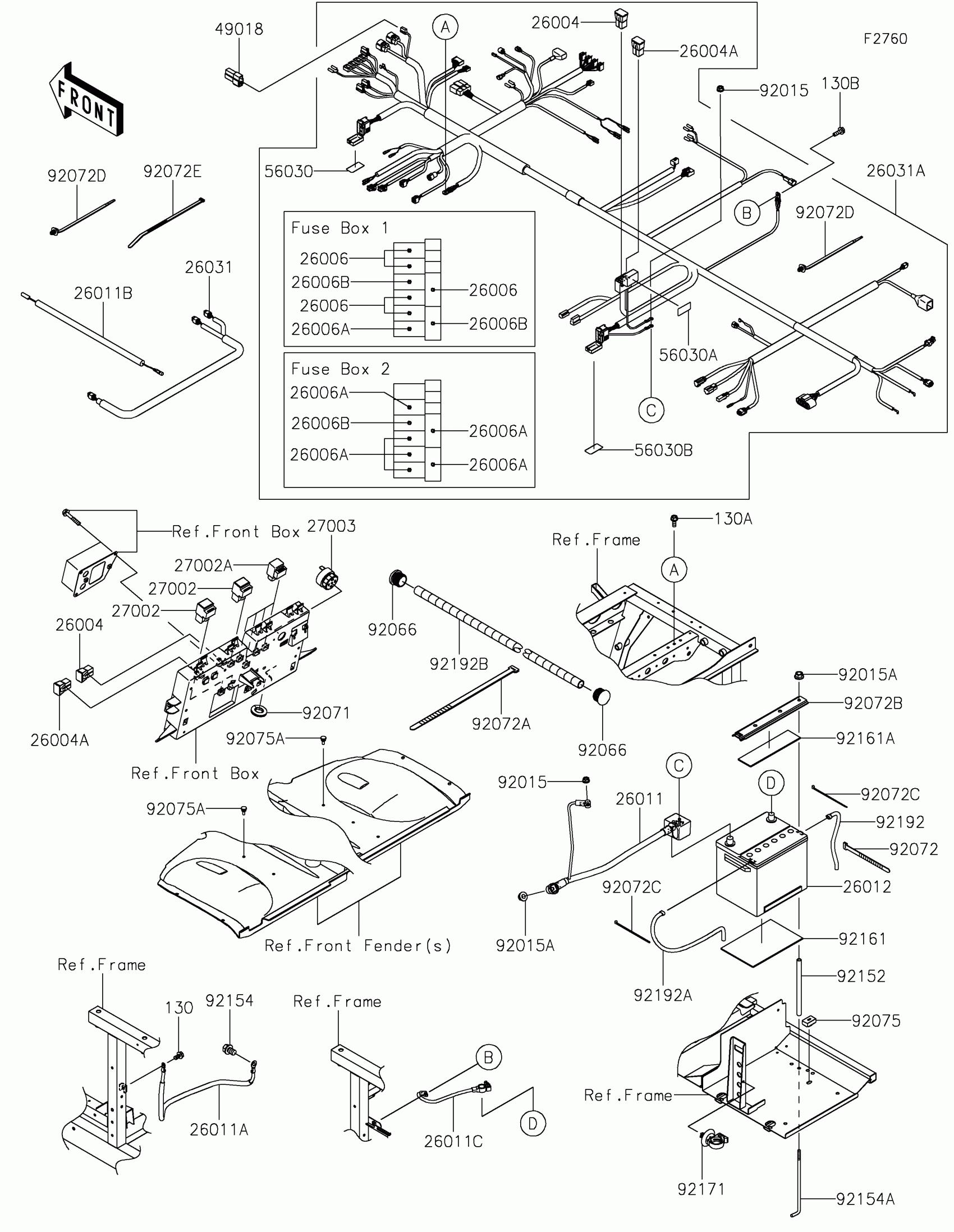

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Mule PRO-DX™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Mule PRO-DX™ EPS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26004

FUSE-ASSY,60A

26004-0024

1
Out of stock

26004A

FUSE-ASSY,40A

26004-0035

1
Out of stock

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-3704

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0904

1
Out of stock

26011A

WIRE-LEAD,ENGINE GND

26011-0905

1
Out of stock

26011B

WIRE-LEAD,OIL PRESSURE SW.

26011-0906

1
Out of stock

26011C

WIRE-LEAD,BATTERY(-)

26011-0912

1
Out of stock

26012

BATTERY,WET,(26R)

26012-1569

1
Out of stock

26031

HARNESS,SUB

26031-2226

1
Out of stock

26031A

HARNESS,MAIN

26031-2828

1
Out of stock

27002

RELAY-ASSY

27002-0012

1
Out of stock

27002A

RELAY-ASSY

27002-1062

1
Out of stock

27003

HORN,PARKING BUZZER

27003-0116

1
Out of stock

49018

DIODE

49018-0006

1
Out of stock

56030

LABEL,FUSE BOX1

56030-0917

1
Out of stock

56030A

LABEL,FUSE BOX3

56030-0918

1
Out of stock

56030B

LABEL,FUSE BOX2

56030-0919

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92066

PLUG

92066-0908

1
Out of stock

92071

GROMMET,22X45X9

92071-0729

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=218

92072-032

1
Out of stock

92072B

BAND

92072-0767

1
Out of stock

92072C

BAND,92X2.4

92072-0791

1
Out of stock

92072D

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92072E

BAND,L=292.1

92072-3509

1
Out of stock

92075

DAMPER

92075-099

1
Out of stock

92075A

DAMPER,6X10X15

92075-1808

1
Out of stock

92152

COLLAR,9.4X12.7X190.8

92152-1852

1
Out of stock

92154

BOLT,FLANGED,10X14

92154-1383

1
Out of stock

92154A

BOLT,BATTERY

92154-1650

1
Out of stock

92161

DAMPER

92161-0578

1
Out of stock

92161A

DAMPER

92161-1753

1

$7.46

In stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92192

TUBE,BREATHER,7X10X240

92192-1646

1
Out of stock

92192A

TUBE,BREATHER,7X10X450

92192-1694

1
Out of stock

92192B

TUBE,CONVOLUTED

92192-1814

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130B

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock
