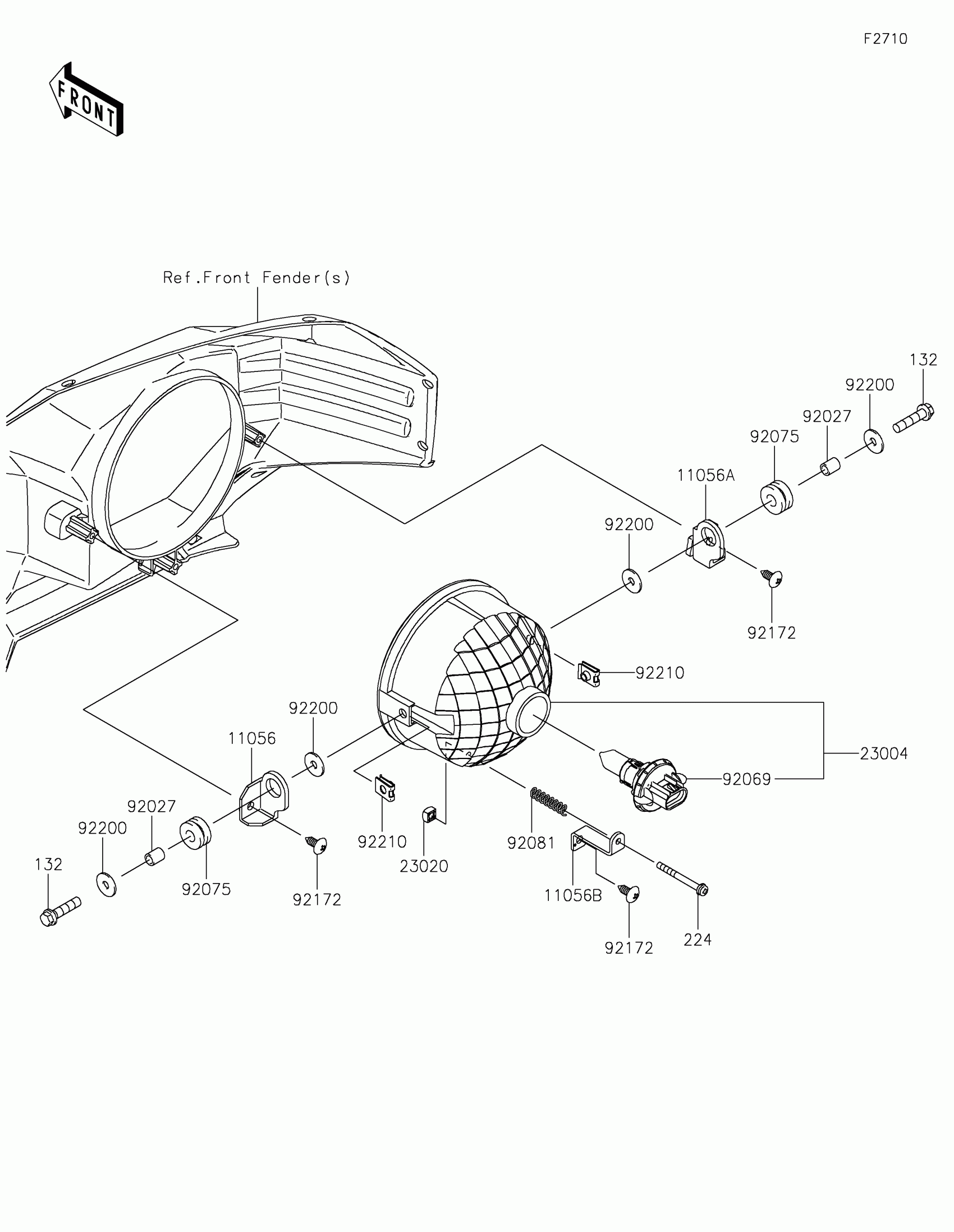

Kawasaki MULE PRO-DX™ EPS Headlight(s) Diagram

Description

Price

11056

BRACKET,LH

11056-2931

$3.41

11056A

BRACKET,RH

11056-2932

$3.41

11056B

BRACKET

11056-2933

$3.41

23004

LAMP-HEAD

23004-0387

$165.90

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 60/55W,H13

92069-0105

$39.82

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92172

SCREW,6X16

92172-0284

$0.90

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

92210

NUT

92210-1125

$3.63

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

224

SCREW-PAN-WP-CROS

224AA0440

$1.47
