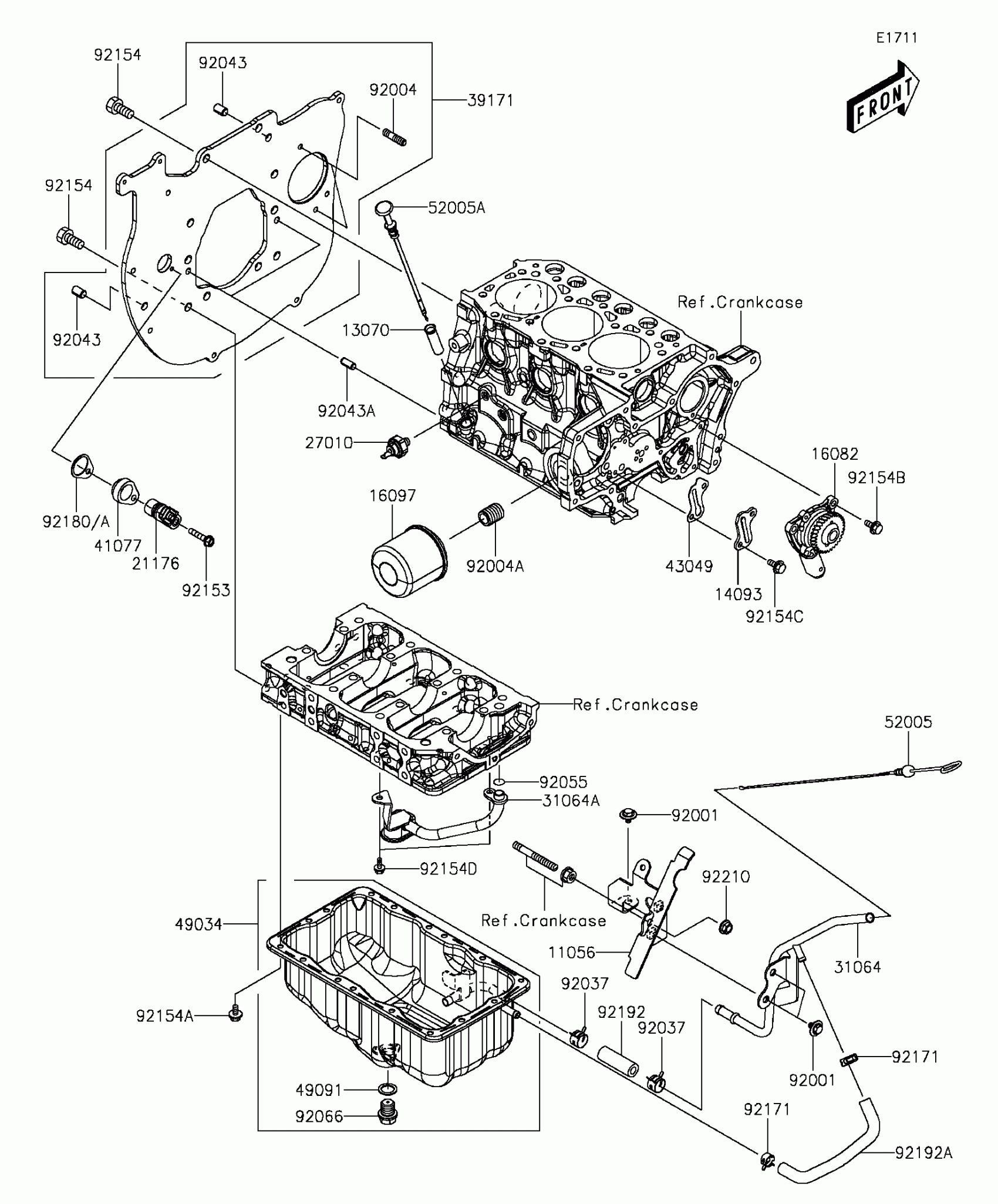

Kawasaki MULE PRO-DX™ DIESEL Oil Pan/Oil Filter Diagram

#

Description
Price

11056

BRACKET,LEVEL GAUGE PIPE

11056-7693

$9.12

13070

GUIDE,OIL LEVEL GAUGE

13070-0830

$55.96

14093

COVER

14093-0445

$11.19

16082

PUMP-ASSY-OIL

16082-0763

$341.55

16097

FILTER-ASSY-OIL

16097-0012

$16.35

21176

SENSOR,ROTATION

21176-0767

$65.52

27010

SWITCH,OIL PRESSURE

27010-0838

$33.70

31064

PIPE-COMP,LEVEL GAUGE

31064-0677

$31.68

31064A

PIPE-COMP,OIL

31064-0679

$42.14

39171

FLANGE-COMP

39171-0003

$376.42

41077

ADAPTER,ROTATION SENSOR

41077-0722

$6.52

43049

PACKING

43049-0039

$3.32

49034

PAN-OIL

49034-0566

$587.48

49091

WASHER-SEAL

49091-0006

$4.15

52005

GAUGE,OIL LEVEL

52005-0754

$49.34

52005A

GAUGE,OIL LEVEL

52005-0759

$54.65

92001

BOLT,FLANGED,6X10

92001-1034

$10.28

92004

STUD,8X25

92004-0745

$4.74

92004A

STUD

92004-0749

$19.09

92037

CLAMP

92037-1678

$10.16

92043

PIN,10X16

92043-0885

$11.69

92043A

PIN,8X16

92043-0886

$3.35

92055

RING-O

92055-0857

$3.35

92066

PLUG,DRAIN

92066-0851

$7.54

92153

BOLT,FLANGED,6X30

92153-1425

$2.15

92154

BOLT,10X20

92154-1985

$2.92

92154A

BOLT,TORX,6X10

92154-1986

$2.92

92154B

BOLT,FLANGED,6X14

92154-1997

$2.49

92154C

BOLT,FLANGED,6X12

92154-1998

$2.03

92154D

BOLT,FLANGED,6X10

92154-2068

$2.03

92171

CLAMP,CLIP,12.5MM

92171-0372

$3.39

92180

SHIM,T=1.0

92180-0968

Unavailable

92180A

SHIM,T=0.5

92180-0969

Unavailable

92192

TUBE,9X17.5X52

92192-1482

$17.98

92192A

TUBE,PIPE COMP-OIL PAN

92192-1501

$39.77

92210

NUT,FLANGED,8MM

92210-0555

$2.03
