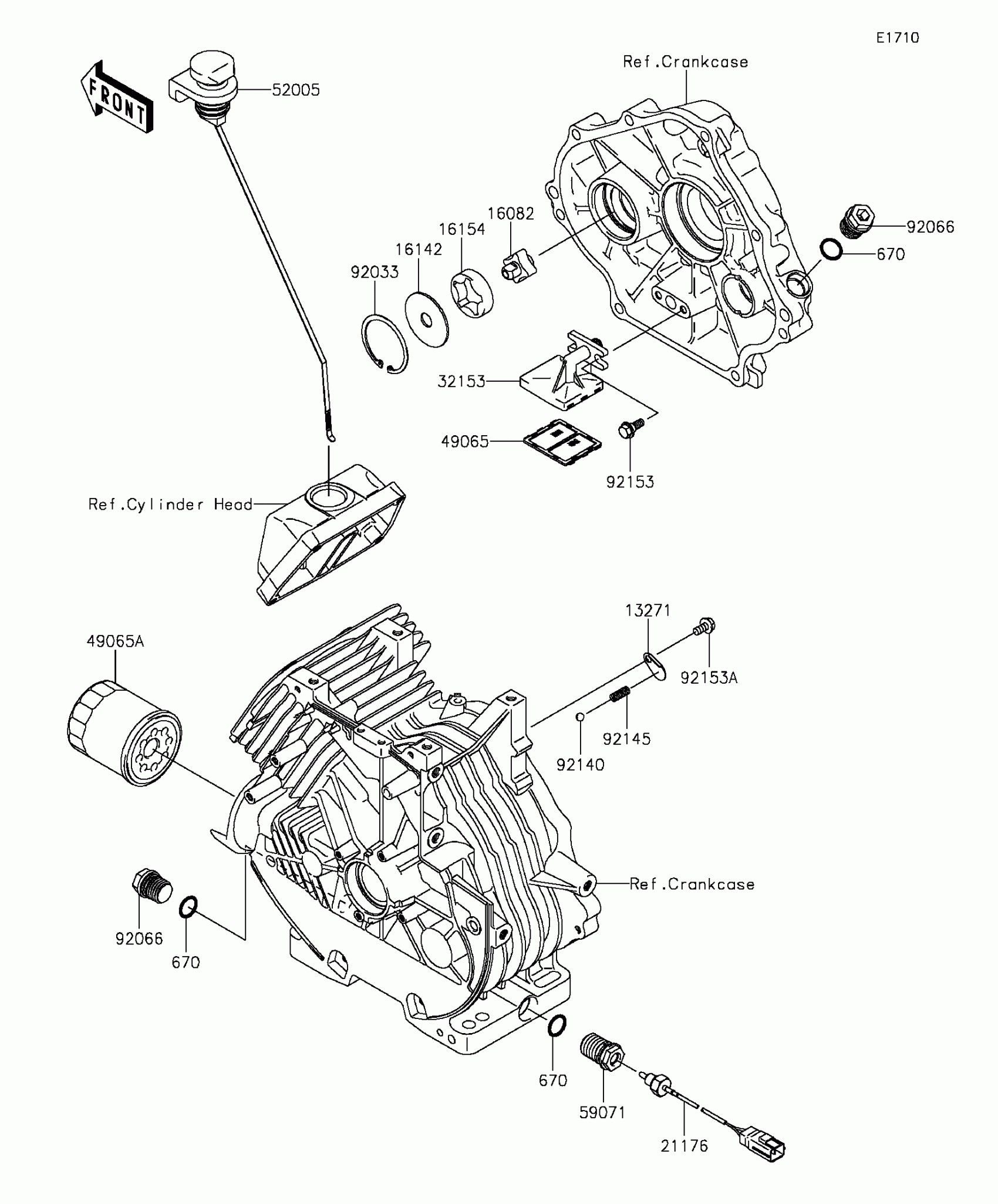

Kawasaki MULE™ 610 4x4 XC SE Oil Pump/Oil Filter Diagram

Description

Price

13271

PLATE,OIL RELIEF

13271-7026

$0.74

16082

PUMP-ASSY-OIL

16082-7002

$16.18

16142

COVER-PUMP

16142-7001

$3.58

16154

ROTOR-PUMP,OUT

16154-2054

$8.35

21176

SENSOR,OIL TEMP

21176-2108

$102.78

32153

PIPE

32153-7002

$4.28

49065

FILTER-OIL

49065-7005

$3.45

49065A

FILTER-OIL

49065-7010

$13.31

52005

GAUGE,OIL LEVEL

52005-7020

$28.85

59071

JOINT,SENSOR

59071-2150

$4.60

92033

RING-SNAP

92033-7008

$2.67

92066

PLUG

92066-7003

$4.82

92140

BALL

92140-7001

$0.92

92145

SPRING,OIL RELIEF

92145-7035

$1.13

92153

BOLT,FLANGED,6X16

92153-7007

$3.62

92153A

BOLT,6X12

92153-7043

$0.59

670

O RING,16MM

670D2016

$1.70
