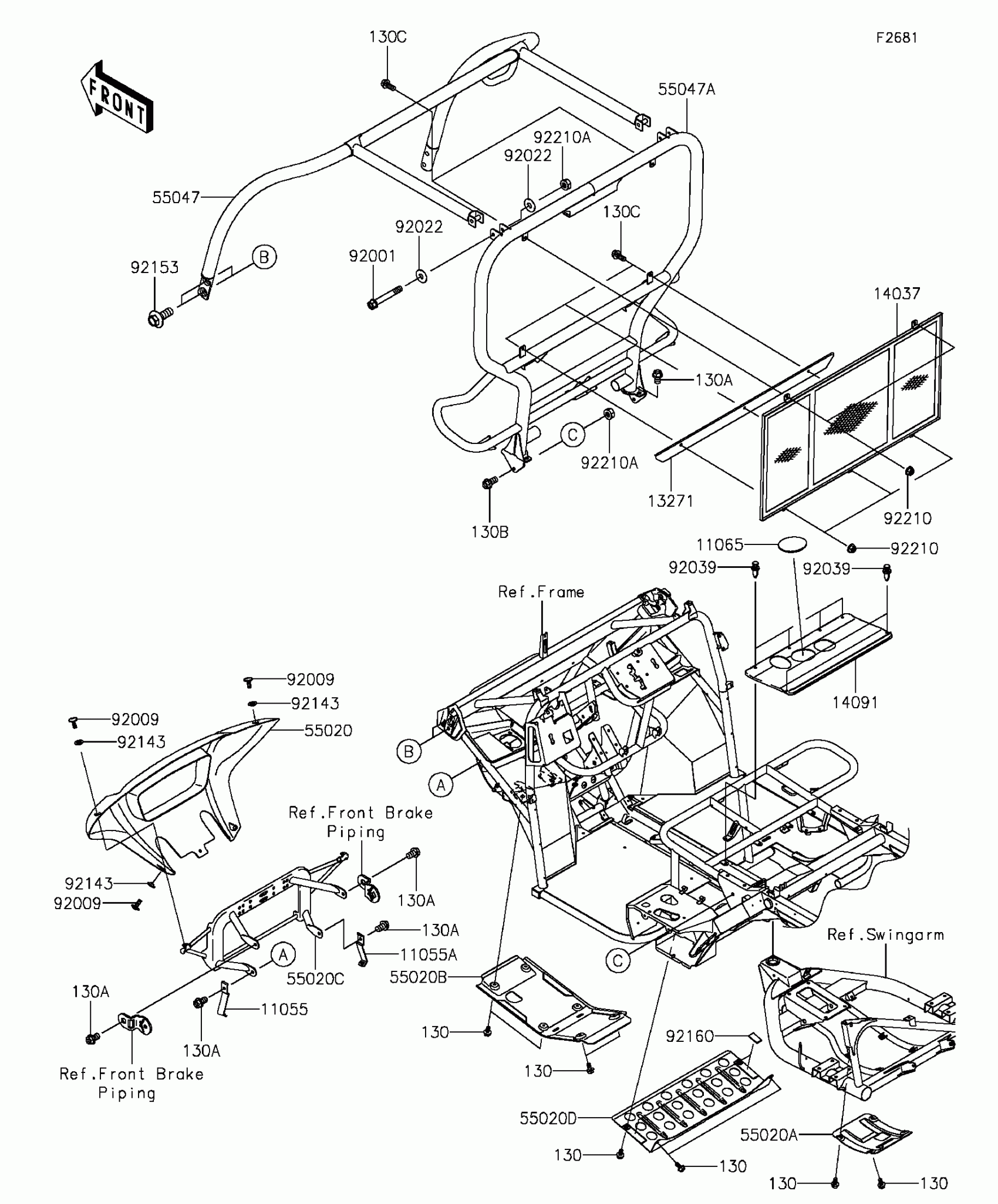

Kawasaki MULE™ 610 4x4 XC SE Guards/Cab Frame Diagram

Description

Price

11055

BRACKET,LH

11055-7510

$16.63

11055A

BRACKET,RH

11055-7511

$16.63

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

13271

PLATE,SCREEN,T.BLACK

13271-0560-388

$63.78

14037

SCREEN,T.BLACK

14037-0035-388

$159.41

14091

COVER

14091-0355

$4.60

55020

GUARD,FRONT BUMPER,F.BLACK

55020-0090-6Z

$100.21

55020A

GUARD,DIFF

55020-0141

$40.14

55020B

GUARD,FRONT DIFF

55020-0165

$58.14

55020C

GUARD,FRONT

55020-0777

$448.82

55020D

GUARD

55020-0883

$71.10

55047

BAR-COMP,FR,T.BLACK

55047-0006-388

$313.16

55047A

BAR-COMP,RR,T.BLACK

55047-0329-388

$571.29

92001

BOLT,FLANGED,10X70

92001-1618

$10.37

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92039

RIVET

92039-1229

$1.19

92143

COLLAR

92143-1087

$4.31

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92160

DAMPER

92160-1102

$1.38

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

92210A

NUT,LOCK,10MM

92210-1204

$4.31

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,10X16

130BA1016

$4.76

130B

BOLT-FLANGED,10X20

130BA1020

$3.35

130C

BOLT-FLANGED,8X20

130BB0820

$0.84
