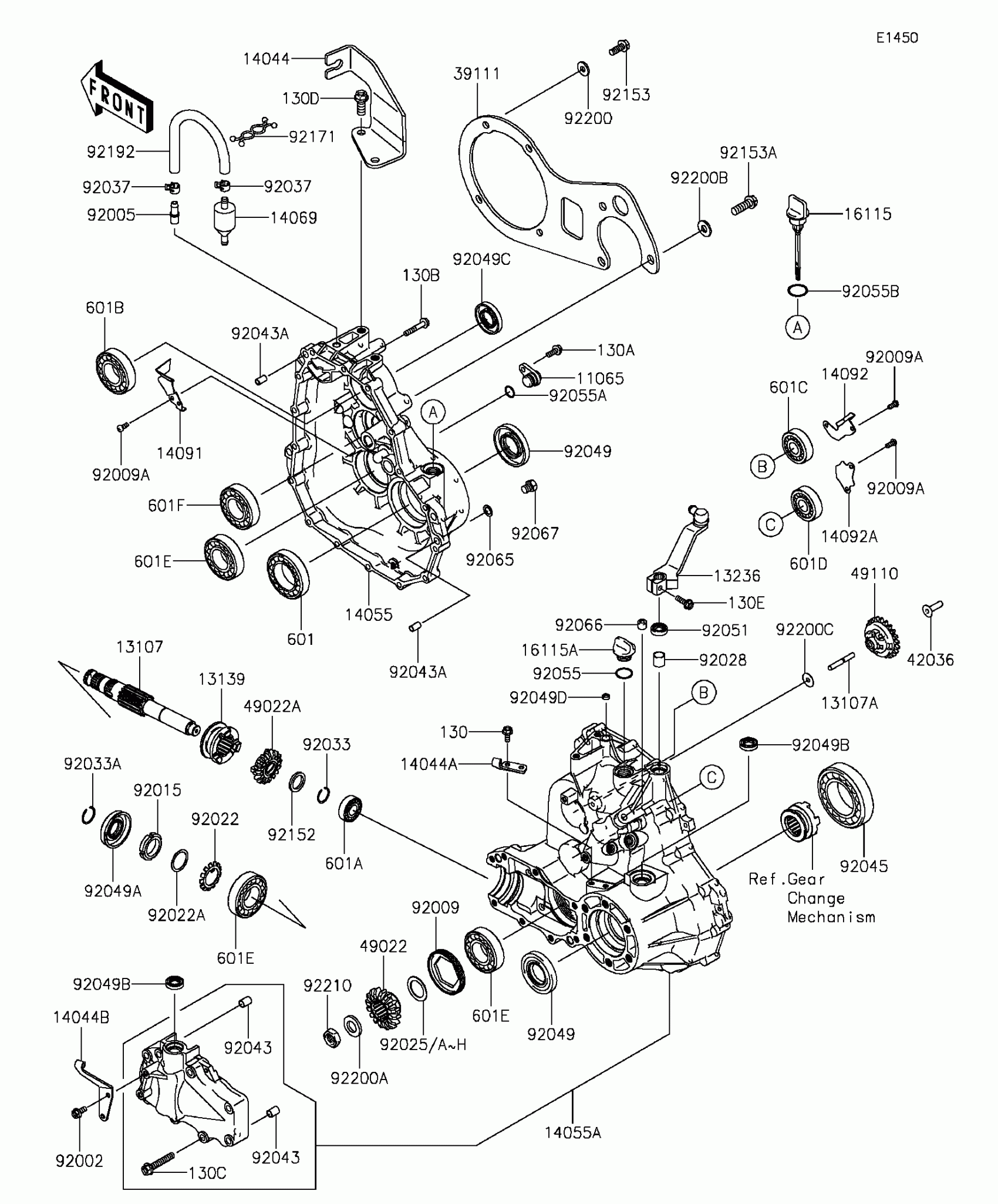

Kawasaki MULE™ 610 4x4 XC SE Gear Box Diagram
#
11065
CAP,GEAR CASE,RH
11065-0062
$18.40
13107
SHAFT,OUTPUT,BEVEL GEAR
13107-0043
$227.11
13107A
SHAFT
13107-2235
$5.51
13139
SHIFTER,2WD/4WD
13139-0005
$100.90
13236
LEVER-COMP
13236-0039
$54.48
14044
HOLDER-CABLE,SHIFT CONTROL
14044-0005
$46.79
14044A
HOLDER-CABLE,DIFF-LOCK
14044-0006
$10.37
14044B
HOLDER-CABLE,2WD/4WD
14044-0007
$10.37
14055
CASE-GEAR,RH
14055-0008
$276.40
14055A
CASE-GEAR,SET
14055-5001
$536.01
14069
BREATHER
14069-1051
$10.19
14091
COVER
14091-0394
$8.60
14092
COVER
14092-0052
$5.54
14092A
COVER
14092-0053
$4.87
16115
CAP-OIL FILLER
16115-0015
$13.75
16115A
CAP-OIL FILLER
16115-1053
$12.20
39111
ROD-TIE
39111-0016
$103.65
42036
SLEEVE
42036-2060
$3.36
49022
GEAR-BEVEL,18T
49022-0021
$129.46
49022A
GEAR-BEVEL,PINION,16T
49022-0022
$147.40
49110
GOVERNOR-ASSY
49110-0011
$113.33
92002
BOLT,6X14
92002-1656
$4.69
92005
FITTING,BREATHER
92005-1127
$17.17
92009
SCREW,64MM
92009-1914
$29.63
92009A
SCREW
92009-2308
$0.43
92015
NUT,25MM
92015-1768
$25.27
92022
WASHER,TOOTHED
92022-1990
$6.22
92022A
WASHER,25.3X32X0.5
92022-225
$5.52
92025
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025A
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025B
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025C
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025D
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025E
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025F
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025G
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025H
SHIM,25.3X36X1.20
92025-1696
Unavailable
92028
BUSHING
92028-1347
$8.51
92033
RING-SNAP
92033-0035
$4.55
92033A
RING-SNAP
92033-0036
$4.55
92037
CLAMP,TUBE
92037-1505
$4.76
92043
PIN,DOWEL,10X14
92043-1037
$0.74
92043A
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,6210CM
92045-1213
$55.61
92049
SEAL-OIL,HTC 30 60 8
92049-0049
$13.57
92049A
SEAL-OIL,YC9Y 22X50X9X13.4
92049-0053
$20.37
92049B
SEAL-OIL,TC14245
92049-1520
$13.87
92049C
SEAL-OIL,HTC 28X45X7
92049-1576
$14.71
92049D
SEAL-OIL,VC-6X10X2.5
92049-2097
$2.13
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O
92055-012
$1.01
92055A
RING-O,ID=13.8
92055-1141
$3.92
92055B
RING-O,20X3
92055-2185
$1.03
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG,PT1/8X7
92066-1227
$5.90
92067
PLUG,DRAIN,10X12
92067-001
$4.41
92152
COLLAR,20.2X28.0
92152-0132
$7.83
92153
BOLT,FLANGED,8X21
92153-0898
$3.90
92153A
BOLT,10X30
92153-0908
$3.35
92171
CLAMP
92171-0476
$3.90
92192
TUBE
92192-0216
$10.90
92200
WASHER,8.2X20.0X2.5
92200-0205
$3.35
92200A
WASHER,17X30X3.5
92200-0210
$3.90
92200B
WASHER,10.2X23X2.5
92200-0211
$3.35
92200C
WASHER,6.2X20X0.5
92200-2036
$1.17
92210
NUT,16MM
92210-0211
$22.01
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,6X35
130BA0635
$0.94
130C
BOLT-FLANGED,8X45
130BA0845
$1.61
130D
BOLT-FLANGED,10X25
130BA1025
$3.40
130E
BOLT-FLANGED,6X20
130CA0620
$1.70
601
BEARING-BALL
601B6008
$26.46
601A
BEARING-BALL,#6202C3
601B6202
$8.64
601B
BALL BEARING,#6206
601B6206
$22.50
601C
BEARING-BALL,#6303C3
601B6303
$8.29
601D
BEARING-BALL
601B6303U
$26.36
601E
BEARING-BALL,#6305C3
601B6305
$25.78
601F
BEARING-BALL,#6305U
601B6305U
$25.54
