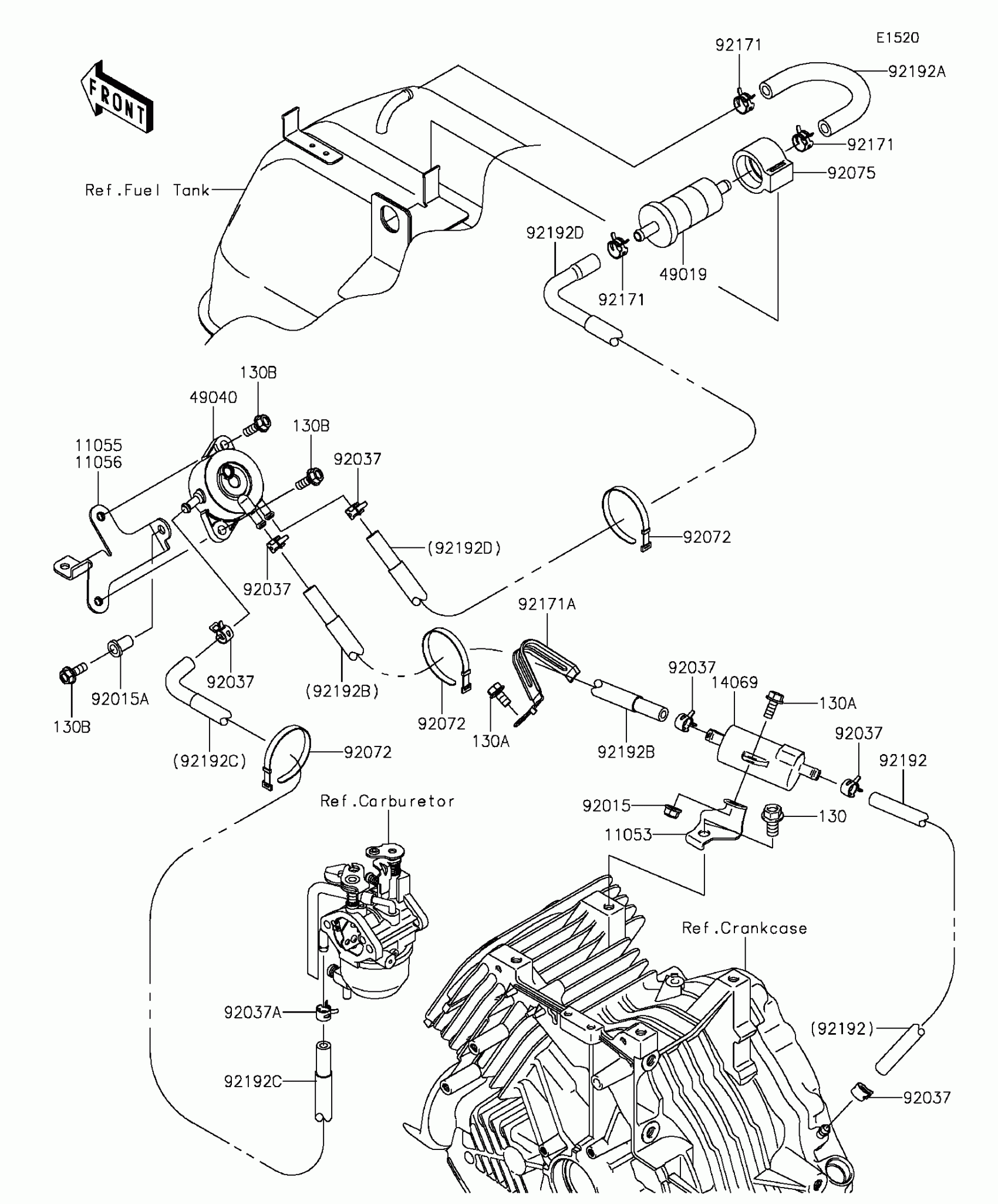

Kawasaki MULE™ 610 4x4 XC SE Fuel Pump(FEF/FFF) Diagram

Description

Price

11053

BRACKET,BREATHER

11053-1711

$5.86

11056

BRACKET,PUMP-FUEL

11056-4297

$7.81

14069

BREATHER

14069-0003

$18.82

49019

FILTER-FUEL

49019-1055

$22.97

49040

PUMP-FUEL

49040-7001

$35.57

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT,POP,6MM

92015-1759

$5.00

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-2113

$1.03

92072

BAND,L=186

92072-056

$5.00

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0515

$6.38

92171A

CLAMP

92171-0842

$8.68

92192

TUBE,5.8X10.8X270

92192-0204

$6.51

92192A

TUBE,7.5X12.5X200

92192-0243

$18.75

92192B

TUBE,5.8X10.8X370

92192-0825

$20.70

92192C

TUBE,CARB.-PUMP FUEL

92192-0826

$58.04

92192D

TUBE

92192-0827

$42.74

130

BOLT-FLANGED,8X16

130AA0816

$0.85

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20
