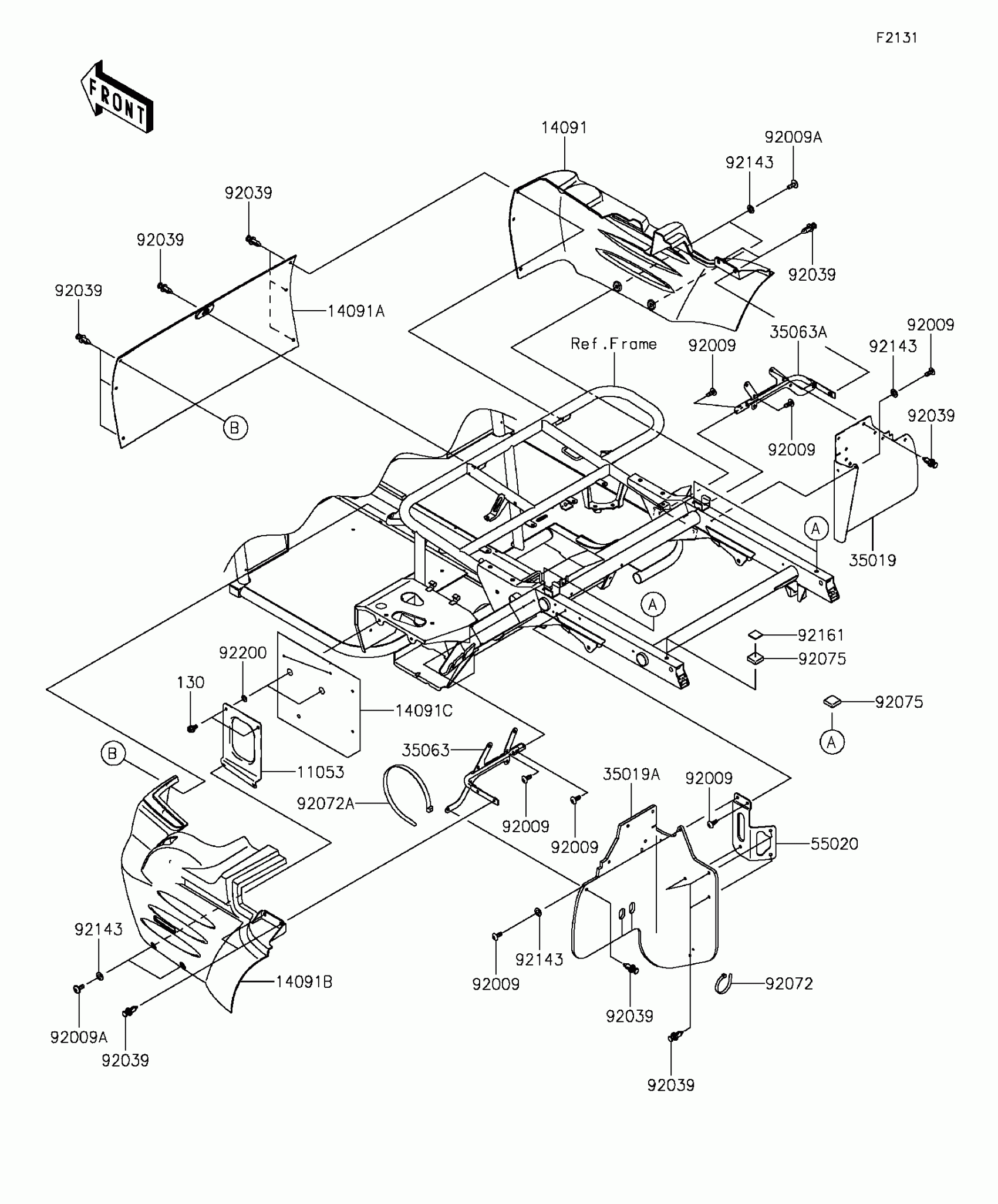

Kawasaki MULE™ 610 4x4 XC SE Frame Fittings(Rear) Diagram

Description

Price

11053

BRACKET

11053-0857

$50.18

14091

COVER,REAR SIDE,RH,F.BLACK

14091-0224-6Z

$59.20

14091A

COVER,UNDER SEAT,CNT,F.BLACK

14091-0341-6Z

$37.59

14091B

COVER,REAR SIDE,LH,F.BLACK

14091-0395-6Z

Unavailable

14091C

COVER

14091-0464

$27.46

35019

FLAP,RR,FR,RH

35019-0029

$37.63

35019A

FLAP,RR,FR,LH

35019-7512

Unavailable

35063

STAY,LH

35063-0784

$74.00

35063A

STAY,RH

35063-0785

$78.78

55020

GUARD,COOLING FAN

55020-7527

$15.04

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1229

$1.19

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=368.3

92072-3872

$1.59

92075

DAMPER

92075-1882

$8.10

92143

COLLAR

92143-1087

$4.31

92161

DAMPER

92161-7520

$0.85

92200

WASHER,7.04X12.5X0.6

92200-0234

$2.39

130

BOLT-FLANGED,6X12

130BA0612

$1.72
