Description

Price

11056

BRACKET

11056-2007

$3.59

14091

COVER,FR

14091-0401

$14.81

14091A

COVER,RR

14091-0402

$14.81

16171

LINK

16171-0007

$5.60

16171A

LINK

16171-0031

$13.34

21177

CONTROLLER

21177-0003

$158.79

39129

SPRING-GOVERNOR

39129-0006

$7.76

49103

ARM-GOVERNOR

49103-1055

$13.93

49113

PANEL-COMP-CONTROL

49113-0006

$100.60

49113A

PANEL-COMP-CONTROL

49113-2196

$30.50

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92002

BOLT,6X28

92002-2269

$1.14

92009

SCREW,4X30

92009-7002

$0.62

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92028

BUSHING,GOVERNOR

92028-2156

$2.38

92039

RIVET,BLIND,4.0X9.2

92039-1163

$3.07

92144

SPRING

92144-2266

$4.81

92145

SPRING,RETURN

92145-0301

$5.60

92145A

SPRING

92145-7005

$0.92

92152

COLLAR,9.1X13.95X42

92152-7501

$7.65

92153

BOLT,6X12

92153-7043

$0.59

130

BOLT-FLANGED,5X8

130BA0508

$1.86

130A

BOLT-FLANGED,6X10

130BA0610

$1.20

130B

BOLT-FLANGED,8X60

130BA0860

$1.67

130C

BOLT-FLANGED,6X14

130BB0614

$2.49

220

SCREW-PAN-CROS,5X22

220AA0522

$0.75

311

NUT-HEX,6MM

311AA0600

$0.96

411

WASHER-PLAIN,5MM

411AA0500

$0.56

411A

WASHER-PLAIN,6MM

411AA0600

$2.92

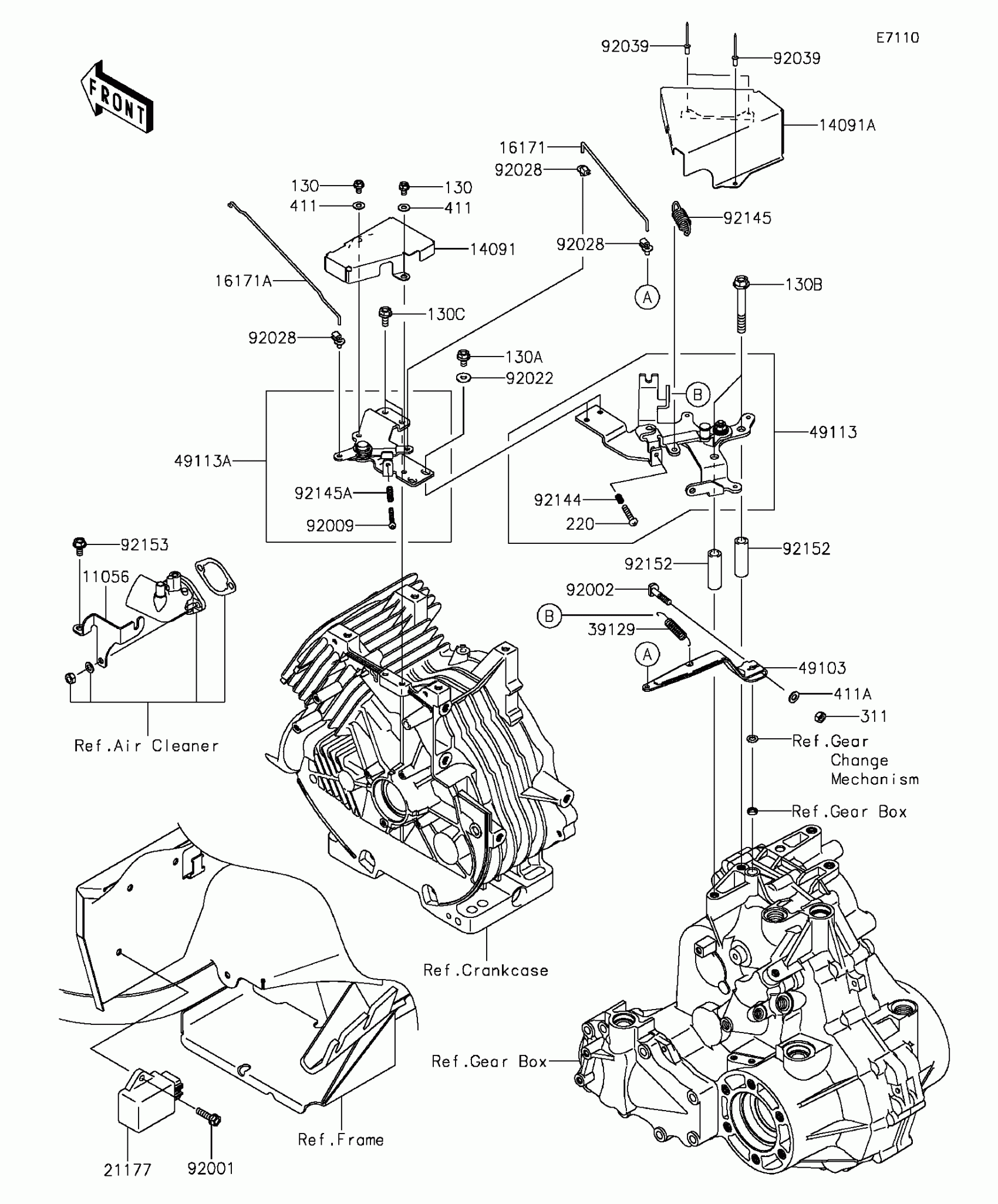

Kawasaki MULE™ 610 4x4 XC SE Control Diagram

BRACKET

COVER,FR

COVER,RR

LINK

LINK

CONTROLLER

SPRING-GOVERNOR

ARM-GOVERNOR

PANEL-COMP-CONTROL

PANEL-COMP-CONTROL

BOLT,FLANGED,6X22

BOLT,6X28

SCREW,4X30

WASHER,6.2X15X1.2

BUSHING,GOVERNOR

RIVET,BLIND,4.0X9.2

SPRING

SPRING,RETURN

SPRING

COLLAR,9.1X13.95X42

BOLT,6X12

BOLT-FLANGED,5X8

BOLT-FLANGED,6X10

BOLT-FLANGED,8X60

BOLT-FLANGED,6X14

SCREW-PAN-CROS,5X22

NUT-HEX,6MM

WASHER-PLAIN,5MM

WASHER-PLAIN,6MM
