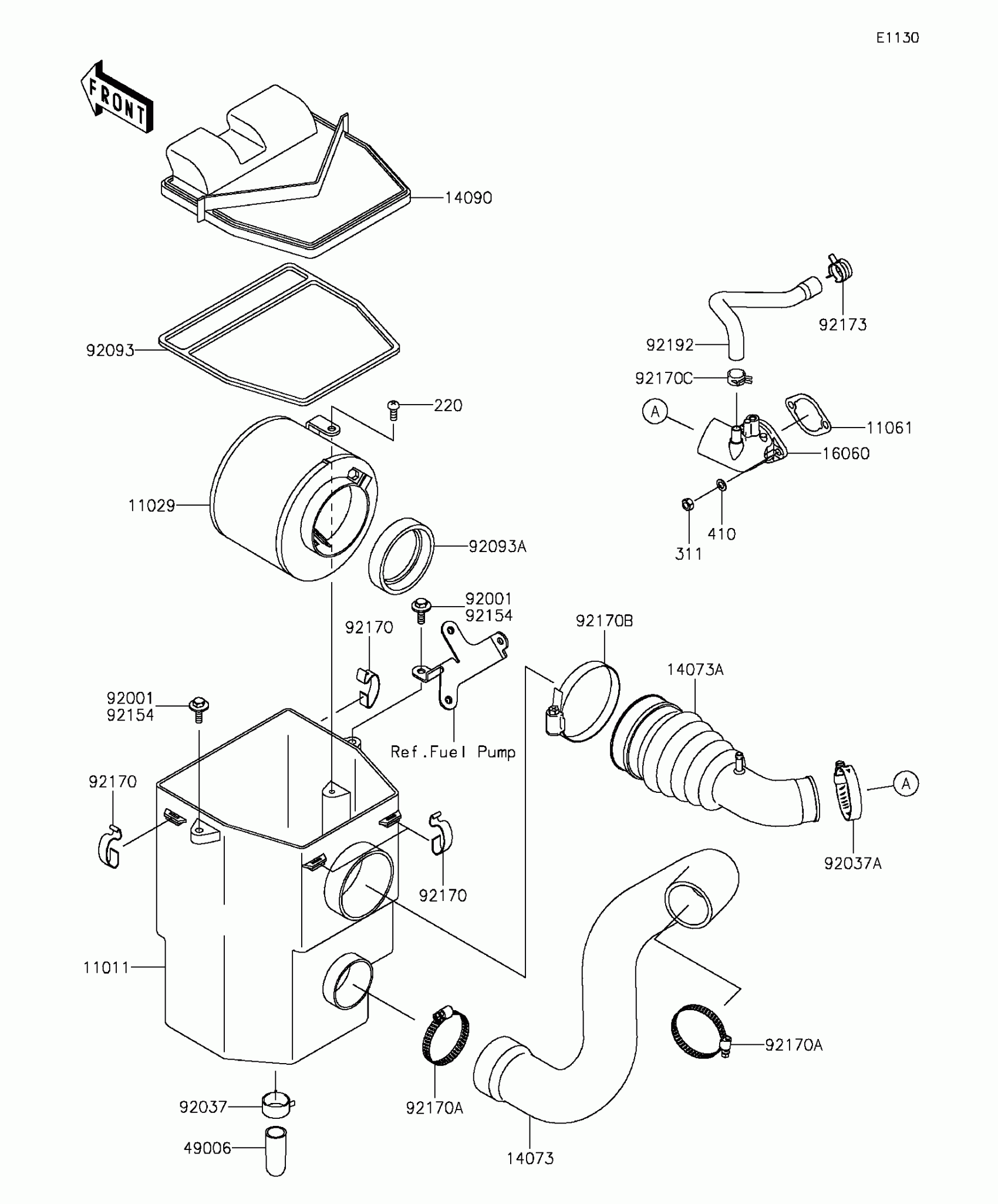

Kawasaki MULE™ 610 4x4 XC SE Air Cleaner(FEF/FFF) Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1367

$88.64

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$41.02

11061

GASKET,CHOKE

11061-7026

$1.09

14073

DUCT,FRAME-AIR FILTER

14073-0072

$40.81

14073A

DUCT,AIR FILTER-IN.PIPE

14073-0193

$30.02

14090

COVER,AIR FILTER

14090-1106

$29.89

16060

PIPE-INTAKE

16060-2224

$133.82

49006

BOOT

49006-1351

$7.51

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP

92037-506

$5.22

92093

SEAL,AIR FILTER

92093-1241

$12.96

92093A

SEAL,DUST

92093-1322

$9.82

92154

BOLT,WP,6X20

92154-1516

$1.48

92170

CLAMP,AIR FILTER

92170-1211

$7.33

92170A

CLAMP

92170-1674

$11.76

92170B

CLAMP

92170-1679

$6.63

92170C

CLAMP

92170-7003

$1.15

92173

CLAMP

92173-7003

$2.12

92192

TUBE,BREATHER

92192-2207

$5.29

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

311

NUT-HEX,6MM

311AA0600

$0.96

410

WASHER-PLAIN-SMALL

410AA0600

$1.31
