2014 Kawasaki Mule™ 610 4x4 XC Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2014 Kawasaki Mule™ 610 4x4 XC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

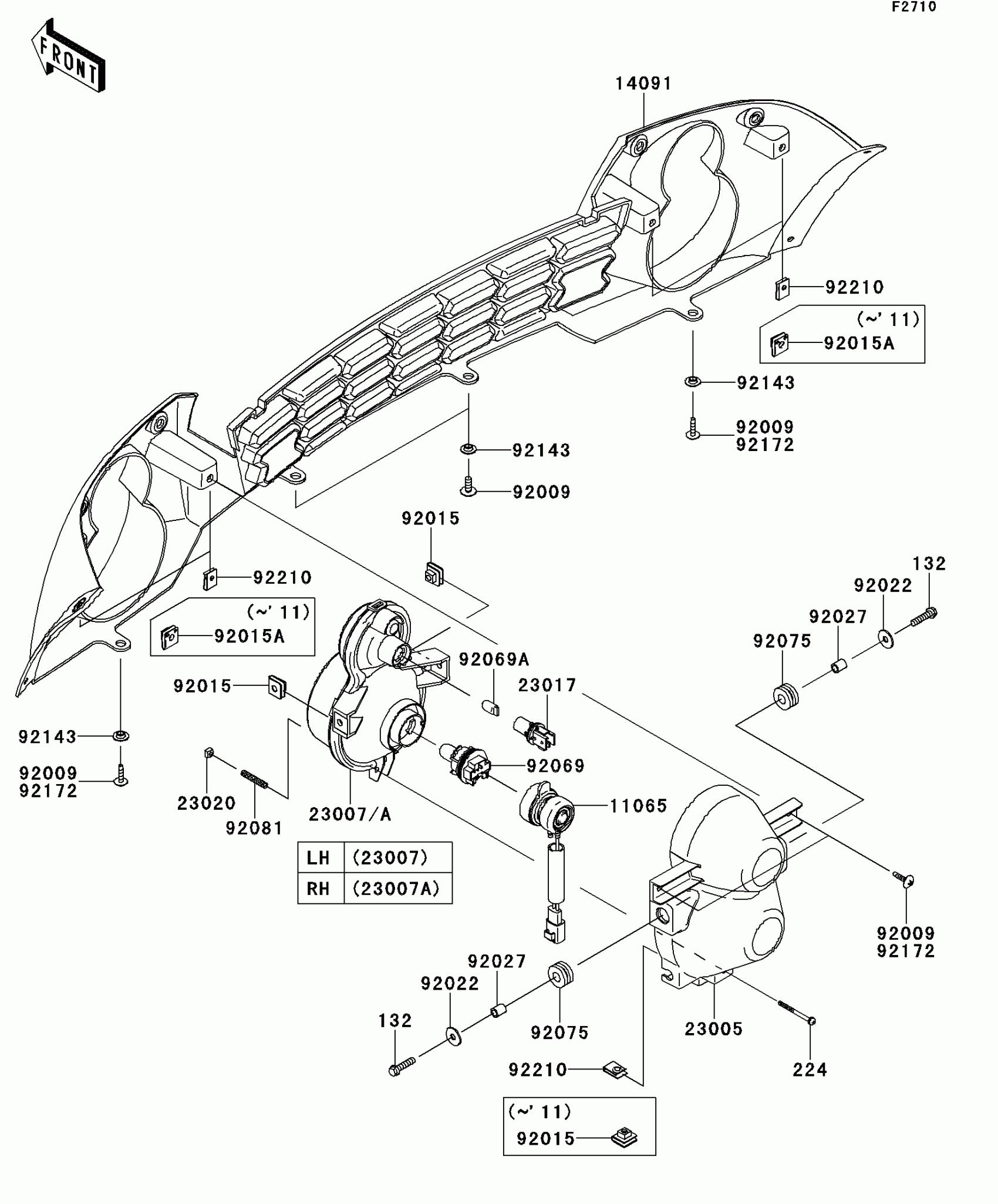

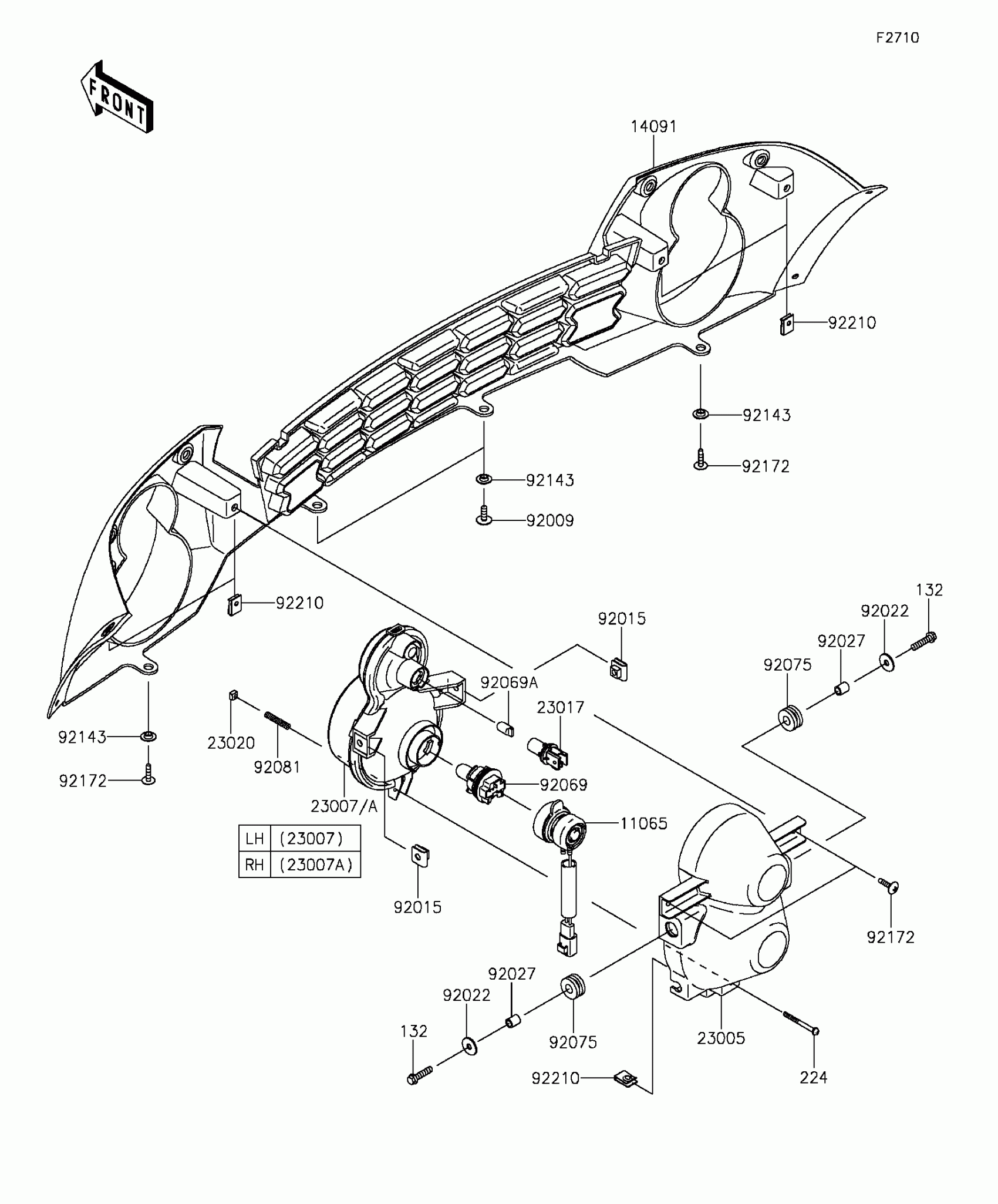

2014 Kawasaki Mule™ 610 4x4 XC Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,HEAD LAMP

11065-0104

1
Out of stock

14091

COVER,FRONT GRILLE,F.BLACK

14091-0342-6Z

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-0005

1
Out of stock

23007

LENS-COMP,HEAD LAMP,LH

23007-0047

1
Out of stock

23007A

LENS-COMP,HEAD LAMP,RH

23007-0048

1
Out of stock

23017

SOCKET,HEAD LAMP

23017-0002

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 30/30W

92069-0012

1
Out of stock

92069A

BULB,12V 5W

92069-0013

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92172

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

132

1

$2.29

In stock

224

SCREW-PAN-WP-CROS,4X45

224AA0445

1
Out of stock
