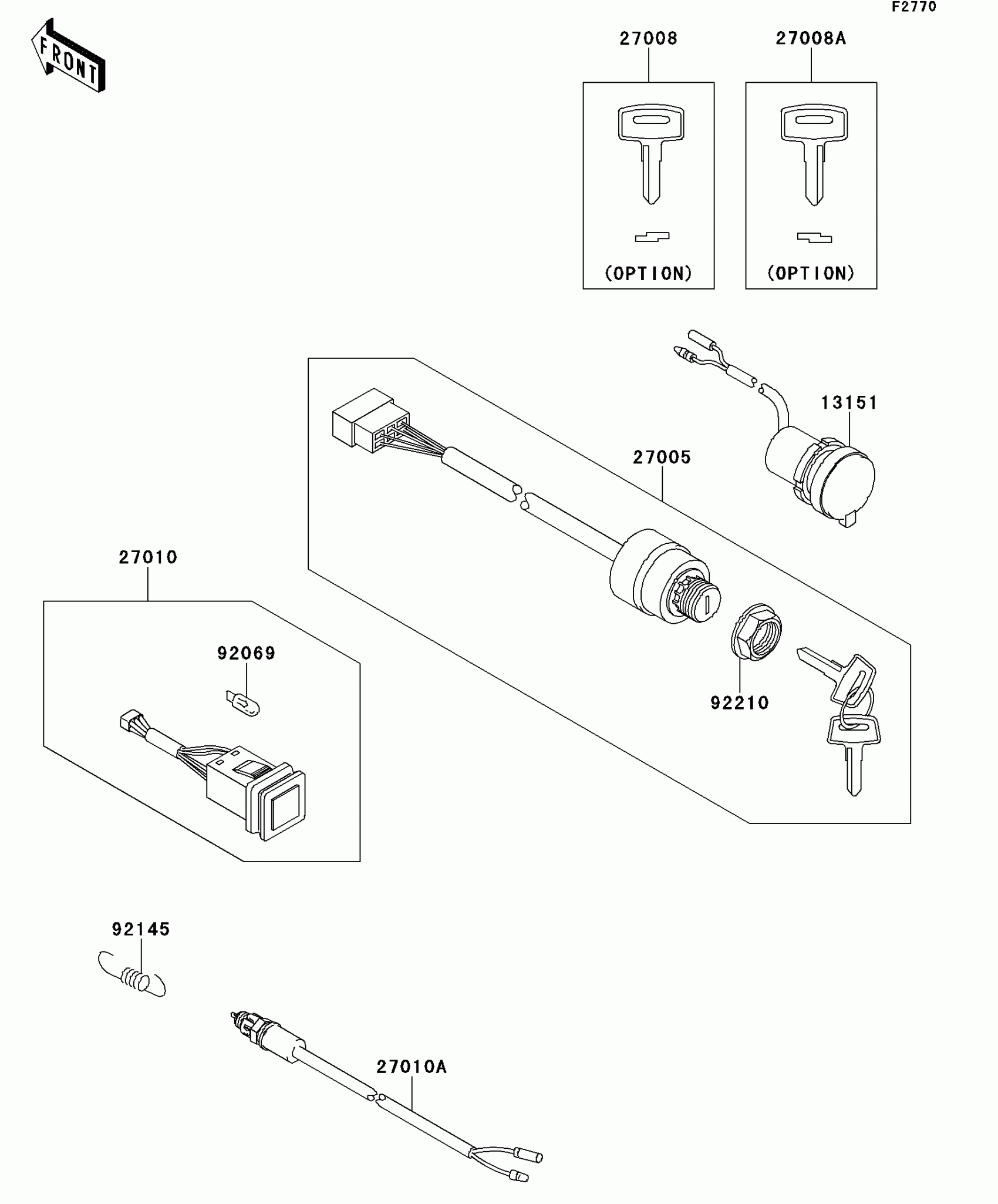

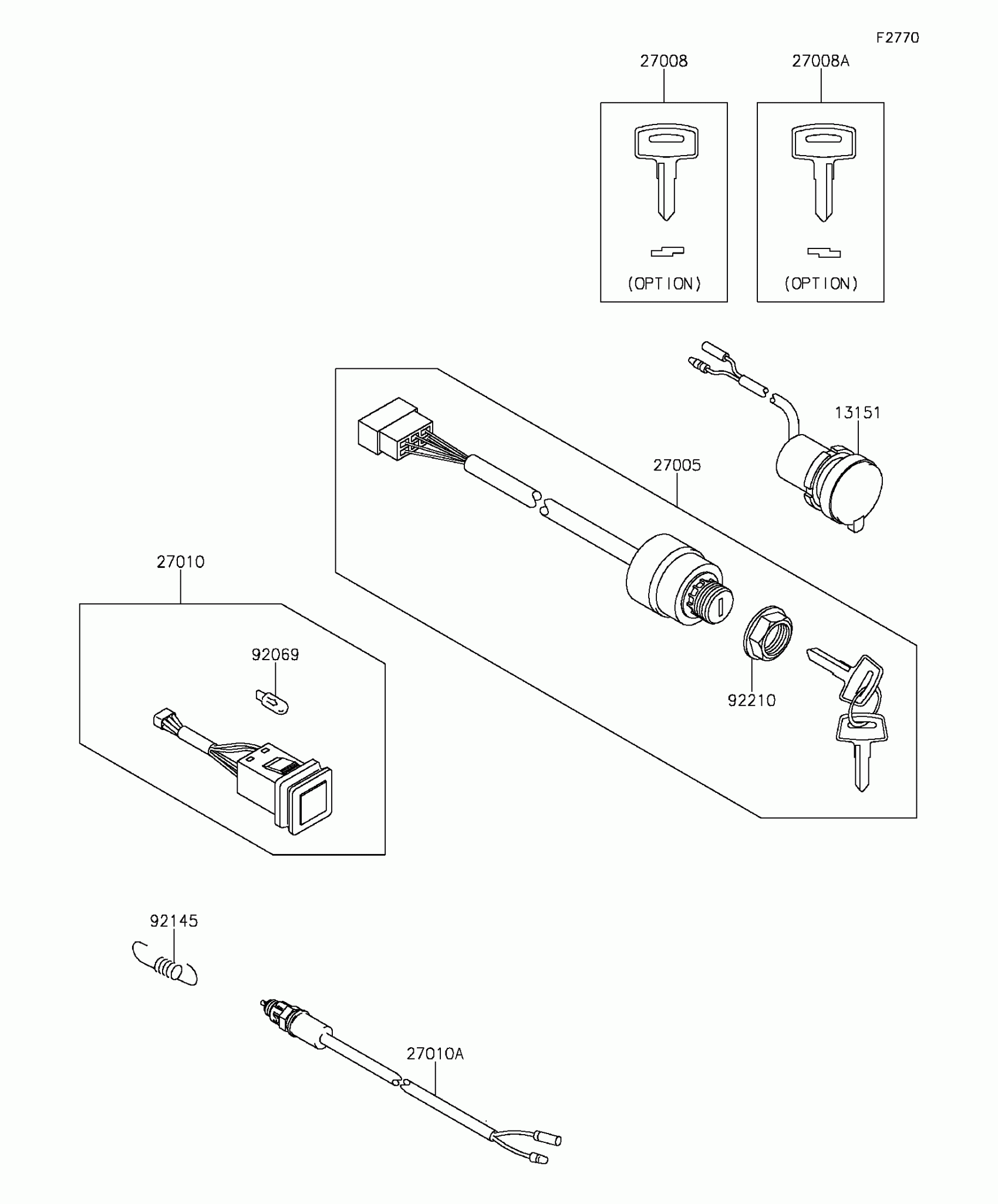

Kawasaki MULE™ 610 4x4 XC Ignition Switch Diagram

#

Description
Price

13151

SWITCH-COMP,D.C.TERMINAL

13151-0003

$145.52

27005

SWITCH-ASSY-IGNITION

27005-0011

$84.25

27008

KEY-LOCK,BLANK

27008-1153

$13.56

27008A

KEY-LOCK,BLANK

27008-1157

$13.56

27010

SWITCH,HEAD LAMP

27010-0105

Unavailable

27010A

SWITCH,REAR BRAKE

27010-1475

$27.07

92069

BULB,12V 1.7W

92069-0036

$2.71

92145

SPRING,REAR BRAKE SWITCH

92145-7508

$6.12

92210

NUT,IGNITION SWITCH

92210-1264

$4.53
