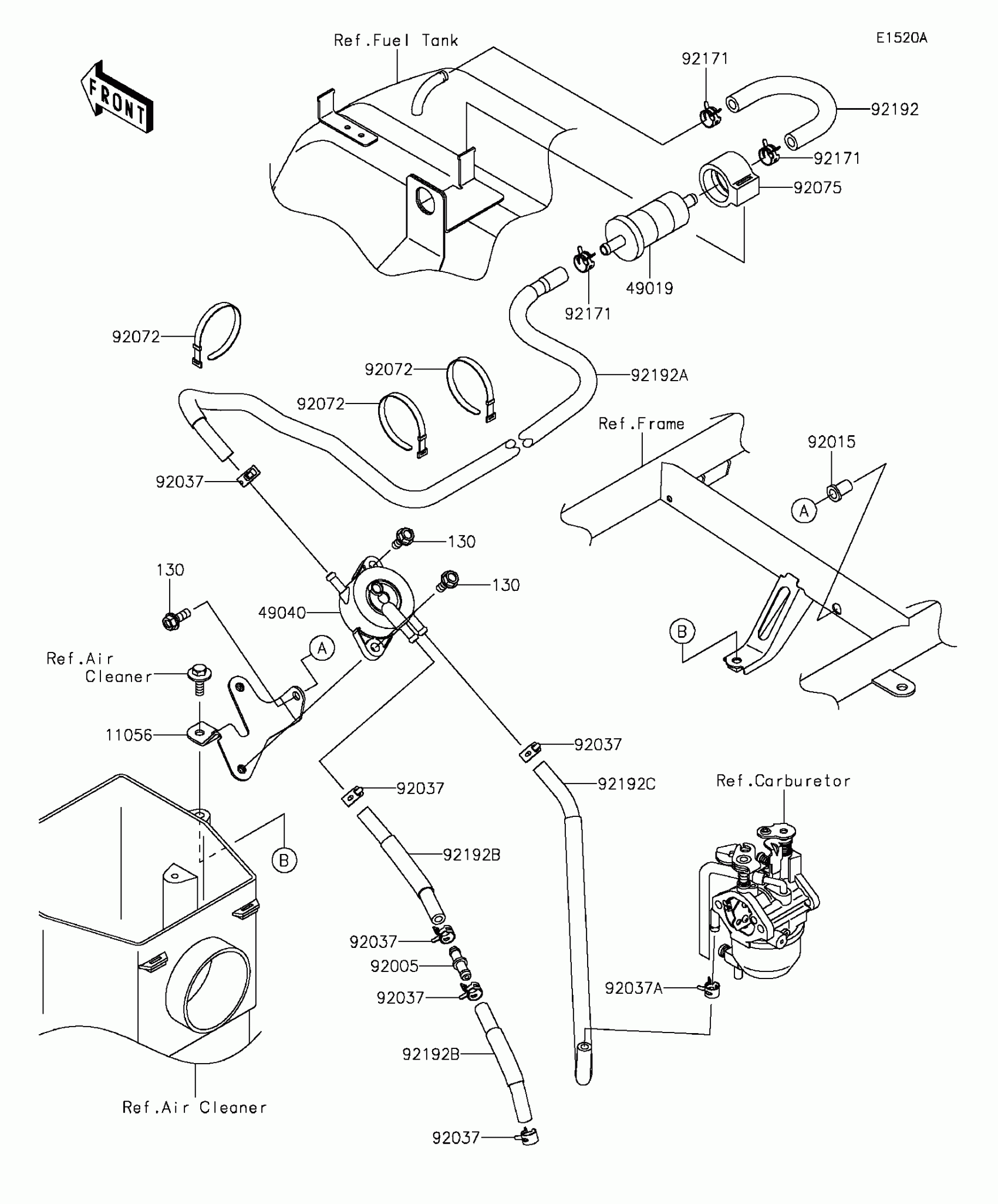

Kawasaki MULE™ 610 4x4 XC Fuel Pump(DGF) Diagram

Description

Price

11056

BRACKET,PUMP FUEL

11056-7402

$10.32

49019

FILTER-FUEL

49019-1055

$22.97

49040

PUMP-FUEL

49040-0005

$115.67

92005

FITTING

92005-0789

$20.99

92015

NUT,POP,6MM

92015-1759

$5.00

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-2113

$1.03

92072

BAND,L=186

92072-056

$5.00

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0515

$6.38

92192

TUBE,7.5X12.5X200

92192-0243

$18.75

92192A

TUBE,FILTER FUEL-PUMP FUEL

92192-1453

$89.12

92192B

TUBE,CRAB.INSULATOR-PUMP

92192-1613

$6.39

92192C

TUBE,PUMP FUEL-CARB.

92192-1614

$58.04

130

BOLT-FLANGED,6X16

130BA0616

$1.20
