2015 Kawasaki Mule™ 610 4x4 XC Fuel Pump Diagram

← All diagrams

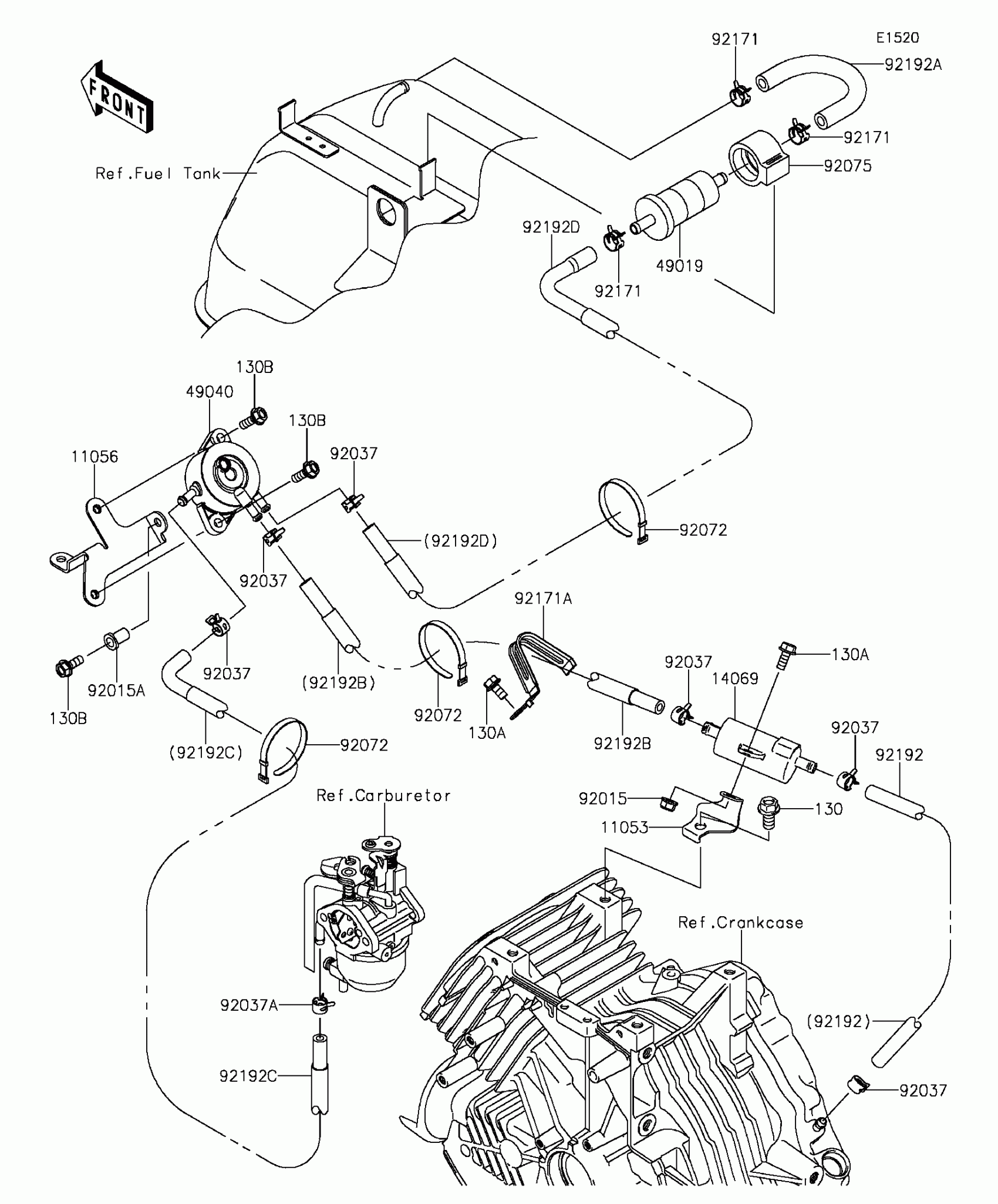

Find the part on the Fuel Pump diagram for your 2015 Kawasaki Mule™ 610 4x4 XC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki Mule™ 610 4x4 XC Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,BREATHER

11053-1711

1

$5.12

In stock

11056

BRACKET,PUMP-FUEL

11056-4297

1
Out of stock

14069

BREATHER

14069-0003

1

$14.78

In stock

49019

FILTER-FUEL

49019-1055

1
Out of stock

49040

PUMP-FUEL

49040-7001

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92015A

NUT,POP,6MM

92015-1759

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92171

CLAMP

92171-0515

1

$5.56

In stock

92171A

CLAMP

92171-0842

1
Out of stock

92192

TUBE,5.8X10.8X270

92192-0204

1
Out of stock

92192A

TUBE,7.5X12.5X200

92192-0243

1
Out of stock

92192B

TUBE,5.8X10.8X370

92192-0825

1
Out of stock

92192C

TUBE,CARB.-PUMP FUEL

92192-0826

1
Out of stock

92192D

TUBE

92192-0827

1
Out of stock

130

BOLT-FLANGED,8X16

130AA0816

1

$0.83

In stock

130A

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130B

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
