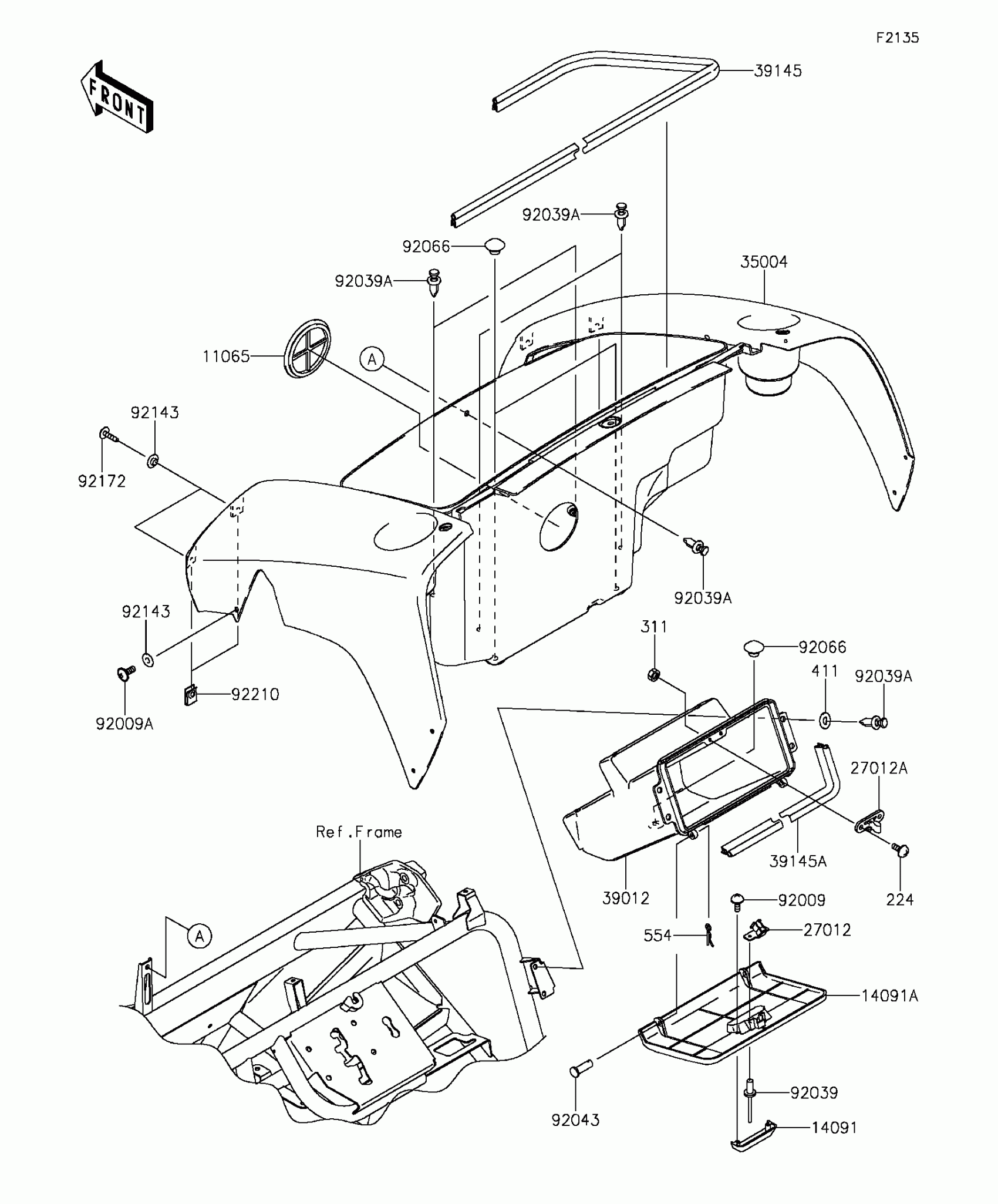

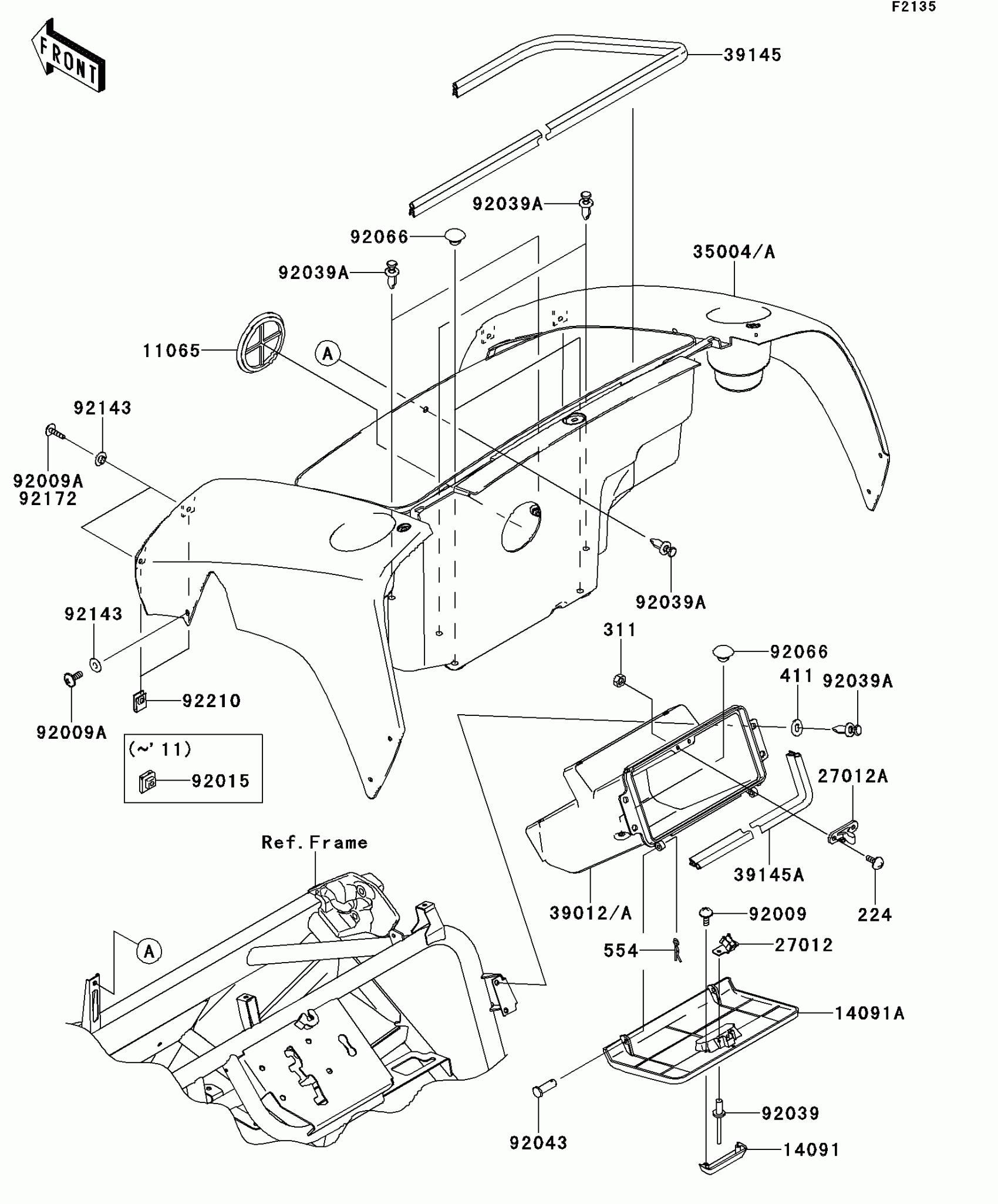

Kawasaki MULE™ 610 4x4 XC Front Box Diagram

Description

Price

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

14091

COVER,STORAGE GRIP,GRAY

14091-1659-284

$8.18

14091A

COVER,CONTROL PANEL,GRAY

14091-1660-284

$27.37

27012

HOOK

27012-1607

$7.75

27012A

HOOK

27012-1612

$3.92

35004

FENDER-FRONT,STORAGE,S.BLACK

35004-0048-839

$222.19

39012

CASE-STORAGE,F.BLACK

39012-1061-6Z

$42.34

39145

TRIM-SEAL,L=1940

39145-0007

$41.96

39145A

TRIM-SEAL,L=774

39145-1130

$22.86

92009

SCREW,TAPPING,4X12

92009-1444

$3.21

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1041

$3.65

92039A

RIVET

92039-1229

$1.19

92043

PIN,6X14.5

92043-125

$6.57

92066

PLUG

92066-1485

$2.44

92143

COLLAR

92143-1087

$4.31

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

224

SCREW-PAN-WP-CROS,4X12

224AB0412

$0.49

311

NUT-HEX,4MM

311AB0400

$0.62

411

WASHER-PLAIN,8MM

411AA0800

$0.96

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95
