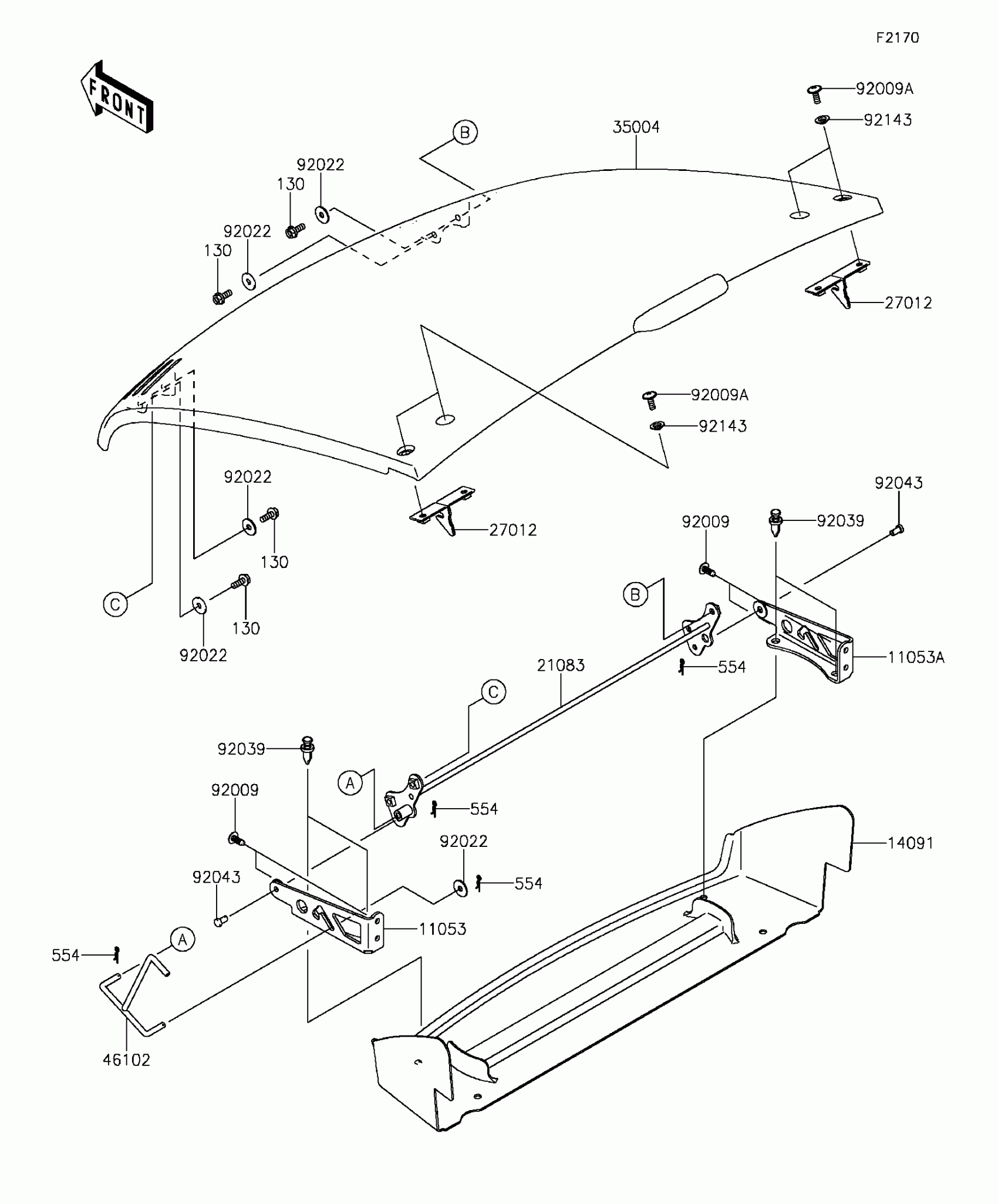

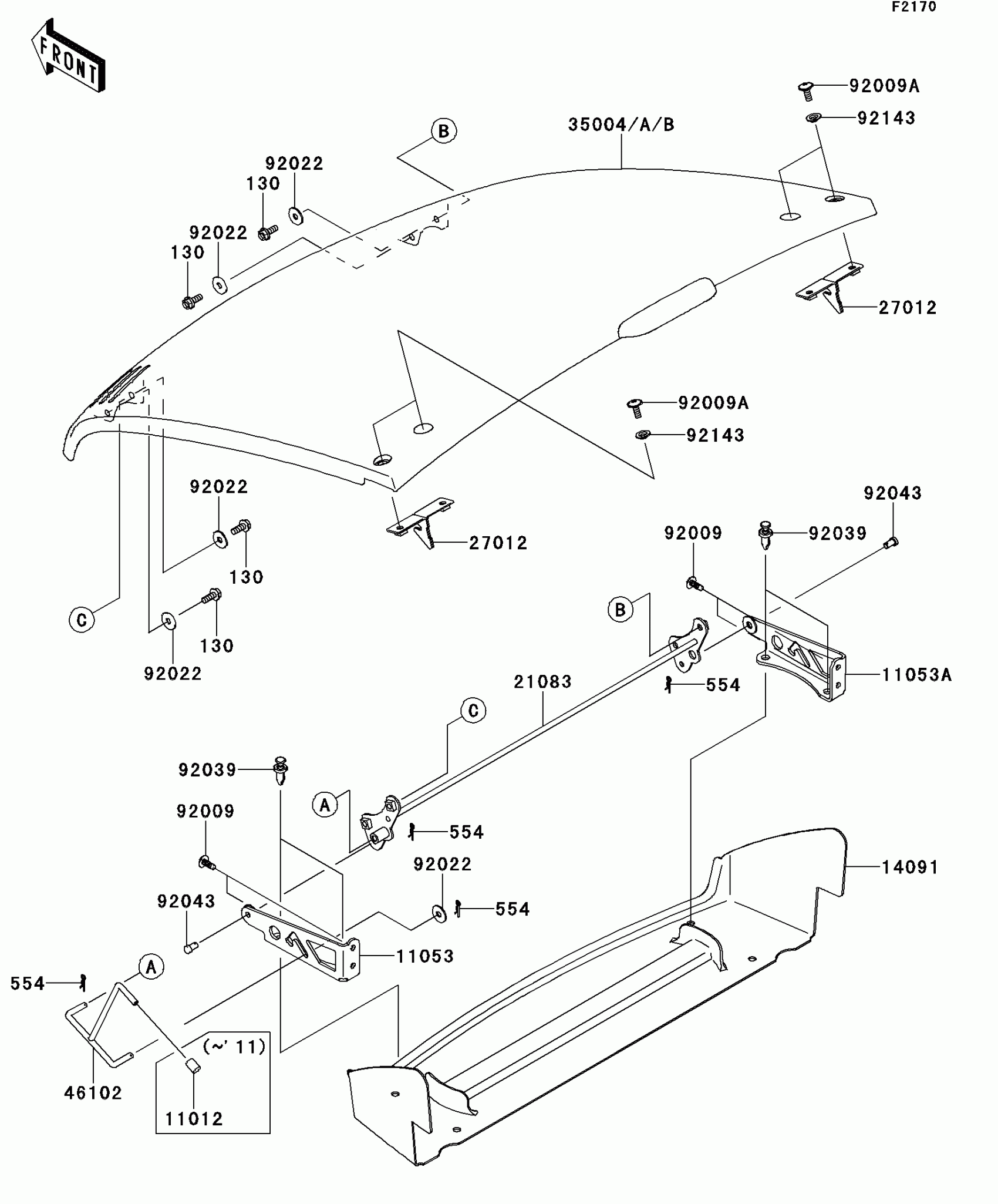

Kawasaki MULE™ 610 4x4 XC Fenders Diagram

Description

Price

11053

BRACKET

11053-1451

$9.65

11053A

BRACKET

11053-1452

$9.65

14091

COVER

14091-0368

$74.58

21083

ARM

21083-0021

$27.03

27012

HOOK

27012-0065

$6.16

35004

FENDER-FRONT,HOOD,S.BLACK

35004-0029-839

$80.59

46102

ROD

46102-0048

$20.34

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET

92039-1229

$1.19

92043

PIN,6X9

92043-1626

$2.26

92143

COLLAR

92143-1087

$4.31

130

BOLT-FLANGED,6X16

130BB0616

$2.06

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95
