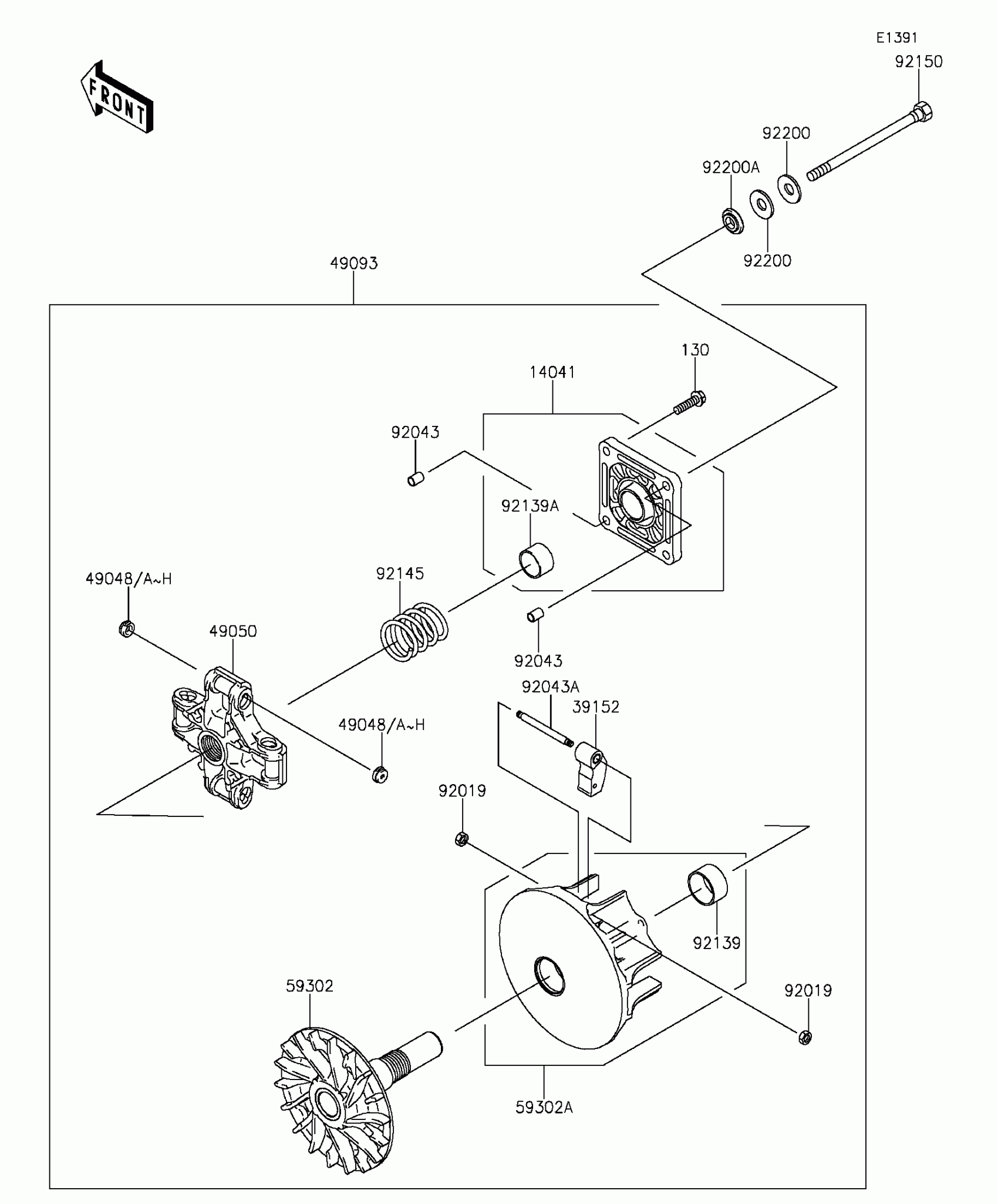

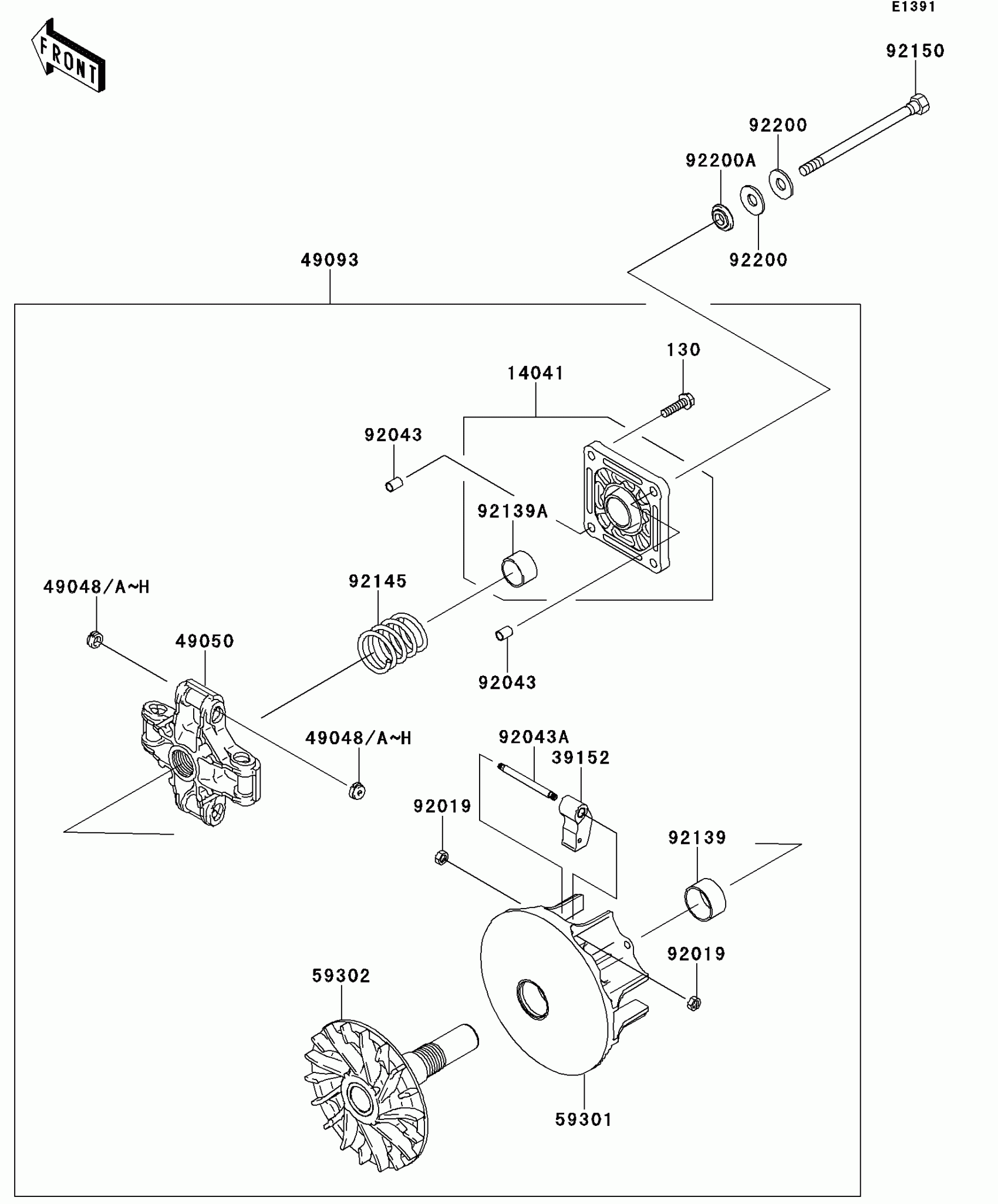

Kawasaki MULE™ 610 4x4 XC Drive Converter Diagram

Description

Price

14041

COVER-COMP

14041-0022

$89.94

39152

WEIGHT-RAMP

39152-0031

$53.35

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$14.82

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-0012

$168.80

49093

CONVERTER-ASSY-DRIVE

49093-0031

$642.46

59302

SHEAVE-COMP,FIXED

59302-0025

Unavailable

59302A

SHEAVE-COMP

59302-0084

$204.14

92019

NUT,LOCK,6MM

92019-008

$4.26

92043

PIN,8.2X10X14

92043-1264

$0.64

92043A

92043-1699

$16.04

92139

BUSHING

92139-0049

$15.21

92139A

BUSHING

92139-0050

$15.21

92145

SPRING

92145-0742

$37.83

92150

BOLT,12X163.5

92150-1008

$27.50

92200

WASHER

92200-0249

$4.92

92200A

WASHER

92200-1634

$9.07

130

BOLT-FLANGED,8X30

130CA0830

$1.08
