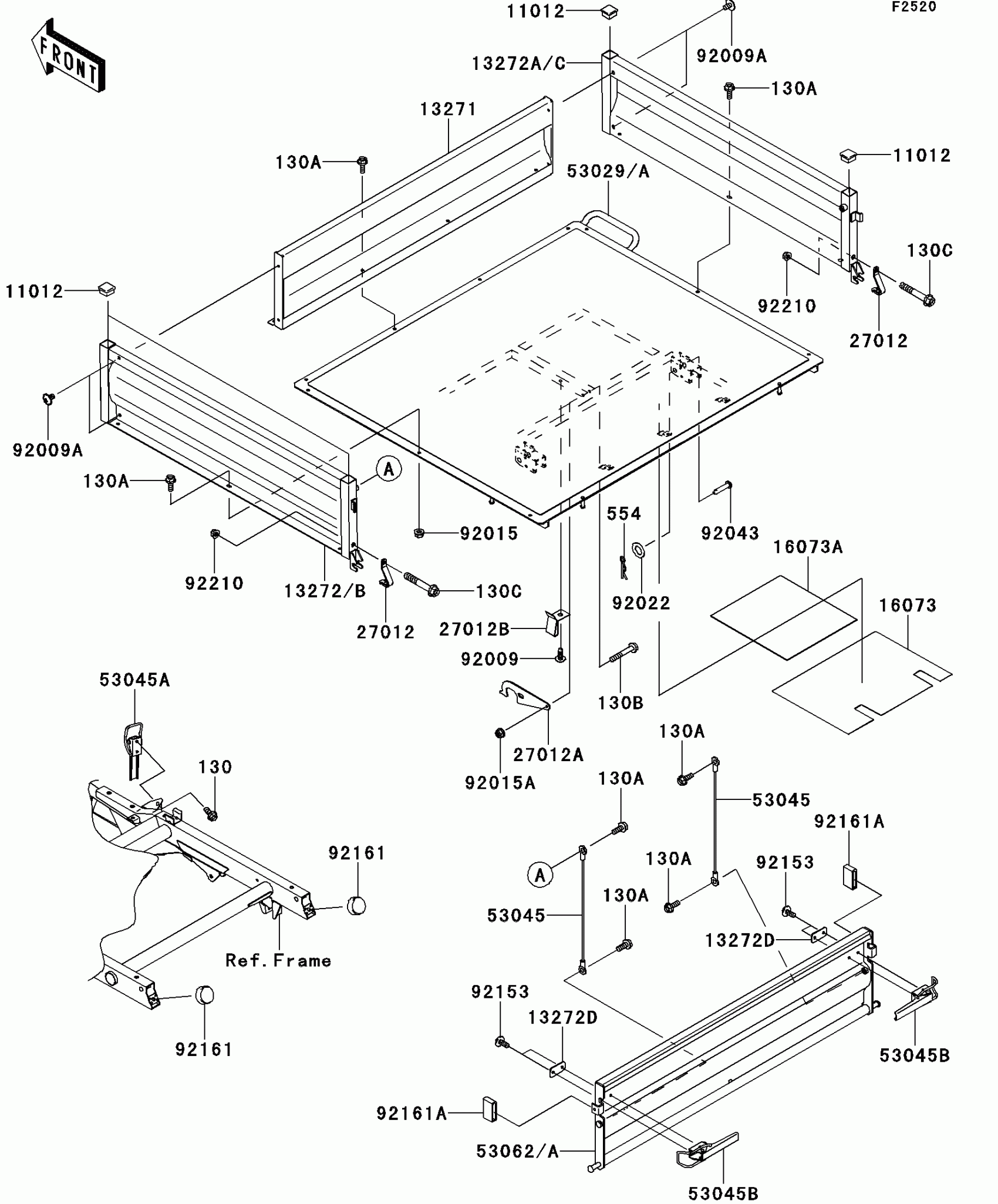

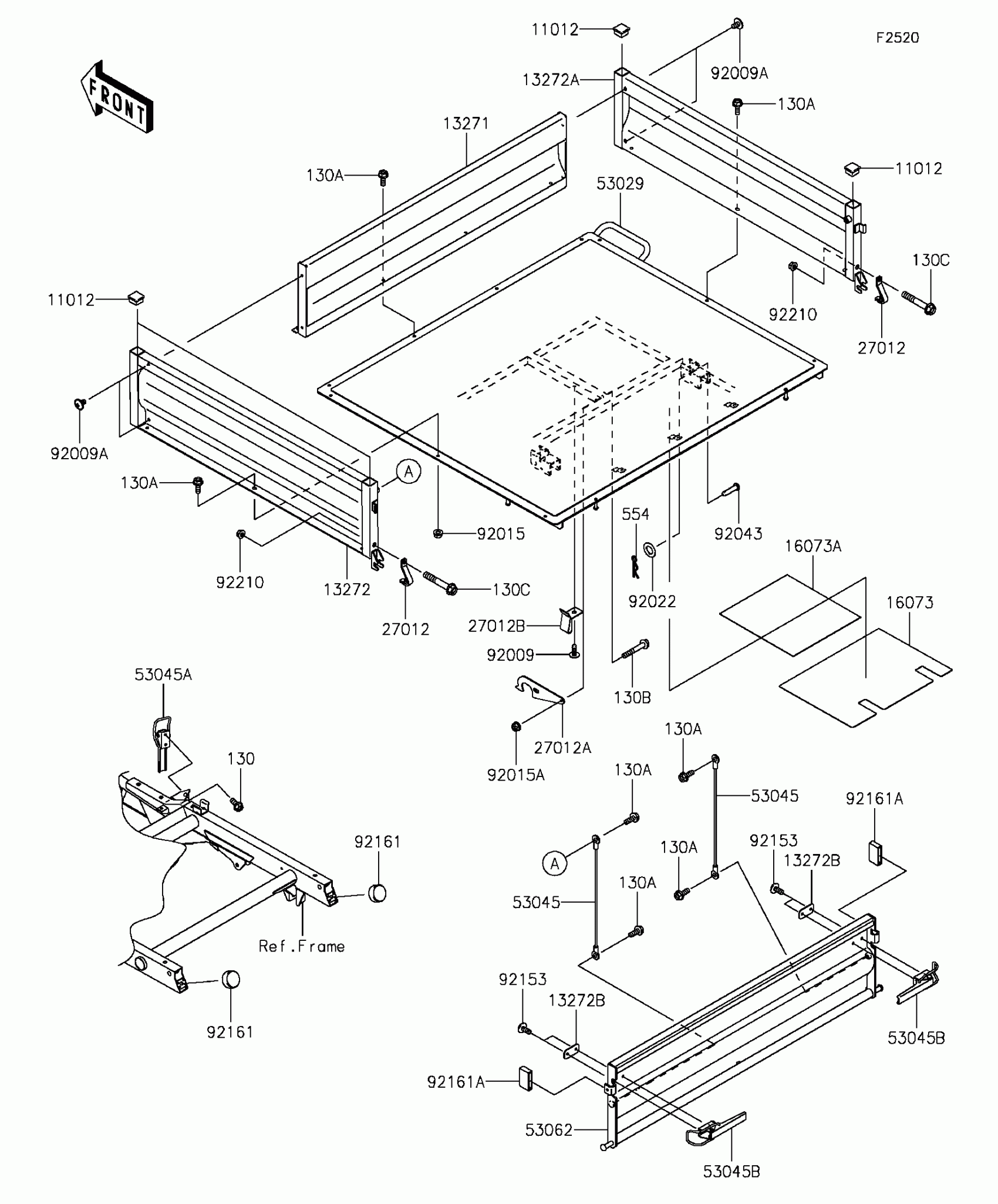

Kawasaki MULE™ 610 4x4 XC Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$6.32

13271

PLATE,CARRIER,SIDE,FR,BLACK

13271-0394-10

$203.77

13272B

PLATE,LH,BLACK

13272-1134-10

$207.31

13272C

PLATE,RH,BLACK

13272-1135-10

$207.31

13272D

PLATE

13272-7516

$7.35

16073

INSULATOR,CARRIER

16073-0040

$55.42

16073A

INSULATOR

16073-7501

$49.62

27012

HOOK,TAIL GATE

27012-0022

$6.43

27012A

HOOK

27012-0044

$31.01

27012B

HOOK,CARRIER

27012-1445

$12.92

53029

CARRIER,BLACK

53029-0088-10

$1,247.97

53045

HOOK-ASSY,TAIL GATE

53045-0006

$26.56

53045A

HOOK-ASSY

53045-1063

$23.47

53045B

HOOK-ASSY

53045-7503

$23.47

53062

GATE-TAIL,BLACK

53062-0303-10

$288.08

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X10

92009-1661

$4.31

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92043

PIN,12X54

92043-1451

$9.73

92153

BOLT,SOCKET,6X14

92153-1361

$2.61

92161

DAMPER

92161-1065

$3.73

92161A

DAMPER

92161-7519

$3.52

92210

NUT,FLANGED,8MM

92210-0555

$2.03

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BB0616

$2.06

130B

BOLT-FLANGED,6X40

130BB0640

$3.13

130C

BOLT-FLANGED,8X50

130BB0850

$4.73

554

PIN-SNAP,12MM

554DA1200

$3.96
