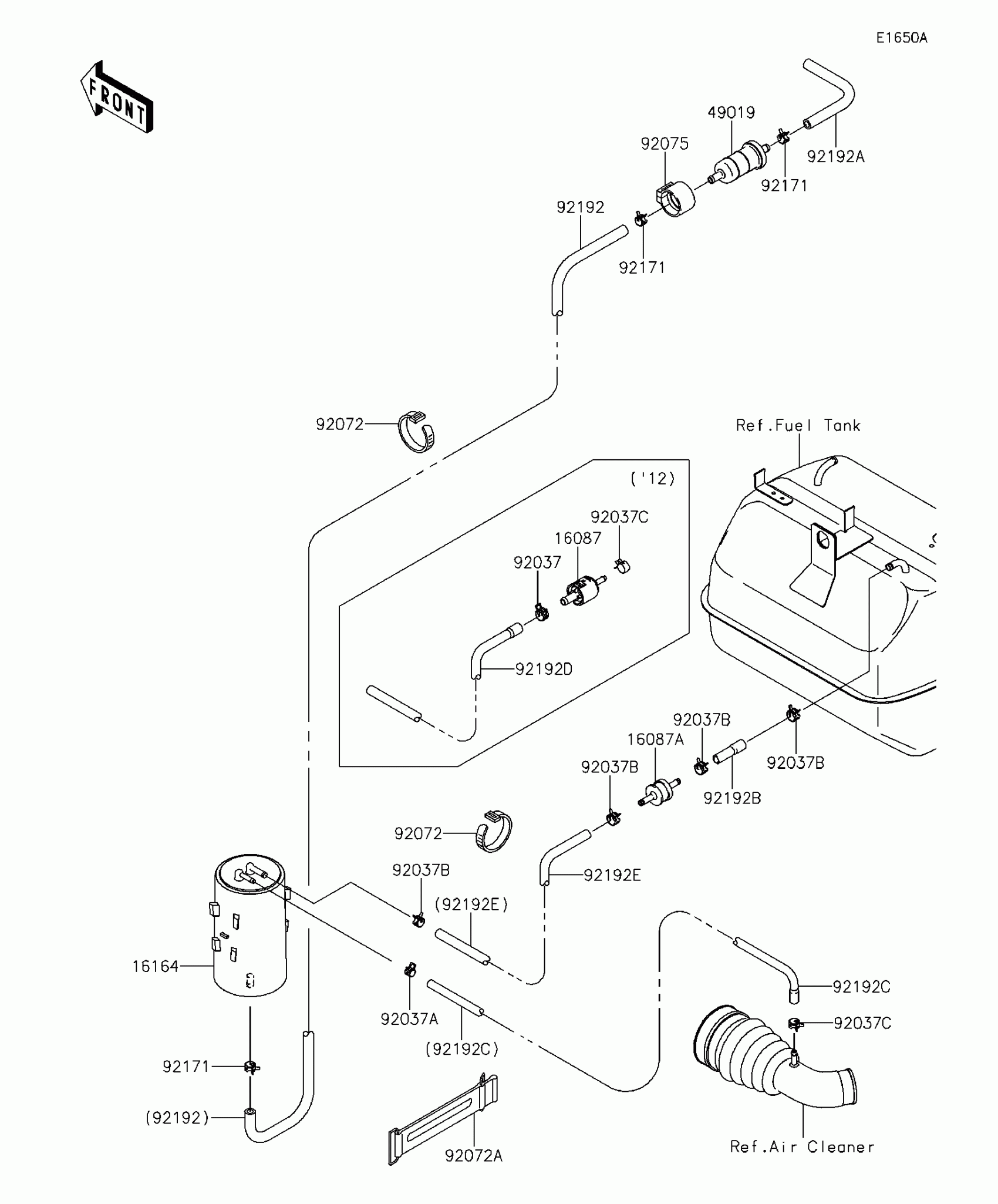

Kawasaki MULE™ 610 4x4 XC CAMO Fuel Evaporative System(ECF-EFF) Diagram

Description

Price

16087A

VALVE-CHECK

16087-0703

$37.65

16164

CANISTER

16164-0007

Unavailable

49019

FILTER-FUEL

49019-1055

$22.97

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-1505

$4.76

92037C

CLAMP

92037-2113

$1.03

92072

BAND,L=186

92072-056

$5.00

92072A

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0515

$6.38

92192

TUBE,CANISTER-FILTER

92192-0592

$10.98

92192A

TUBE,FILTER-AIR

92192-0609

$6.10

92192B

TUBE,TANK-CHECK VALVE

92192-0769

$3.66

92192C

TUBE,CANISTER-DUCT

92192-1027

$10.78

92192E

TUBE,5.8X10.8X565

92192-1177

$12.18
