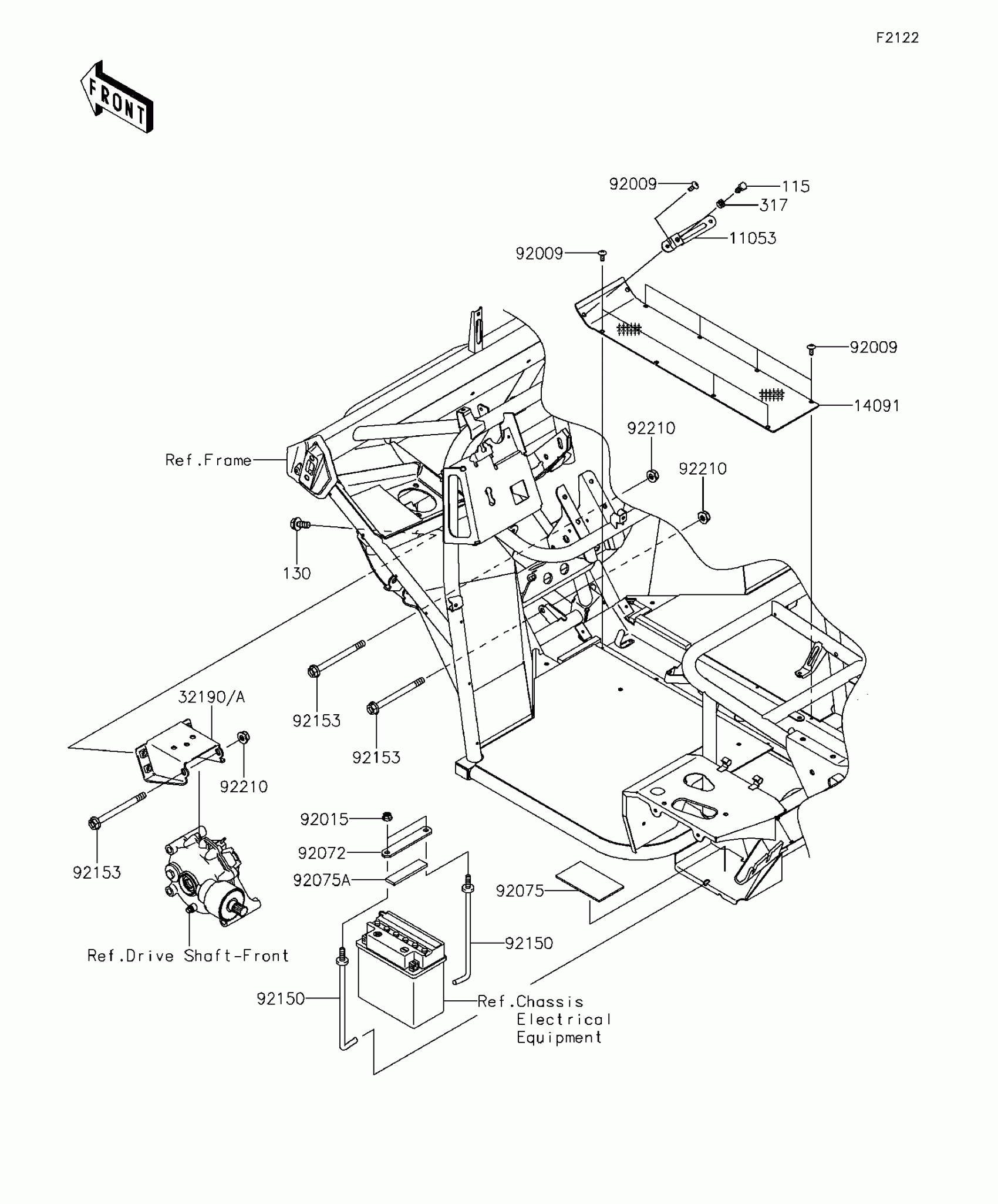

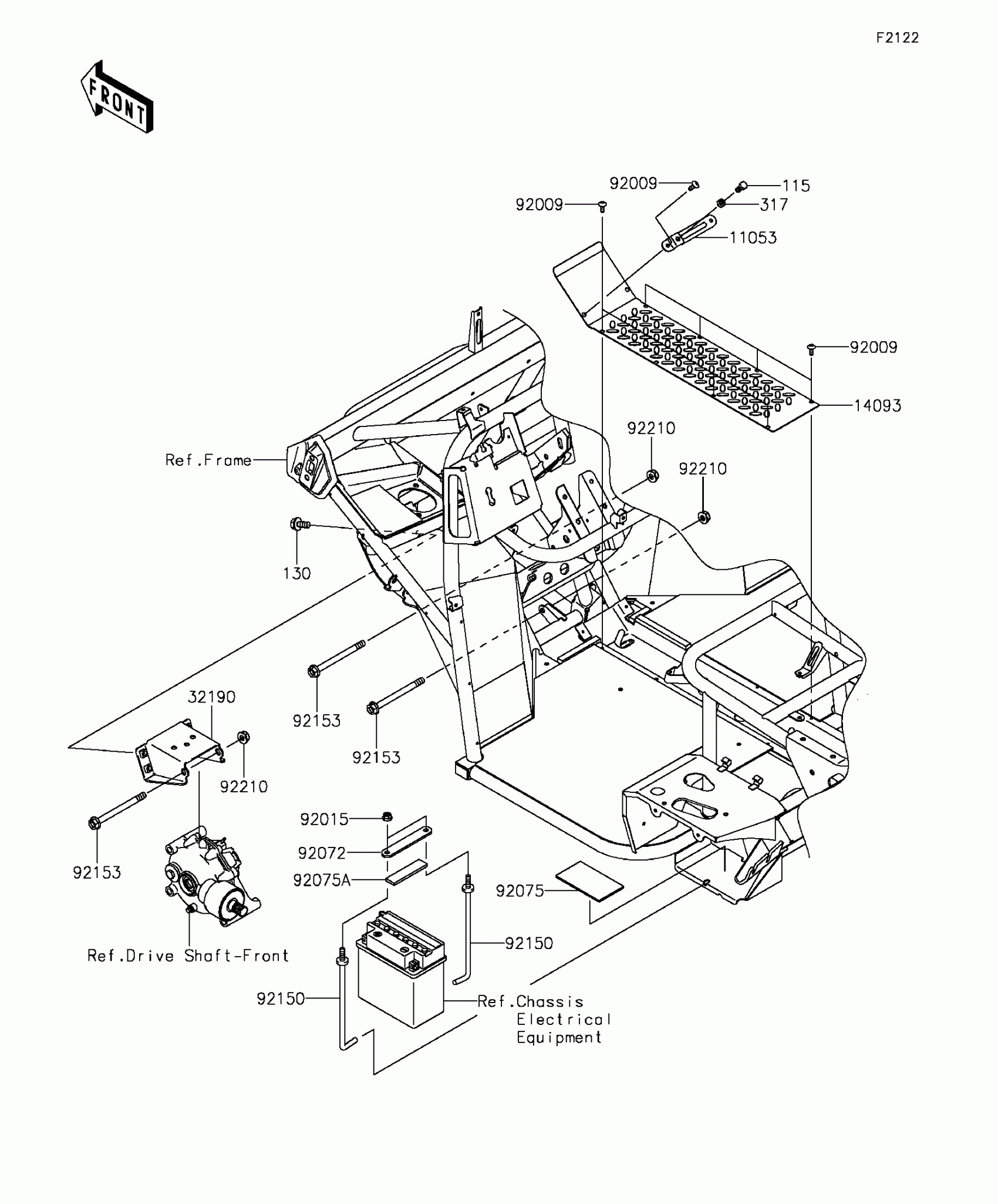

Kawasaki MULE™ 610 4x4 XC CAMO Engine Mount Diagram

Description

Price

11053

BRACKET,THROTTLE LEVER

11053-1670

$7.56

14093

COVER,FLOOR,CNT

14093-0334

$98.06

32190

BRACKET-ENGINE

32190-0639

$26.34

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92072

BAND,BATTERY

92072-7507

$12.90

92075

DAMPER

92075-1076

$8.86

92075A

DAMPER

92075-1214

$4.39

92150

BOLT,BATTERY

92150-1293

$10.65

92153

BOLT,FLANGED,10X120

92153-7502

$8.36

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

115

BOLT-SMALL-UPSET,8X20

115BA0820

$5.52

130

BOLT-FLANGED,10X20

130BA1020

$3.35

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67
