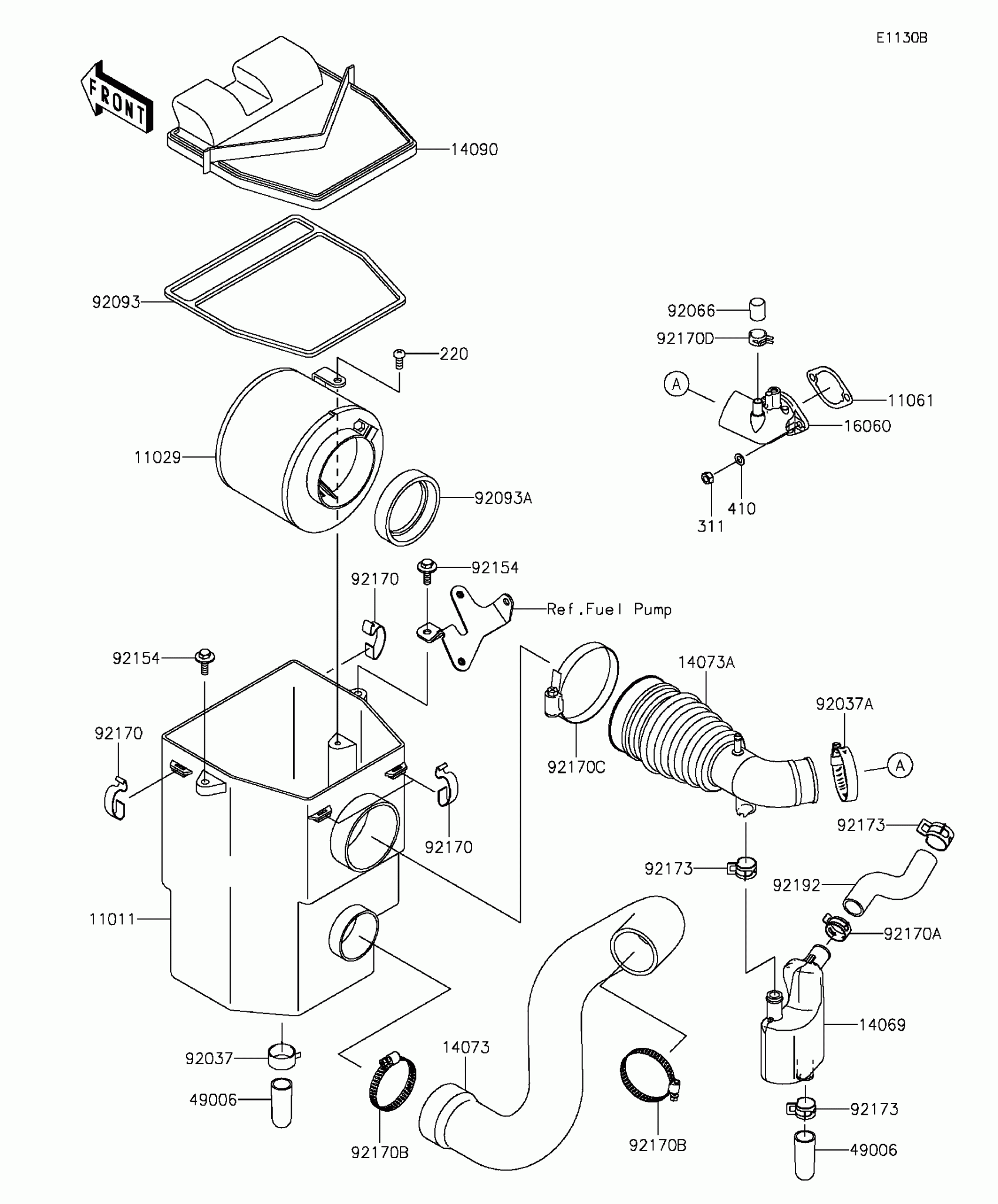

Kawasaki MULE™ 610 4x4 XC Air Cleaner(DGF)(CN) Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1367

$90.35

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$36.72

11061

GASKET,CHOKE

11061-7026

$0.87

14069

BREATHER

14069-0024

$22.80

14073

DUCT,FRAME-AIR FILTER

14073-0072

$41.55

14073A

DUCT,AIR FILTER-IN.PIPE

14073-0818

$48.97

14090

COVER,AIR FILTER

14090-1106

$26.44

16060

PIPE-INTAKE

16060-2224

$136.63

49006

BOOT

49006-1351

$5.74

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP

92037-506

$4.58

92066

PLUG

92066-0829

$2.56

92093

SEAL,AIR FILTER

92093-1241

$9.85

92093A

SEAL,DUST

92093-1322

$7.48

92154

BOLT,WP,6X20

92154-1516

$1.32

92170

CLAMP,AIR FILTER

92170-1211

$5.61

92170A

CLAMP

92170-1640

$1.88

92170B

CLAMP

92170-1674

$8.94

92170C

CLAMP

92170-1679

$5.95

92170D

CLAMP

92170-7003

$1.07

92173

CLAMP

92173-7003

$1.52

92192

TUBE,BREATHER

92192-1465

$4.08

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

311

NUT-HEX,6MM

311AA0600

$0.81

410

WASHER-PLAIN-SMALL

410AA0600

$1.03
