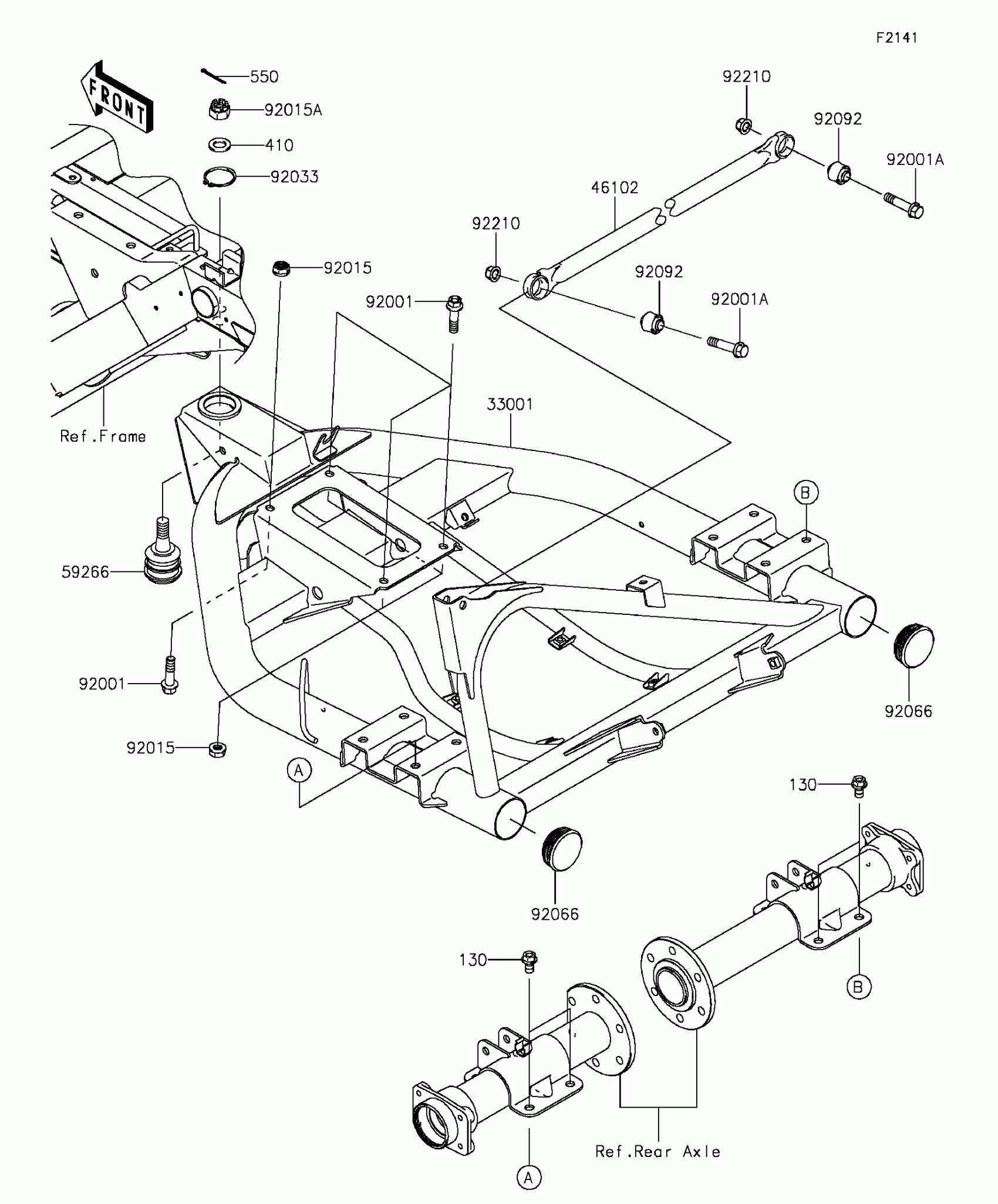

Find the part on the Swingarm diagram for your 2016 Kawasaki Mule™ 610 4x4 SE Fleet, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule™ 610 4x4 SE Fleet Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-0061

1
Out of stock

46102

ROD

46102-0583

1
Out of stock

59266

JOINT-BALL

59266-1087

1
Out of stock

92001

BOLT,FLANGED,10X38

92001-1293

1
Out of stock

92001A

BOLT,FLANGED,10X44

92001-1499

1
Out of stock

92015

NUT,LOCK,FLANGED,10MM

92015-1717

1
Out of stock

92015A

NUT,CASTLE,14MM

92015-1841

1
Out of stock

92033

RING-SNAP

92033-0050

1
Out of stock

92066

PLUG

92066-0044

1
Out of stock

92092

BUSHING-RUBBER

92092-7502

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

130

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

410

WASHER-PLAIN-SMALL,14MM

410AA1400

1
Out of stock

550

PIN-COTTER,3.2X30

550AA3230

1
Out of stock
