2016 Kawasaki Mule™ 610 4x4 SE Fleet Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2016 Kawasaki Mule™ 610 4x4 SE Fleet, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

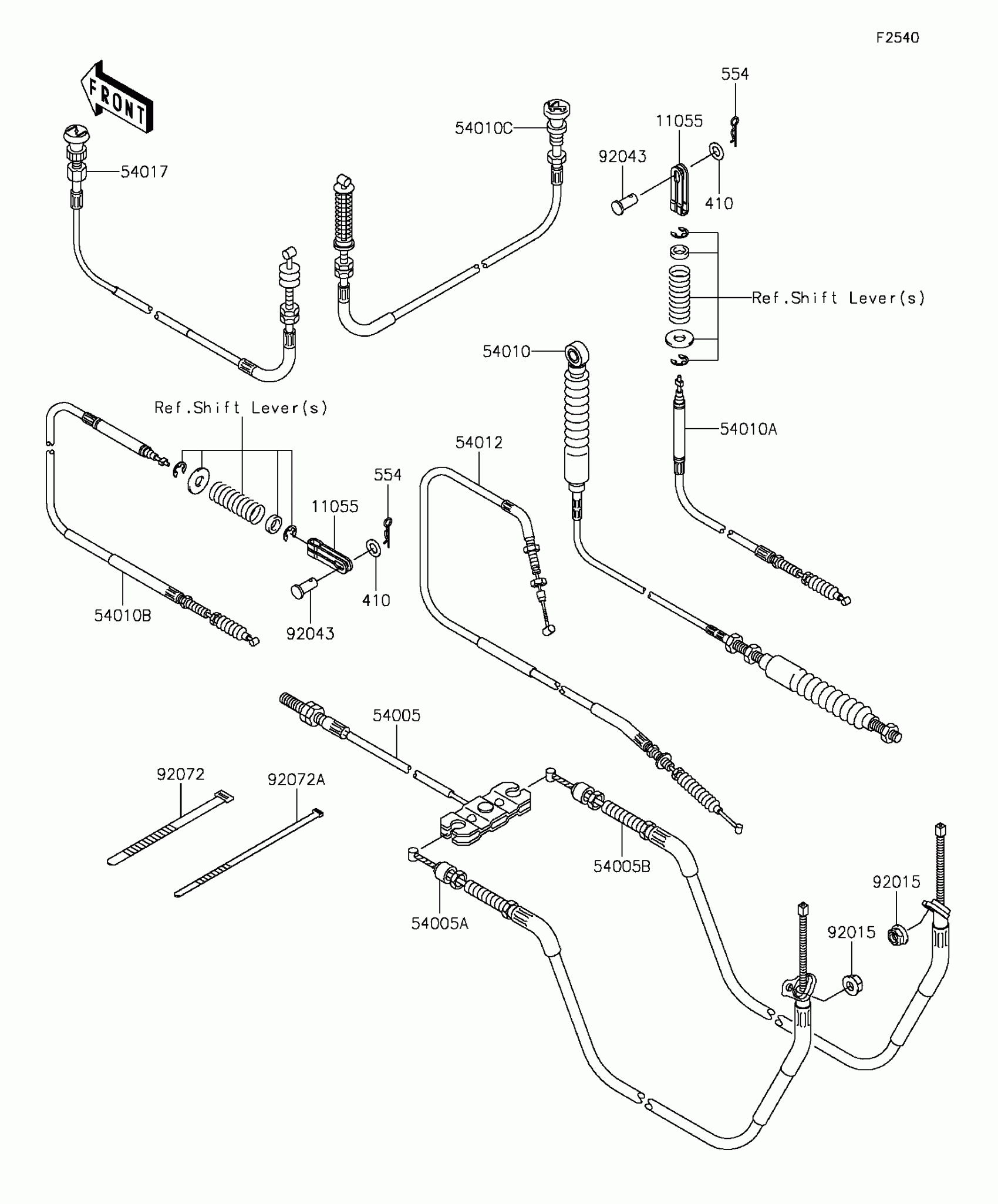

2016 Kawasaki Mule™ 610 4x4 SE Fleet Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,DIFF LOCK

11055-7505

1

$9.02

In stock

54005

CABLE-BRAKE,PARKING,FR

54005-1198

1
Out of stock

54005A

CABLE-BRAKE,PARKING,LH

54005-7505

1
Out of stock

54005B

CABLE-BRAKE,PARKING,RH

54005-7506

1
Out of stock

54010

CABLE,SHIFT CONTROL

54010-0014

1
Out of stock

54010A

CABLE,2-4WD

54010-0015

1
Out of stock

54010B

CABLE,DIFF LOCK

54010-0017

1
Out of stock

54010C

CABLE,HOOD

54010-0600

1
Out of stock

54012

CABLE-THROTTLE

54012-0127

1
Out of stock

54017

CABLE-STARTER

54017-0012

1

$54.03

In stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92043

PIN,6X11

92043-092

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=188

92072-1239

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock
