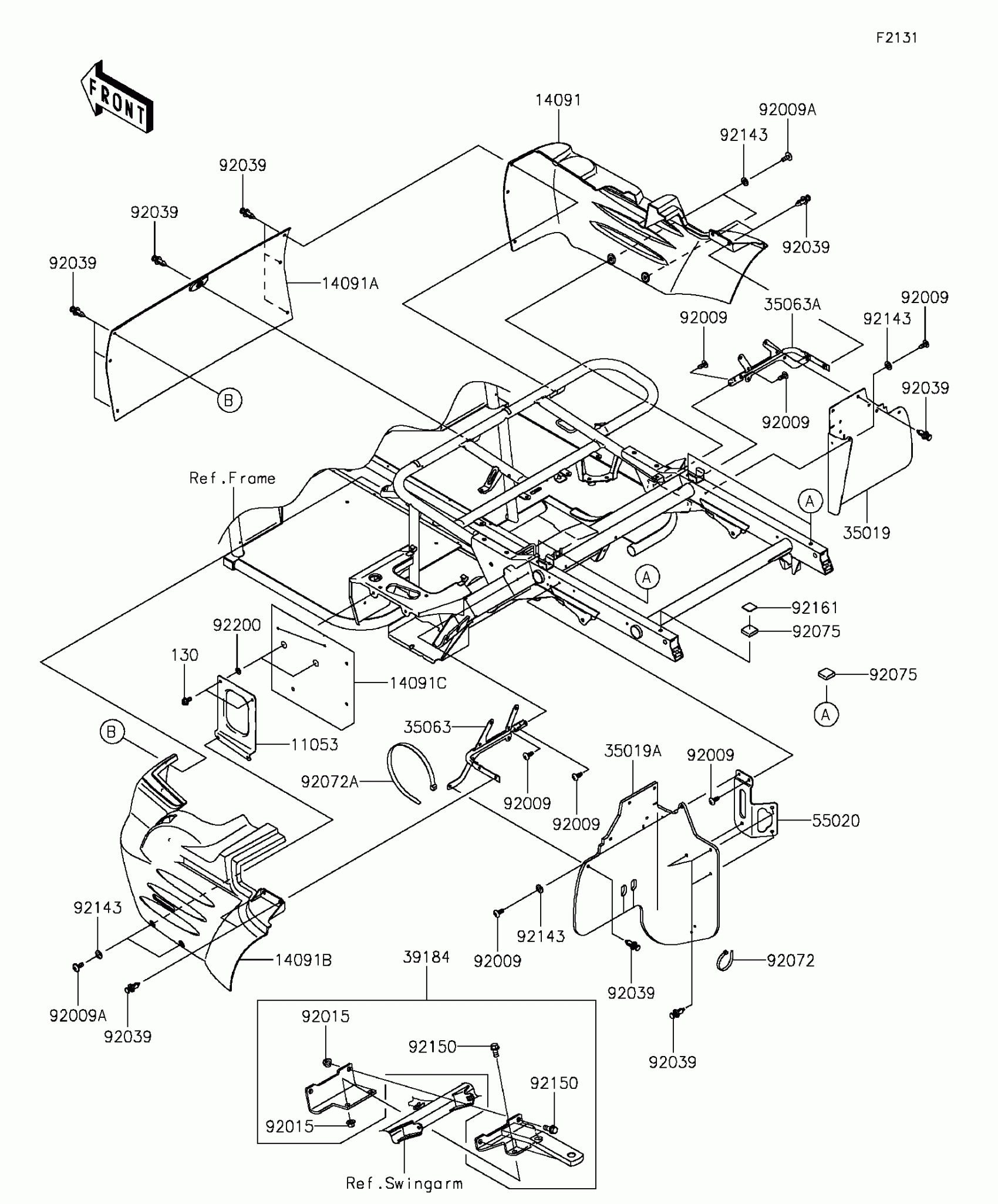

Kawasaki MULE™ 610 4x4 SE Fleet Frame Fittings(Rear) Diagram

Description

Price

11053

BRACKET

11053-0857

$51.11

14091

COVER,REAR SIDE,RH,F.BLACK

14091-0224-6Z

$54.94

14091A

COVER,UNDER SEAT,CNT,F.BLACK

14091-0341-6Z

$38.26

14091B

COVER,REAR SIDE,LH,F.BLACK

14091-0395-6Z

Unavailable

14091C

COVER

14091-0464

$25.64

35019

FLAP,RR,FR,RH

35019-0029

$38.31

35019A

FLAP,RR,FR,LH

35019-7512

Unavailable

35063

STAY,LH

35063-0784

$75.36

35063A

STAY,RH

35063-0785

$80.20

39184

BRACKET-ASSY,TRAILER HITCH

39184-0048

$201.90

55020

GUARD,COOLING FAN

55020-7527

$14.20

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92039

RIVET

92039-1229

$0.80

92072

BAND,L=188

92072-1239

$1.51

92072A

BAND,L=368.3

92072-3872

$1.39

92075

DAMPER

92075-1882

$6.44

92143

COLLAR

92143-1087

$3.11

92150

BOLT,FLANGED,12X27

92150-1359

$6.24

92161

DAMPER

92161-7520

Unavailable

92200

WASHER,7.04X12.5X0.6

92200-0234

$1.97

130

BOLT-FLANGED,6X12

130BA0612

$1.46
