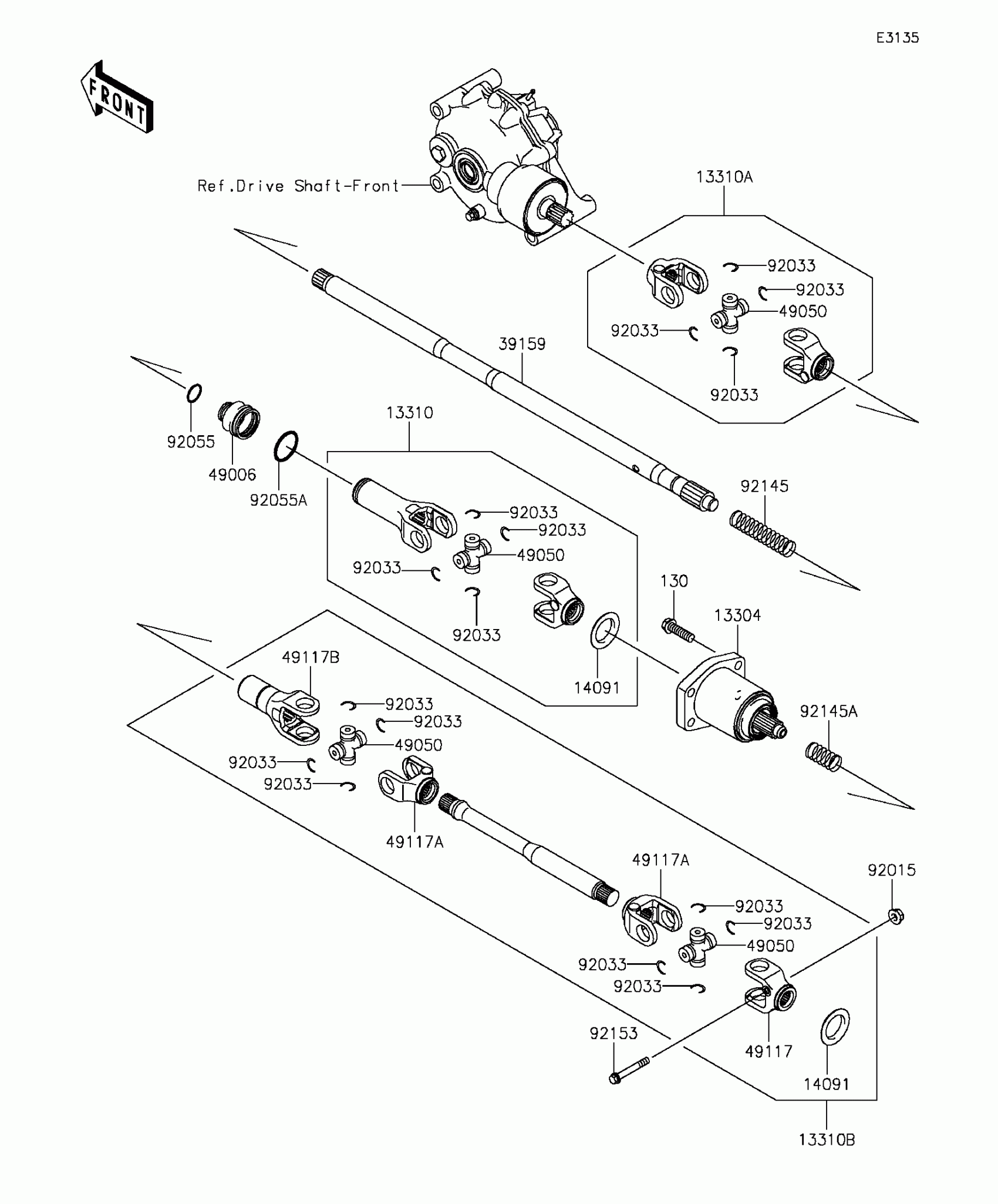

Kawasaki MULE™ 610 4x4 SE Fleet Drive Shaft-Propeller Diagram

Description

Price

13304

HOUSING-ASSY

13304-0002

$290.36

13310

SHAFT-ASSY,HOUSING

13310-0569

$282.61

13310A

SHAFT-ASSY,FR GEAR

13310-0570

$282.61

13310B

SHAFT-ASSY,RR GEAR

13310-0571

$358.16

14091

COVER

14091-0434

$5.60

39159

SHAFT-DRIVE,FR

39159-0568

$428.89

49006

BOOT

49006-0010

$16.70

49050

SPIDER

49050-1075

$82.24

49117

YOKE,21T

49117-0568

$57.91

49117A

YOKE,21T

49117-0570

$57.91

49117B

YOKE,13T

49117-0572

$110.18

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92033

RING-SNAP

92033-1030

$4.14

92055

RING-O,18X24X3

92055-1633

$6.18

92055A

RING-O,30X35X2.5

92055-1693

$6.18

92145

SPRING

92145-0247

$3.87

92145A

SPRING

92145-0280

$4.55

92153

BOLT,6X44

92153-0595

$2.61

130

BOLT-FLANGED,10X35

130BA1035

$3.26
