Drive Shaft-Front

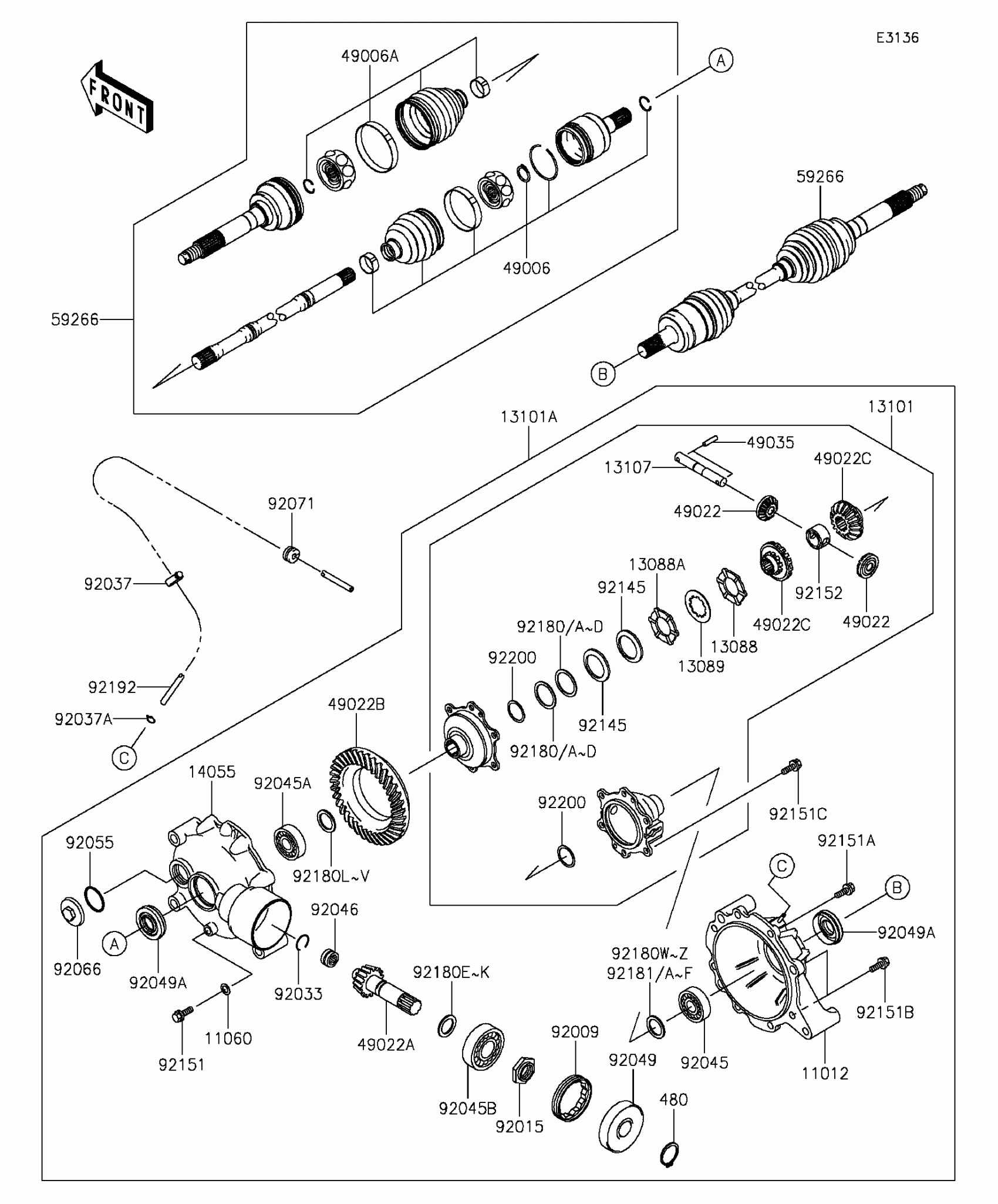

Kawasaki MULE™ 610 4x4 SE Fleet Drive Shaft-Front Diagram
#
11012
CAP,DRIVE SHAFT
11012-1955
$163.54
11060
GASKET
11060-1735
$2.64
13088
PLATE-FRICTION
13088-0008
$11.47
13088A
PLATE-FRICTION
13088-0009
$11.47
13089
PLATE-CLUTCH
13089-1118
$6.79
13101
GEAR-ASSY
13101-0047
$840.02
13101A
GEAR-ASSY,FRONT DIFFERENTIAL
13101-0112
$1,706.13
13107
SHAFT
13107-1369
$35.58
14055
CASE-GEAR
14055-1129
$203.06
49006
BOOT,DOJ
49006-0074
$94.62
49006A
BOOT,UJ
49006-0105
$87.46
49022
GEAR-BEVEL
49022-0017
$95.17
49022A
GEAR-BEVEL
49022-1147
$402.06
49022B
GEAR-BEVEL
49022-1148
$402.06
49022C
GEAR-BEVEL
49022-1153
$165.47
49035
PIN-SPRING
49035-1065
$3.57
59266
JOINT-BALL,FR
59266-0039
$745.13
92009
SCREW,LOCK
92009-1762
$11.55
92015
NUT,LOCK
92015-1992
$18.53
92033
RING-SNAP
92033-1289
$2.44
92037
CLAMP,HOSE
92037-1827
$7.45
92037A
CLAMP
92037-1835
$5.52
92045
BEARING-BALL
92045-0147
$40.84
92045A
BEARING-BALL
92045-1331
$39.17
92045B
BEARING-BALL
92045-1332
$84.37
92046
BEARING-NEEDLE
92046-1248
$14.17
92049
SEAL-OIL
92049-1454
$13.75
92049A
SEAL-OIL
92049-1455
$11.28
92055
RING-O,OIL FILLER
92055-1553
$3.94
92066
PLUG,OIL FILLER
92066-1441
$9.43
92071
GROMMET
92071-0012
$4.55
92145
SPRING
92145-1053
$10.17
92151
BOLT,SEALING
92151-1051
$3.94
92151A
BOLT,FLANGED
92151-1052
$6.22
92151B
BOLT,FLANGED
92151-1053
$6.22
92151C
BOLT
92151-1054
$6.22
92152
COLLAR
92152-0145
$27.22
92180
SHIM,T=1.0
92180-1214
Unavailable
92180A
SHIM,T=1.2
92180-1215
Unavailable
92180B
SHIM,T=1.4
92180-1216
Unavailable
92180C
SHIM,T=1.6
92180-1217
Unavailable
92180D
SHIM,T=1.8
92180-1218
Unavailable
92180E
SHIM,26X34X1.82
92180-1219
Unavailable
92180F
SHIM,26X34X1.88
92180-1220
Unavailable
92180G
SHIM,26X34X1.94
92180-1221
Unavailable
92180H
SHIM,26X34X2.00
92180-1222
Unavailable
92180I
SHIM,26X34X2.06
92180-1223
Unavailable
92180J
SHIM,26X34X2.12
92180-1224
Unavailable
92180K
SHIM,26X34X2.18
92180-1225
Unavailable
92180L
SHIM,T=1.75
92180-1231
Unavailable
92180M
SHIM,T=1.80
92180-1232
Unavailable
92180N
SHIM,T=1.85
92180-1233
Unavailable
92180O
SHIM,T=1.90
92180-1234
Unavailable
92180P
SHIM,T=1.95
92180-1235
Unavailable
92180Q
SHIM,T=2.00
92180-1236
Unavailable
92180R
SHIM,T=2.05
92180-1237
Unavailable
92180S
SHIM,T=2.10
92180-1238
Unavailable
92180T
SHIM,T=2.15
92180-1239
Unavailable
92180U
SHIM,T=2.20
92180-1240
Unavailable
92180V
SHIM,T=2.25
92180-1241
Unavailable
92180W
SHIM,T=0.75
92180-1254
Unavailable
92180X
SHIM,T=0.80
92180-1255
Unavailable
92180Y
SHIM,T=0.85
92180-1256
Unavailable
92180Z
SHIM,T=0.90
92180-1257
Unavailable
92181
SHIM,T=0.95
92180-1258
Unavailable
92181A
SHIM,T=1.00
92180-1259
Unavailable
92181B
SHIM,T=1.05
92180-1260
Unavailable
92181C
SHIM,T=1.10
92180-1261
Unavailable
92181D
SHIM,T=1.15
92180-1262
Unavailable
92181E
SHIM,T=1.20
92180-1263
Unavailable
92181F
SHIM,T=1.25
92180-1264
Unavailable
92192
TUBE,4X7X1100
92192-0165
$11.49
92200
WASHER
92200-1344
$7.33
480
CIRCLIP-TYPE-C,22MM
480J2200
$5.00
