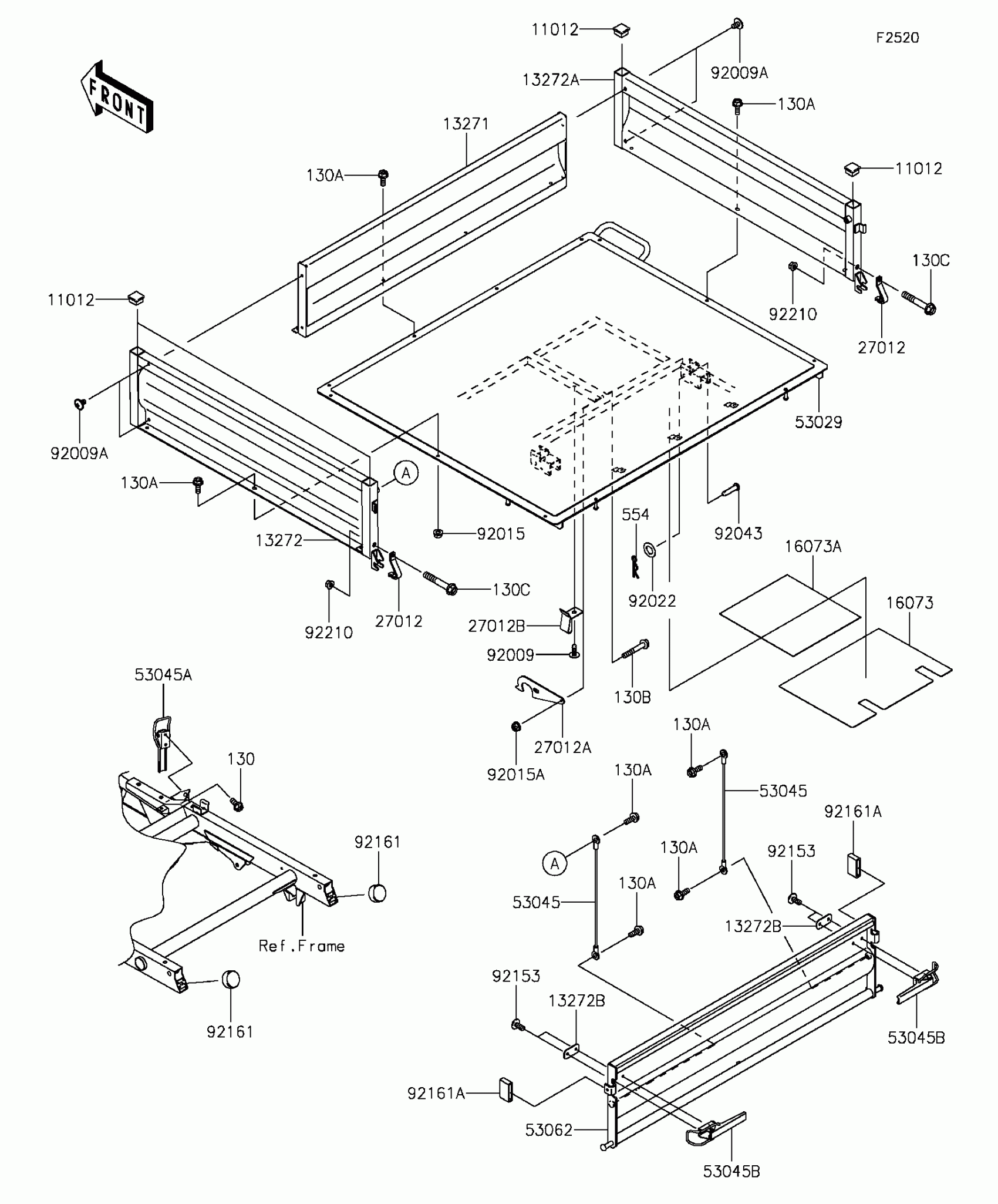

Kawasaki MULE™ 610 4x4 SE Fleet Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

13271

PLATE,CARRIER,SIDE,FR,S.RED

13271-0394-VM

$211.47

13272

PLATE,LH,S.RED

13272-1134-VM

$211.47

13272A

PLATE,RH,S.RED

13272-1135-VM

$211.47

13272B

PLATE

13272-7516

$7.25

16073

INSULATOR,CARRIER

16073-0040

$56.44

16073A

INSULATOR

16073-7501

$50.53

27012

HOOK,TAIL GATE

27012-0022

$4.81

27012A

HOOK

27012-0044

$31.59

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,T.BLACK

53029-0088-388

$1,278.78

53045

HOOK-ASSY,TAIL GATE

53045-0006

$21.42

53045A

HOOK-ASSY

53045-1063

$18.86

53045B

HOOK-ASSY

53045-7503

$18.86

53062

GATE-TAIL,S.RED

53062-0303-VM

$293.85

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X10

92009-1661

$3.29

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92043

PIN,12X54

92043-1451

$9.42

92153

BOLT,SOCKET,6X14

92153-1361

$2.15

92161

DAMPER

92161-1065

$2.84

92161A

DAMPER

92161-7519

$2.68

92210

NUT,FLANGED,8MM

92210-0555

$1.47

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BB0616

$1.49

130B

BOLT-FLANGED,6X40

130BB0640

$2.53

130C

BOLT-FLANGED,8X50

130BB0850

$3.60

554

PIN-SNAP,12MM

554DA1200

$2.63
