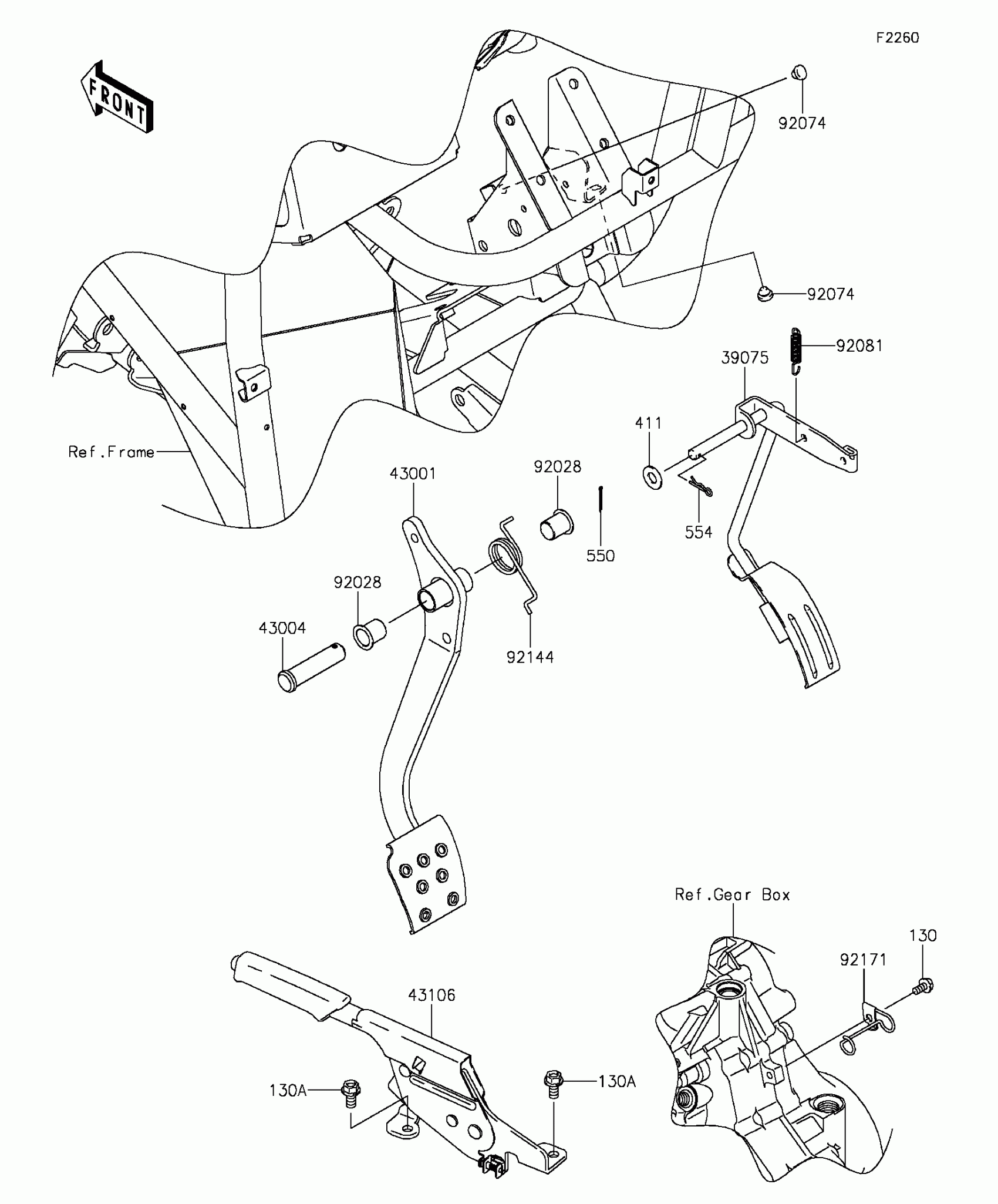

Kawasaki MULE™ 610 4x4 SE Fleet Brake Pedal/Throttle Lever Diagram

Description

Price

39075

LEVER-THROTTLE

39075-0005

$28.93

43001

LEVER-BRAKE,PEDAL

43001-7502

$40.64

43004

SHAFT-BRAKE

43004-1128

$17.76

43106

LEVER-ASSY-PARKING BRAKE

43106-0005

$108.71

92028

BUSHING

92028-1571

$10.67

92074

PLUG,7X2

92074-028

$4.26

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$6.16

92144

SPRING

92144-1536

$8.30

92171

CLAMP

92171-0424

$8.25

130

BOLT-FLANGED,6X12

130AA0612

$0.68

130A

BOLT-FLANGED,8X16

130AA0816

$0.85

411

WASHER-PLAIN,10MM

411AA1000

$0.96

550

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
