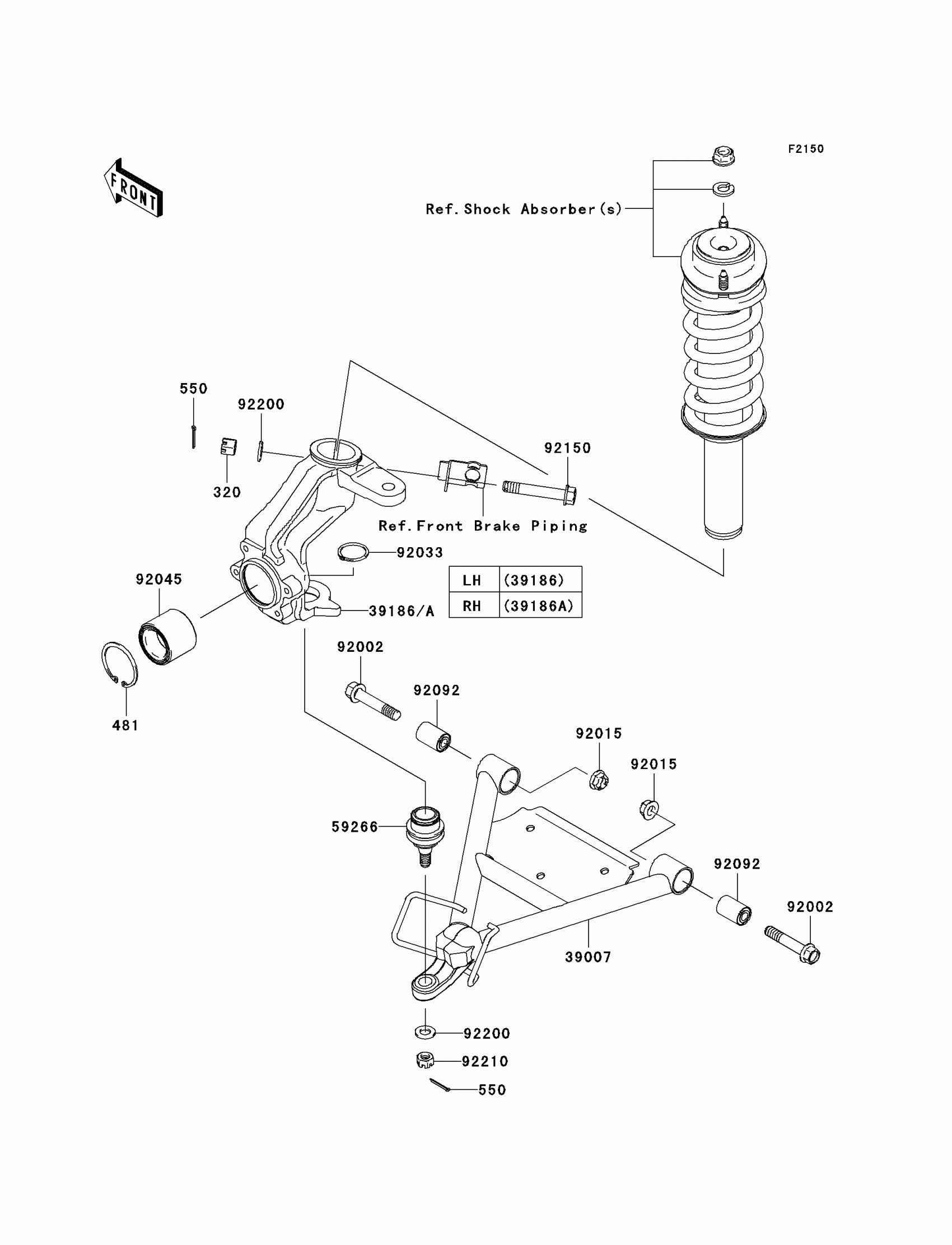

Kawasaki Mule 610 4x4 Realtree APG HD Suspension Diagram

Description

Price

320

NUT-CASTLE

320BA1200

Unavailable

481

CIRCLIP-TYPE-C,52MM

481J5200

$4.96

550

PIN-COTTER,3.0X25

550AA3025

$1.49

39007

ARM-SUSP

39007-0029

Unavailable

39186

KNUCKLE,LH

39186-0061

Unavailable

39186A

KNUCKLE,RH

39186-0062

Unavailable

59266

JOINT-BALL

59266-1080

$96.44

92002

BOLT,ROD,12MM

92002-1757

$9.81

92015

NUT

92015-1706

$7.45

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92045

BEARING-BALL,DAC2552W-7CS31

92045-0102

Unavailable

92092

BUSHING-RUBBER

92092-005

$14.10

92150

BOLT,FLANGED,12X72

92150-1356

$13.75

92200

WASHER,12.3X23X2.3

92200-1004

$4.69

92210

NUT,CASTLE,12MM

92210-0395

$3.86
