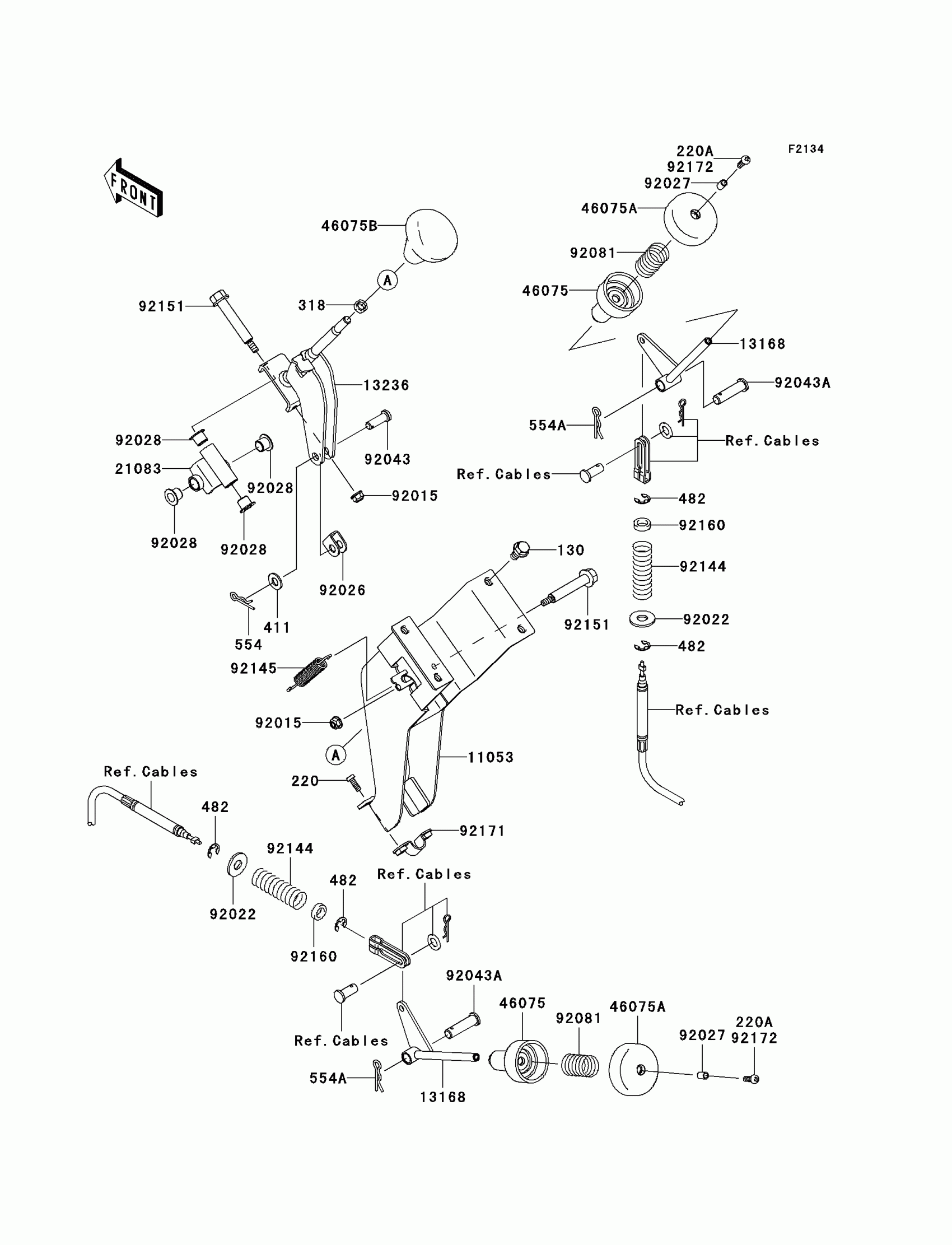

Kawasaki Mule 610 4x4 Realtree APG HD Shift Lever(s) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BB0816

$1.47

220

SCREW-PAN-CROS,5X14

220AA0514

$3.52

318

NUT-HEX-SMALL

318BB0800

$3.14

411

WASHER-PLAIN,8MM

411AA0800

$0.93

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.73

554

PIN-SNAP

554DA0800

$1.22

554A

PIN-SNAP,10MM

554DA1000

$1.22

11053

BRACKET,SHIFT LEVER

11053-1496

Unavailable

13168

LEVER

13168-0069

$29.64

13236

LEVER-COMP,SHIFT

13236-0073

$37.39

21083

ARM

21083-0023

$53.81

46075

GRIP

46075-0012

$11.56

46075A

GRIP

46075-0014

$6.02

46075B

GRIP,SHIFT

46075-0046

$27.63

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92022

WASHER,10.5X26X2.3

92022-044

$3.12

92026

SPACER

92026-0074

$3.51

92027

COLLAR,4.5X6.5X9.3

92027-1313

$7.14

92028

BUSHING

92028-1507

$4.16

92043

92043-0053

$4.95

92043A

PIN,FOOTRST STEP FIT

92043-1069

$5.42

92081

SPRING

92081-1714

$3.39

92144

SPRING

92144-1510

$5.07

92145

SPRING

92145-0249

$7.63

92151

BOLT,6MM

92151-1747

$7.43

92160

DAMPER

92160-3754

$2.49

92171

CLAMP

92171-0365

$5.86

92172

SCREW

92172-7501

$2.00
