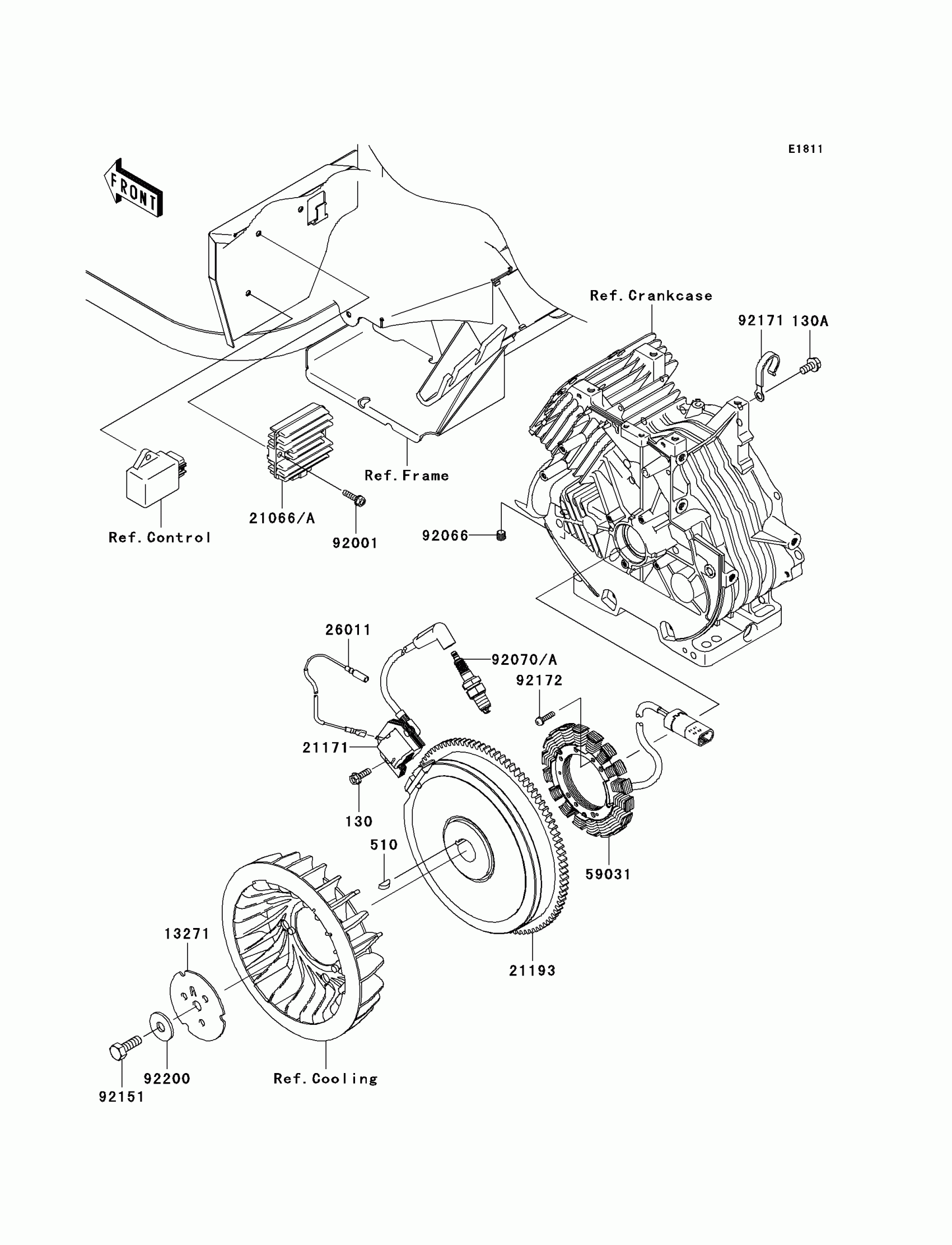

Kawasaki Mule 610 4x4 Realtree APG HD Generator/Ignition Coil Diagram

Description

Price

130

BOLT-FLANGED,6X20

130AA0620

$1.49

130A

BOLT-FLANGED,8X16

130AA0816

$0.83

510

WOODRUFF KEY

510A5100

$2.17

13271

PLATE,FAN

13271-7029

$2.44

21066A

REGULATOR-VOLTAGE

21066-0039

$153.30

21171

COIL-ASSY-IGNITION

21171-7035

$46.67

21193

FLYWHEEL-ASSY

21193-7023

Unavailable

26011

WIRE-LEAD

26011-7014

$2.47

59031

COIL-CHARGING

59031-2132

$67.39

92001

BOLT,FLANGED,6X22

92001-1352

$3.43

92066

PLUG

92066-7002

Unavailable

92070A

PLUG-SPARK,BPR5ES(NGK),SOLID

92070-2088

$3.43

92151

BOLT,12X30

92151-2097

Unavailable

92171

CLAMP

92171-7005

$5.85

92172

SCREW,5X20

92172-7018

$0.46

92200

WASHER

92200-7002

$1.92
