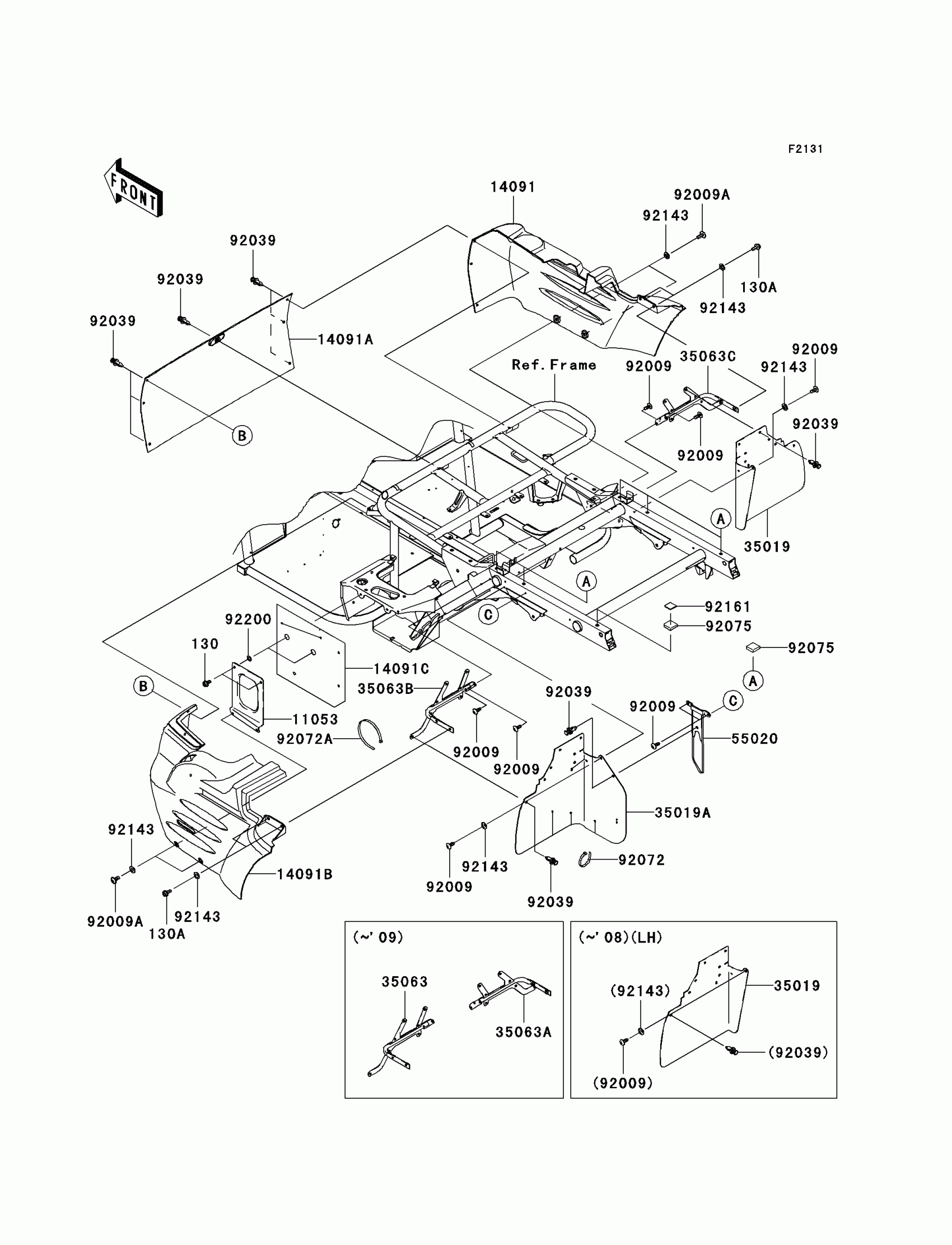

Kawasaki Mule 610 4x4 Realtree APG HD Frame Fittings(Rear) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$1.68

130A

BOLT-FLANGED,6X14

130BB0614

$1.77

11053

BRACKET

11053-0857

$51.11

14091

COVER,REAR SIDE,RH,F.BLACK

14091-0224-6Z

$52.72

14091A

COVER,UNDER SEAT,CNT,F.BLACK

14091-0341-6Z

$38.26

14091B

COVER,REAR SIDE,LH,F.BLACK

14091-0395-6Z

Unavailable

14091C

COVER

14091-0464

$25.64

35019

FLAP,RR,FR,RH

35019-0029

$38.31

35019A

FLAP,RR,FR

35019-0071

$56.05

35063B

STAY,LH

35063-7511

$76.25

35063C

STAY,RH

35063-7512

$80.26

55020

GUARD,COOLING FAN

55020-0404

$71.78

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1229

$0.80

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=368.3

92072-3872

$1.20

92075

DAMPER

92075-1882

$6.18

92143

COLLAR

92143-1087

$2.98

92161

DAMPER

92161-0256

Unavailable

92200

WASHER,7.04X12.5X0.6

92200-0234

$1.70
