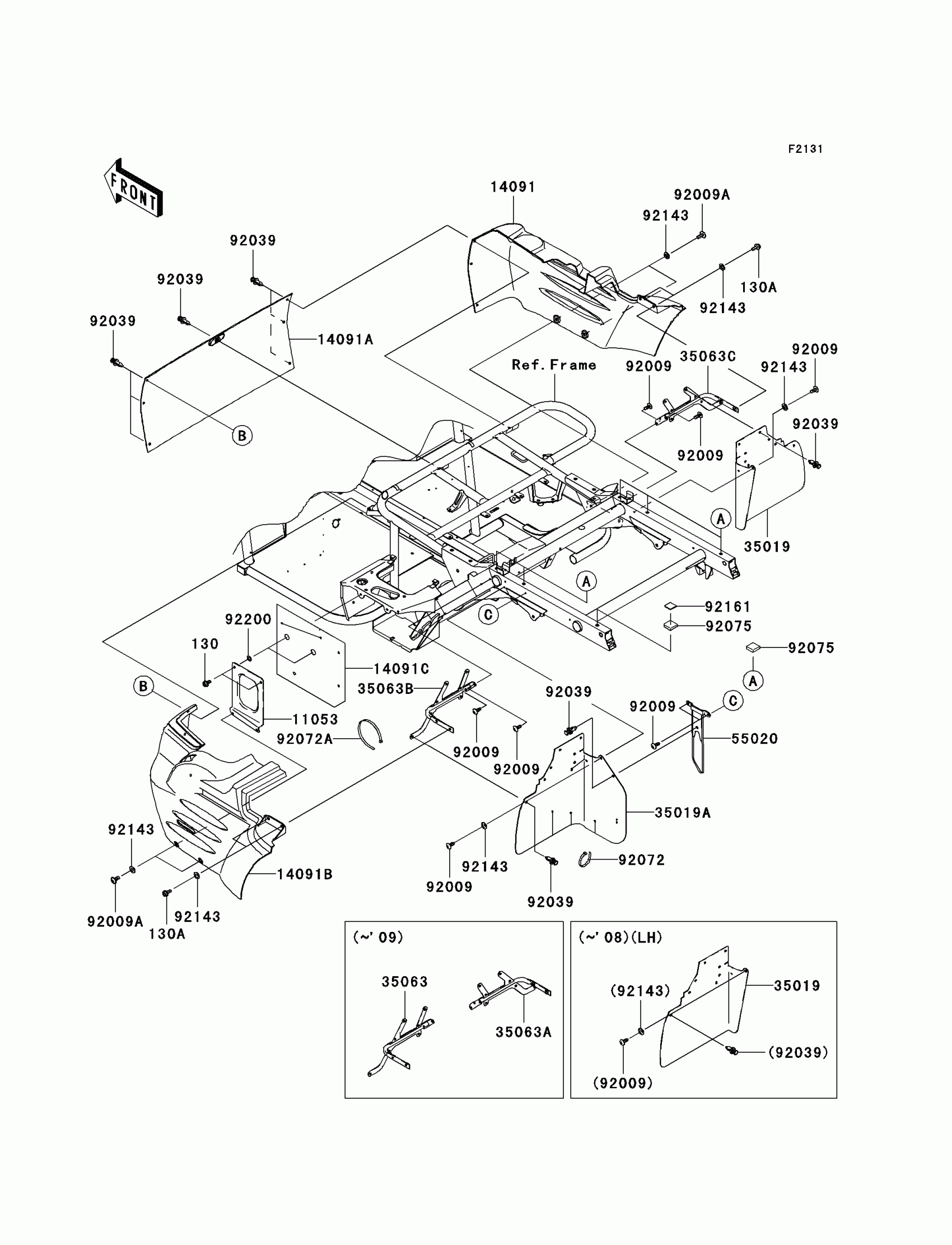

Kawasaki Mule 610 4x4 Realtree APG HD Frame Fittings(Rear) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

130A

BOLT-FLANGED,6X14

130BB0614

$2.49

11053

BRACKET

11053-0857

$50.18

14091

COVER,REAR SIDE,RH,F.BLACK

14091-0224-6Z

$59.20

14091A

COVER,UNDER SEAT,CNT,F.BLACK

14091-0341-6Z

$37.59

14091B

COVER,REAR SIDE,LH,F.BLACK

14091-0395-6Z

Unavailable

14091C

COVER

14091-0464

$27.46

35019

FLAP,RR,FR,RH

35019-0029

$37.63

35019A

FLAP,RR,FR

35019-0071

$55.04

35063B

STAY,LH

35063-7511

$78.83

35063C

STAY,RH

35063-7512

$78.83

55020

GUARD,COOLING FAN

55020-0404

$70.51

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1229

$1.19

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=368.3

92072-3872

$1.59

92075

DAMPER

92075-1882

$8.10

92143

COLLAR

92143-1087

$4.31

92161

DAMPER

92161-0256

Unavailable

92200

WASHER,7.04X12.5X0.6

92200-0234

$2.39
