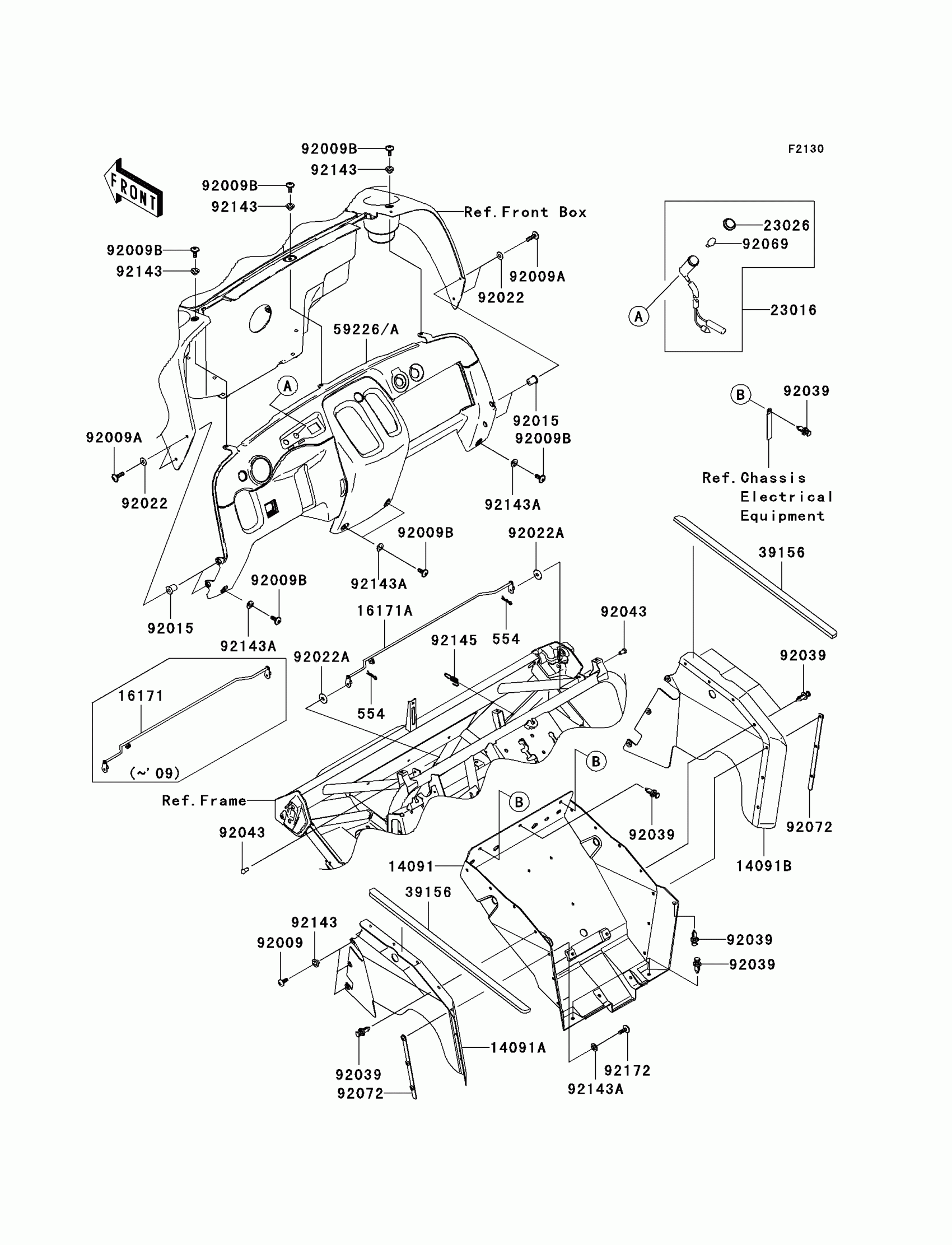

Kawasaki Mule 610 4x4 Realtree APG HD Frame Fittings(Front) Diagram

Description

Price

554

PIN-SNAP,1.2X21.2

554DA0600

$0.92

14091

COVER,FLOOR,CNT

14091-0408

$111.04

14091A

COVER,FLOOR,SIDE,LH

14091-0424

$53.60

14091B

COVER,FLOOR,SIDE,RH

14091-0425

$53.60

16171A

LINK,HOOD

16171-7501

Unavailable

23016

LAMP-ASSY,TEMP

23016-1128

$55.66

23026

LENS,TEMP LAMP

23026-1157

$3.88

39156

PAD

39156-0071

$25.37

59226

PANEL-CONTROL,CAMOUFLAGE

59226-0009-16P

$227.90

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92009A

SCREW,6X22,BLACK

92009-1256

$2.27

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT

92015-1700

$6.82

92022

WASHER,6.5X16X1

92022-1143

$3.12

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.53

92039

RIVET

92039-1229

$0.80

92043

PIN,6X9

92043-1626

$1.88

92069

BULB,12V 1.7W,T10

92069-1059

$3.94

92072

BAND

92072-0042

$5.51

92143

COLLAR

92143-1057

$3.97

92143A

COLLAR

92143-1087

$3.11

92145

SPRING

92145-0215

$4.07

92172

SCREW,6X18

92172-0002

$2.29
