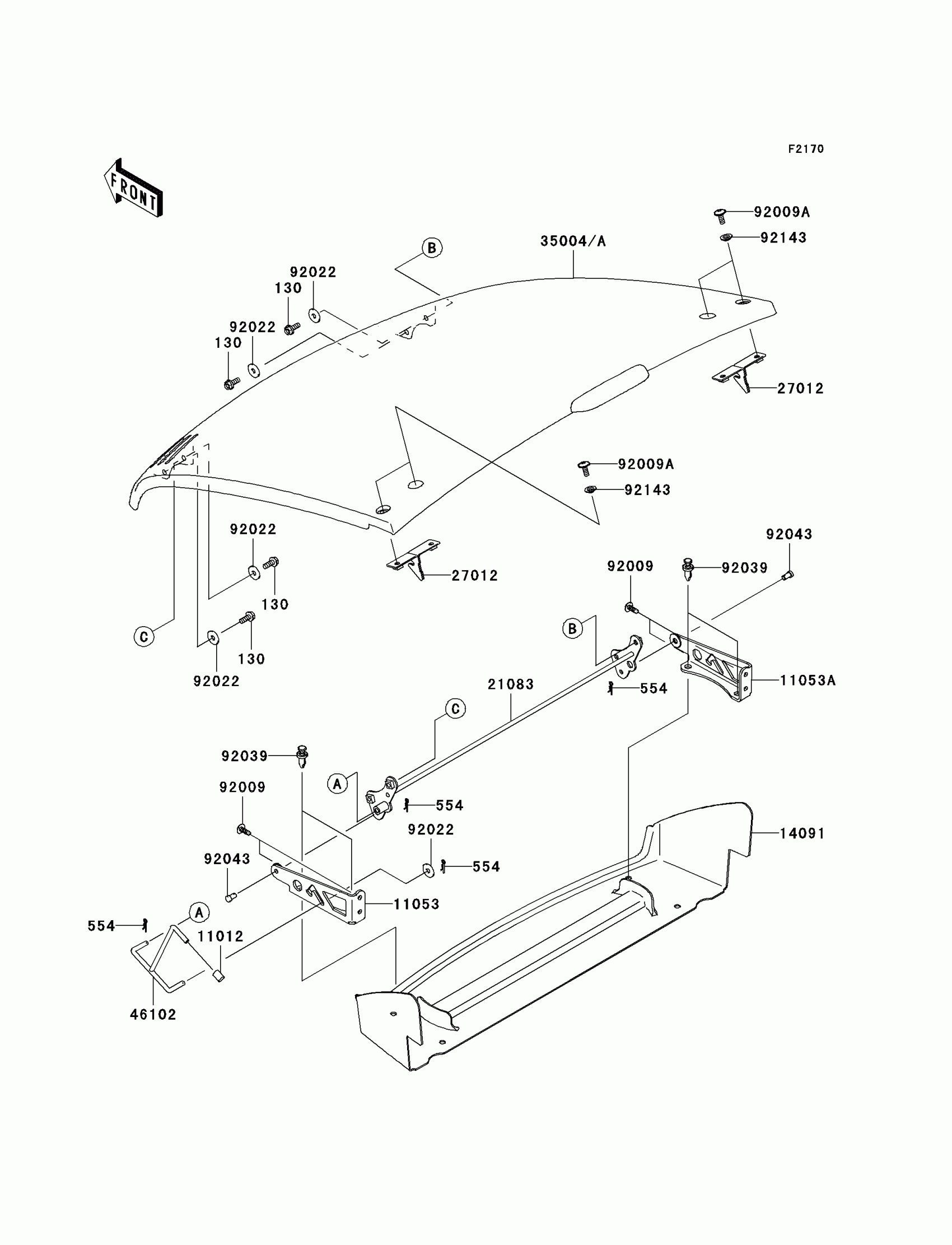

Kawasaki Mule 610 4x4 Realtree APG HD Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$1.49

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79

11012

CAP

11012-1899

$3.66

11053

BRACKET

11053-1451

$9.32

11053A

BRACKET

11053-1452

$9.32

14091

COVER

14091-0368

$75.92

21083

ARM

21083-0021

$25.25

27012

HOOK

27012-0065

$4.62

35004

FENDER-FRONT,HOOD,CAMOUFLAGE

35004-0036-16P

Unavailable

46102

ROD

46102-0048

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92039

RIVET

92039-1229

$0.80

92043

PIN,6X9

92043-1626

$1.88

92143

COLLAR

92143-1087

$2.98
