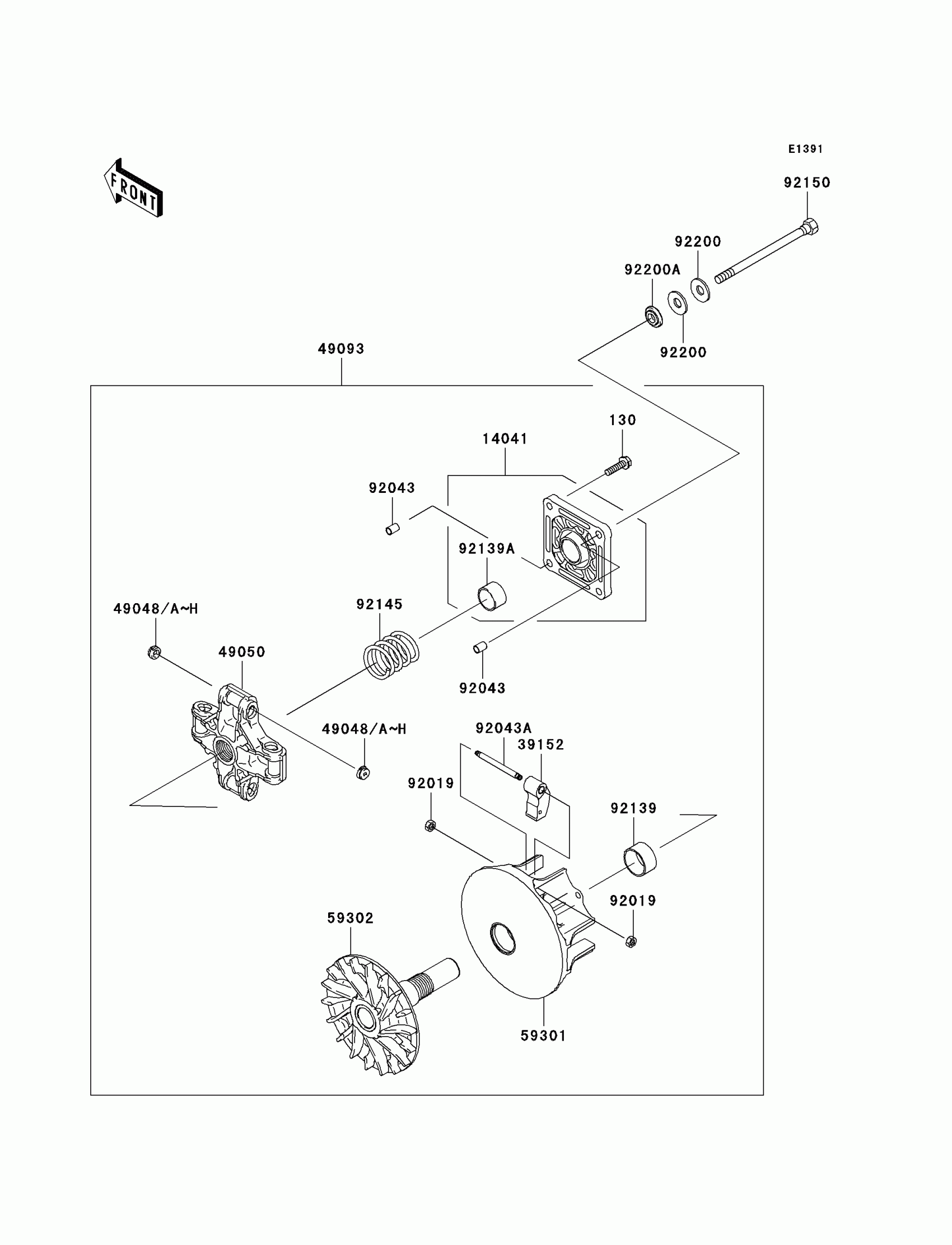

Kawasaki Mule 610 4x4 Realtree APG HD Drive Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30

130CB0830

$2.15

14041

COVER-COMP

14041-0006

$91.68

39152

WEIGHT-RAMP,C

39152-0011

$53.86

49048

SHOE,T=7.2

49048-1087

$11.66

49048A

SHOE,T=7.3

49048-1088

$11.42

49048B

SHOE,T=7.4

49048-1089

$11.66

49048C

SHOE,T=7.5

49048-1090

$11.66

49048D

SHOE,T=7.6

49048-1091

$11.66

49048E

SHOE,T=7.7

49048-1092

$11.66

49048F

SHOE,T=7.8

49048-1093

$13.78

49048G

SHOE,T=7.9

49048-1094

$13.78

49048H

SHOE,T=8.0

49048-1095

$11.66

49050

SPIDER

49050-0003

Unavailable

49093

CONVERTER-ASSY-DRIVE

49093-0021

$650.53

59301

SHEAVE-MOVABLE

59301-0001

Unavailable

59302

SHEAVE-COMP,FIXED

59302-0005

Unavailable

92019

NUT,LOCK,6MM

92019-008

$3.36

92043

PIN,8.2X10X14

92043-1264

$0.53

92043A

92043-1699

$12.66

92139

BUSHING

92139-0049

$11.98

92139A

BUSHING

92139-0050

$11.98

92145

SPRING

92145-0149

$21.68

92150

BOLT,12X163.5

92150-1008

$24.41

92200

WASHER

92200-0249

$4.34

92200A

WASHER

92200-1634

$7.20
