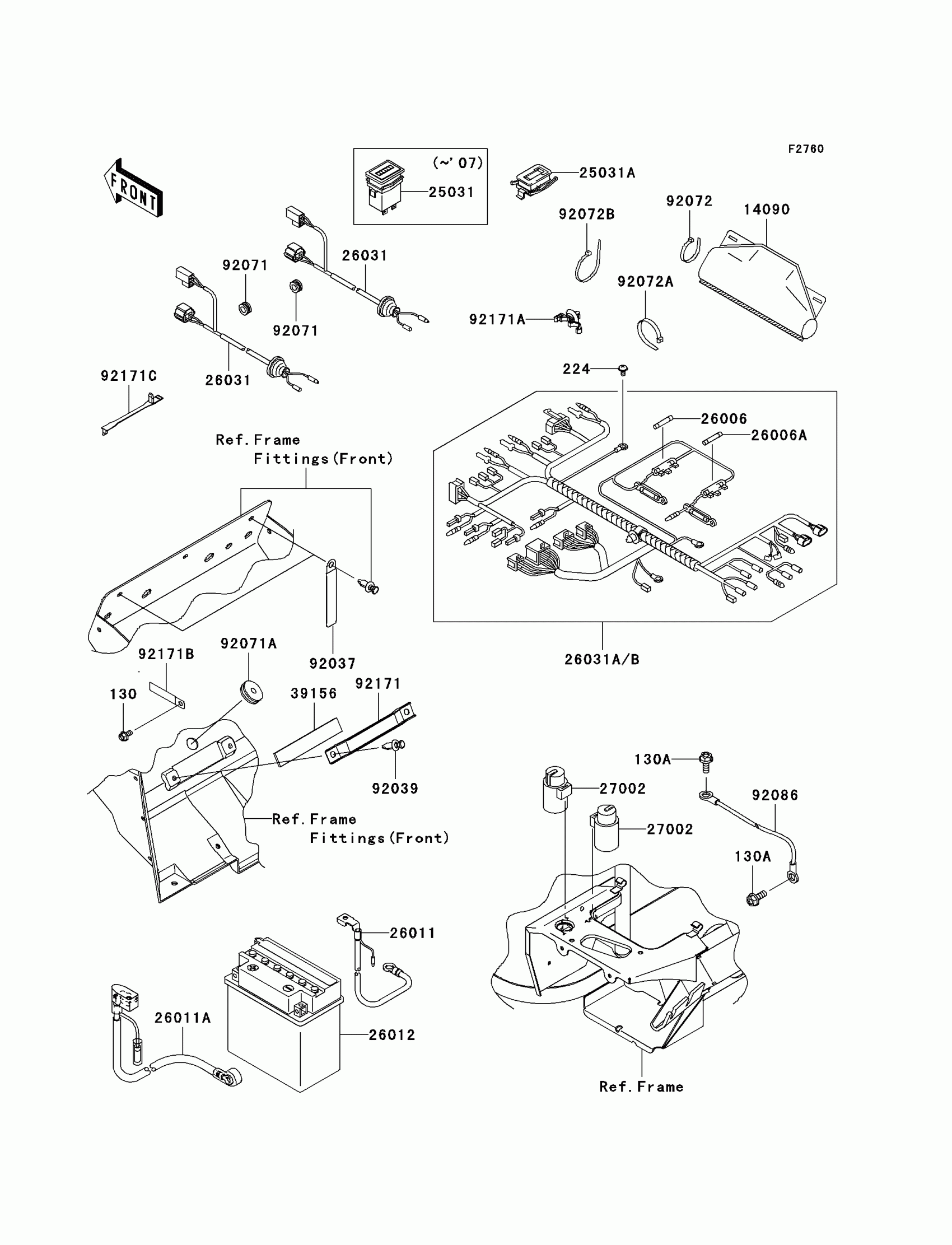

Kawasaki Mule 610 4x4 Realtree APG HD Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130AA0612

$0.68

130A

BOLT-FLANGED,8X20

130BB0820

$0.84

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.68

14090

COVER,COUPLER

14090-1331

$8.51

25031A

METER-ASSY,AC,AF400/620&RF750

25031-7506

Unavailable

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.96

26006A

FUSE,30A,L=32

26006-1065

$4.96

26011

WIRE-LEAD,BATTERY(-)

26011-0040

$47.04

26011A

WIRE-LEAD,BATTERY(+)

26011-0048

$75.86

26012

BATTERY,YB14A-A2,12V 14AH

26012-0011

$100.28

26031

HARNESS,HEAD LAMP

26031-0155

$47.22

26031B

HARNESS,MAIN

26031-0718

$219.93

27002

RELAY-ASSY

27002-1051

$52.57

39156

PAD

39156-0063

$4.40

92037

CLAMP,HARNESS,L=100

92037-1636

$7.68

92039

RIVET

92039-1229

$1.19

92071

GROMMET

92071-1128

$5.43

92071A

GROMMET

92071-1136

$7.38

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92086

WIRE

92086-1054

$26.20

92171

CLAMP

92171-0301

$4.75

92171A

CLAMP

92171-0453

$3.54

92171B

CLAMP,L=60

92171-0652

$2.61

92171C

CLAMP

92171-1365

$4.20
