- Mule 610 4x4 Realtree APG HD
Carrier(s)(CAF)

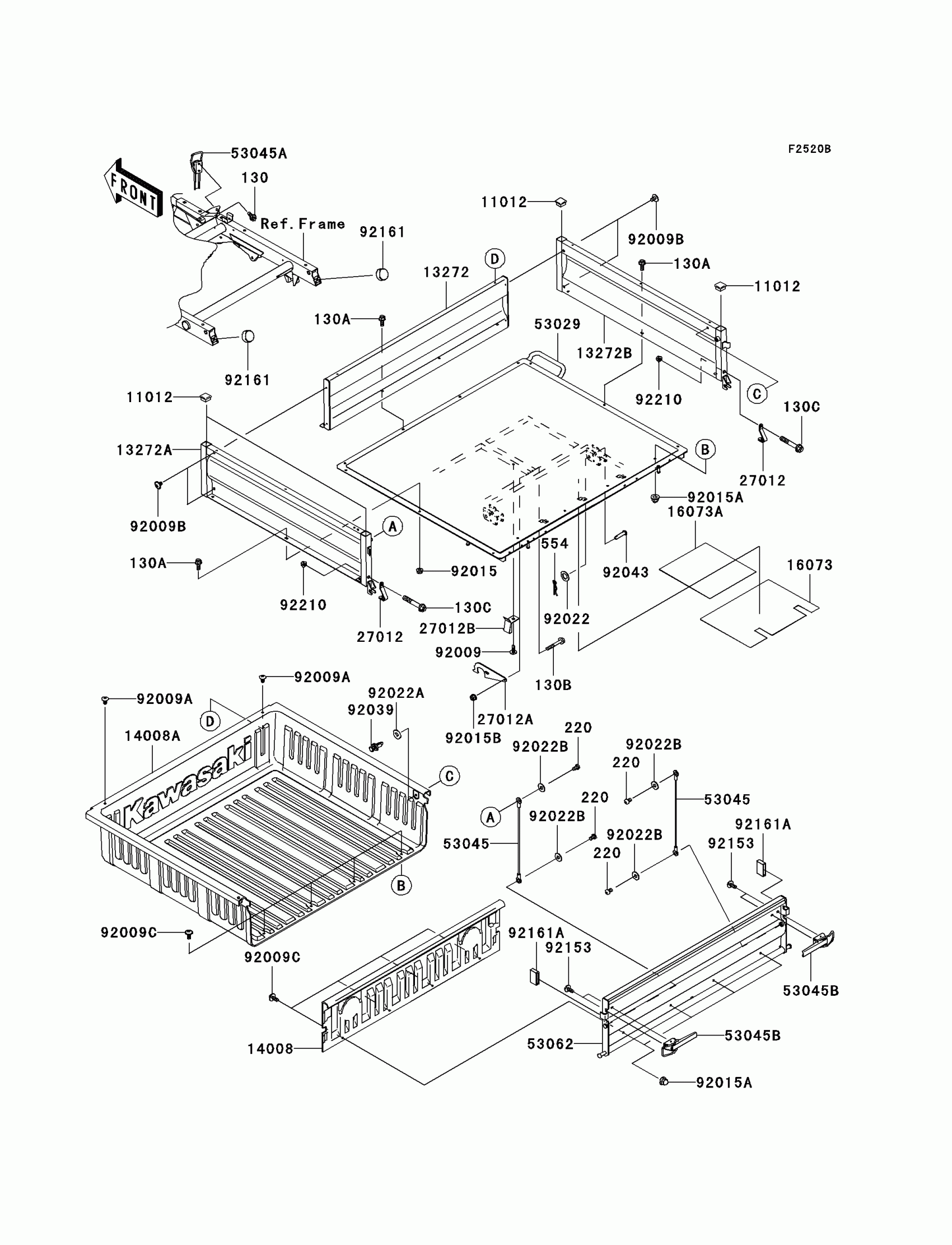

Kawasaki Mule 610 4x4 Realtree APG HD Carrier(s)(CAF) Diagram
#
130
BOLT-FLANGED,6X14
130BB0614
$2.49
130A
BOLT-FLANGED,6X16
130BB0616
$2.06
130B
BOLT-FLANGED,6X40
130BB0640
$3.13
130C
BOLT-FLANGED,8X50
130BB0850
$4.73
220
SCREW-PAN-CROS,6X10
220AB0610
$1.81
554
PIN-SNAP,12MM
554DA1200
$3.96
11012
CAP
11012-1784
$6.32
13272
PLATE,CARRIER,SIDE,FR,CAMO
13272-0541-16N
Unavailable
13272A
PLATE,CARRIER,LH,CAMOUFLAGE
13272-0792-16N
$424.67
13272B
PLATE,CARRIER,RH,CAMOUFLAGE
13272-0793-16N
$424.67
14008
LINER,TAILGATE
14008-0019
$36.15
14008A
LINER,CARRIER BASE
14008-0020
$212.50
16073
INSULATOR,CARRIER
16073-0040
$55.42
16073A
INSULATOR
16073-7501
$49.62
27012
HOOK,TAIL GATE
27012-0022
$6.43
27012A
HOOK
27012-0044
$31.01
27012B
HOOK,CARRIER
27012-1445
$12.92
53029
CARRIER,BLACK
53029-0085-10
Unavailable
53045
HOOK-ASSY,TAIL GATE
53045-0006
$26.56
53045A
HOOK-ASSY
53045-1063
$23.47
53045B
HOOK-ASSY
53045-7502
$26.25
53062
GATE-TAIL,CAMOUFLAGE
53062-0016-16N
$570.97
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X12
92009-1480
$3.21
92009B
SCREW,6X10
92009-1661
$4.31
92009C
SCREW,6X14
92009-1662
$3.92
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,LOCK 6MM
92015-1262
$5.52
92015B
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,12.5X22X1.2
92022-072
$3.92
92022A
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022B
WASHER,7X18X1.2
92022-1545
$1.03
92039
RIVET
92039-1229
$1.19
92043
PIN,12X54
92043-1451
$9.73
92153
BOLT,SOCKET,6X14
92153-1361
$2.61
92161
DAMPER
92161-1065
$3.73
92161A
DAMPER
92161-7519
$3.52
92210
NUT,FLANGED,8MM
92210-0555
$2.03
