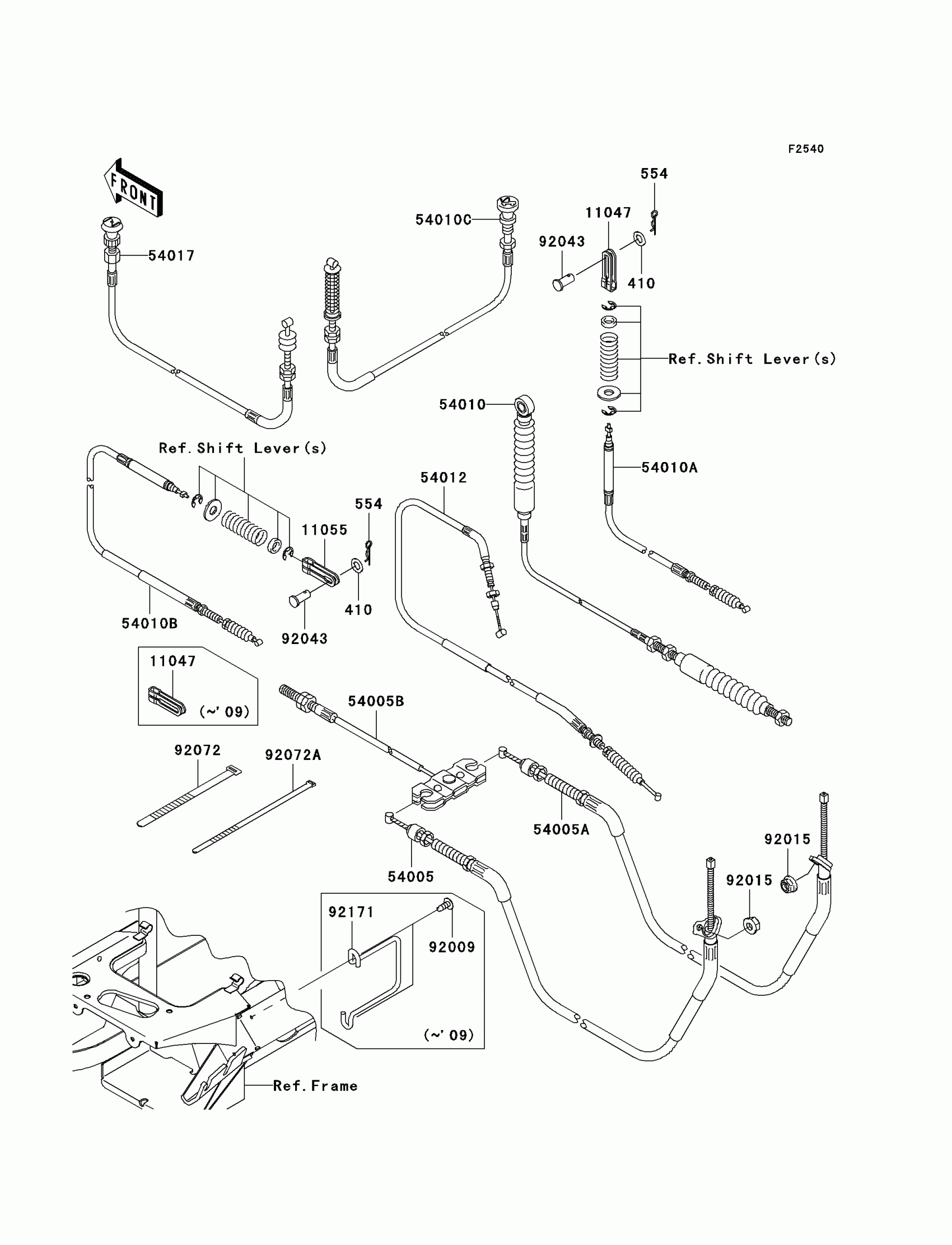

Kawasaki Mule 610 4x4 Realtree APG HD Cables Diagram

Description

Price

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

11055

BRACKET,DIFF LOCK

11055-7505

$9.28

54005

CABLE-BRAKE,PARKING,LH

54005-0007

Unavailable

54005A

CABLE-BRAKE,PARKING,RH

54005-0008

Unavailable

54005B

CABLE-BRAKE,PARKING,FR

54005-1198

$10.30

54010

CABLE,SHIFT CONTROL

54010-0014

$171.91

54010A

CABLE,2-4WD

54010-0015

$51.08

54010B

CABLE,DIFF LOCK

54010-0017

$89.58

54010C

CABLE,HOOD

54010-0026

Unavailable

54012

CABLE-THROTTLE

54012-0127

$47.86

54017

CABLE-STARTER

54017-0012

$59.96

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92043

PIN,6X11

92043-092

$4.69

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=188

92072-1239

$1.73
